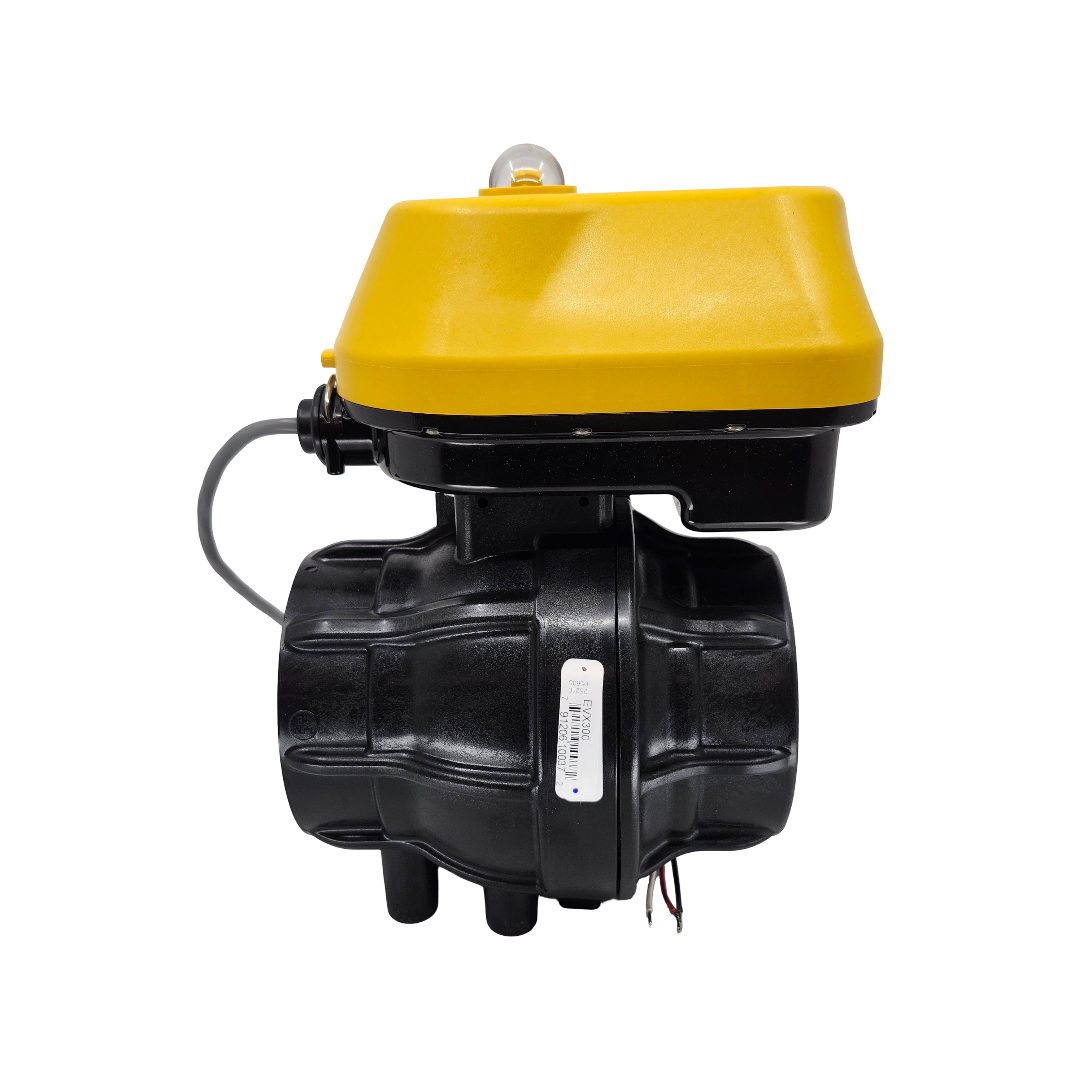

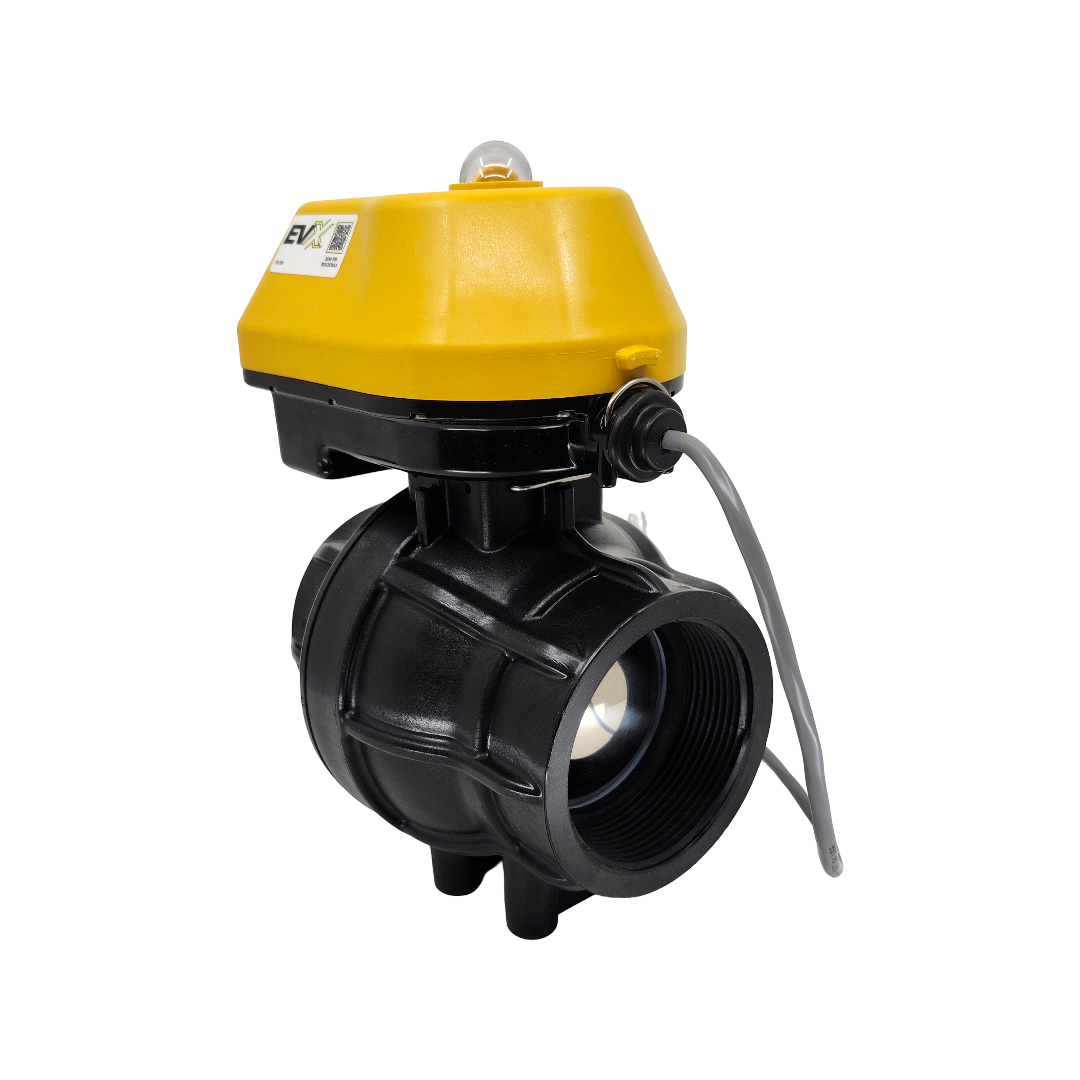

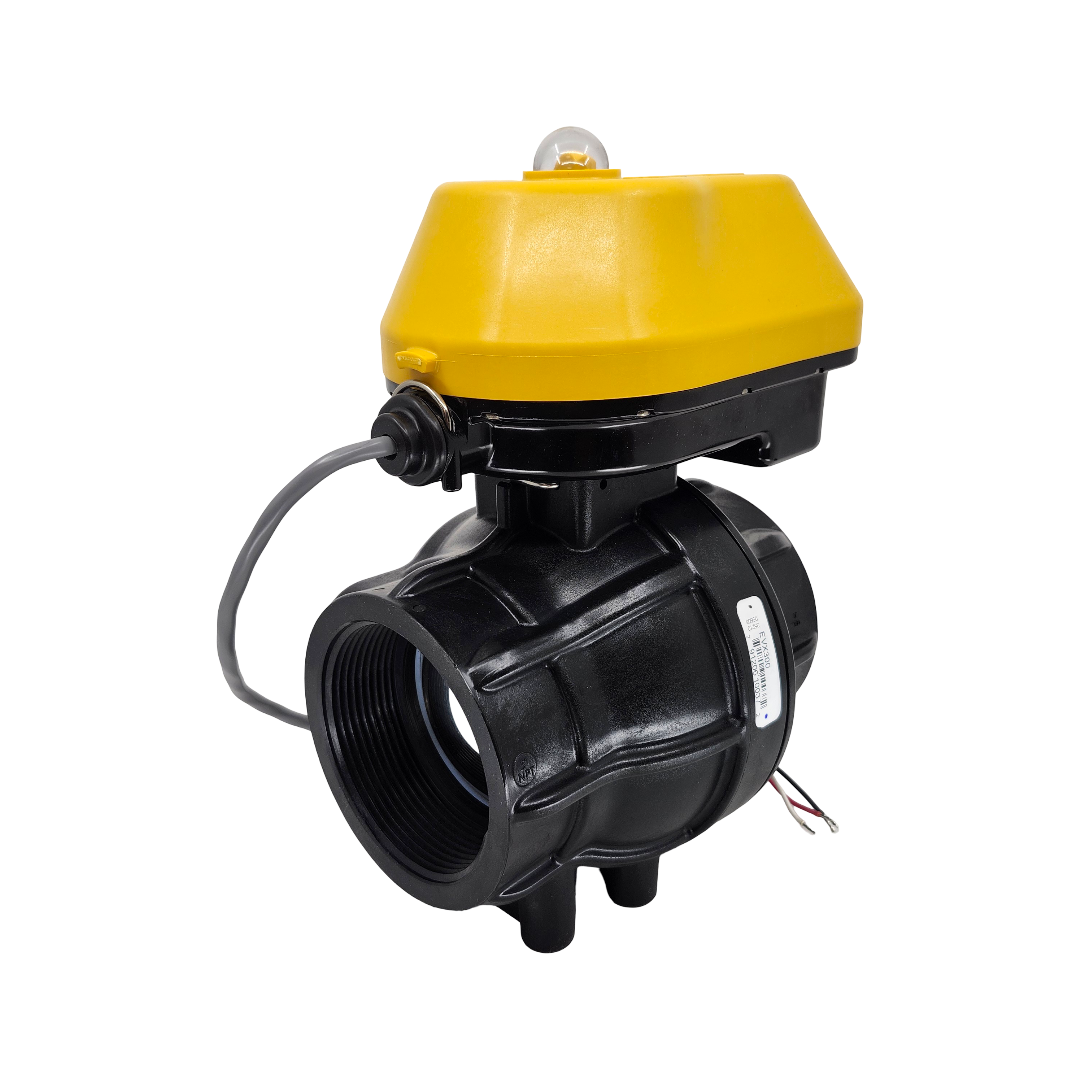

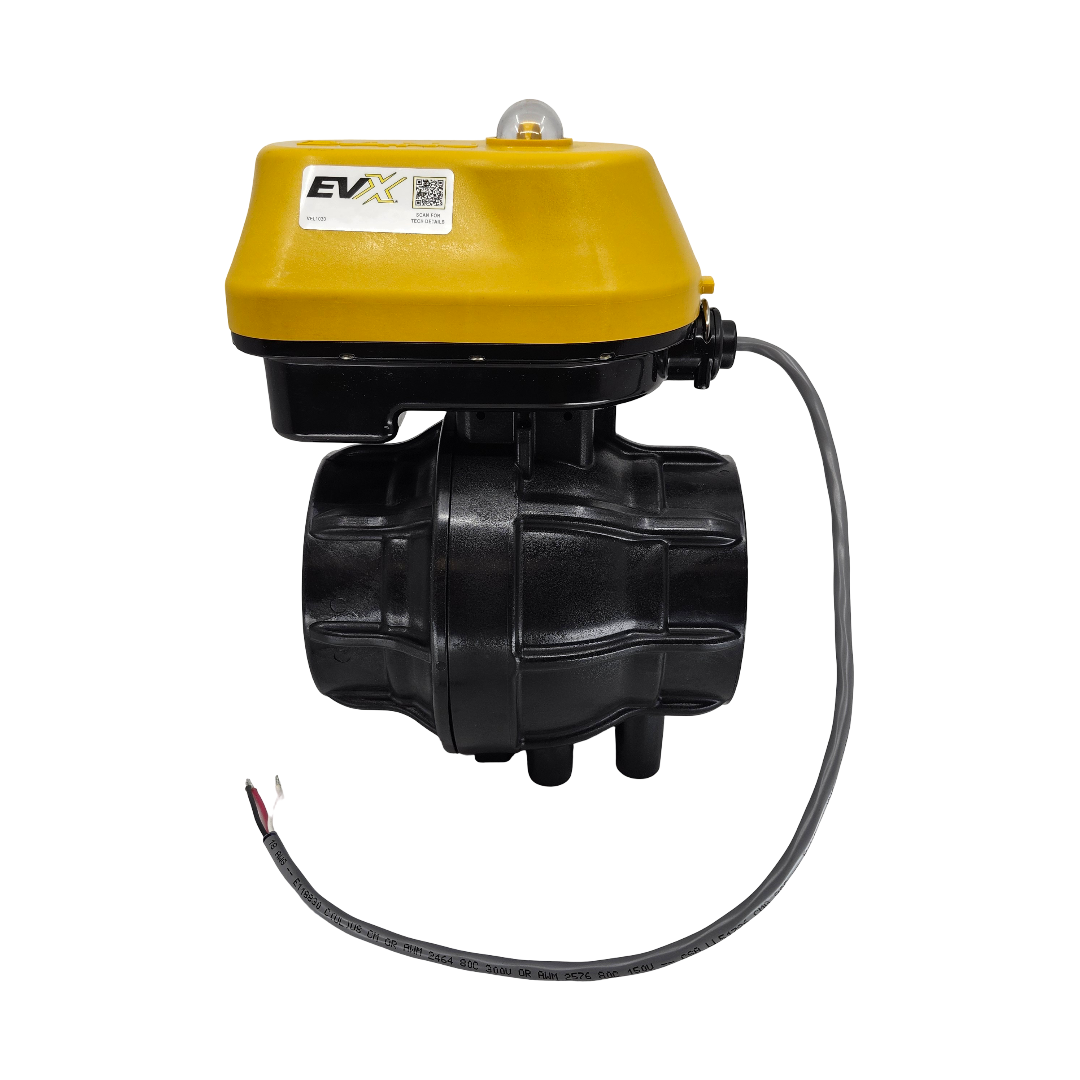

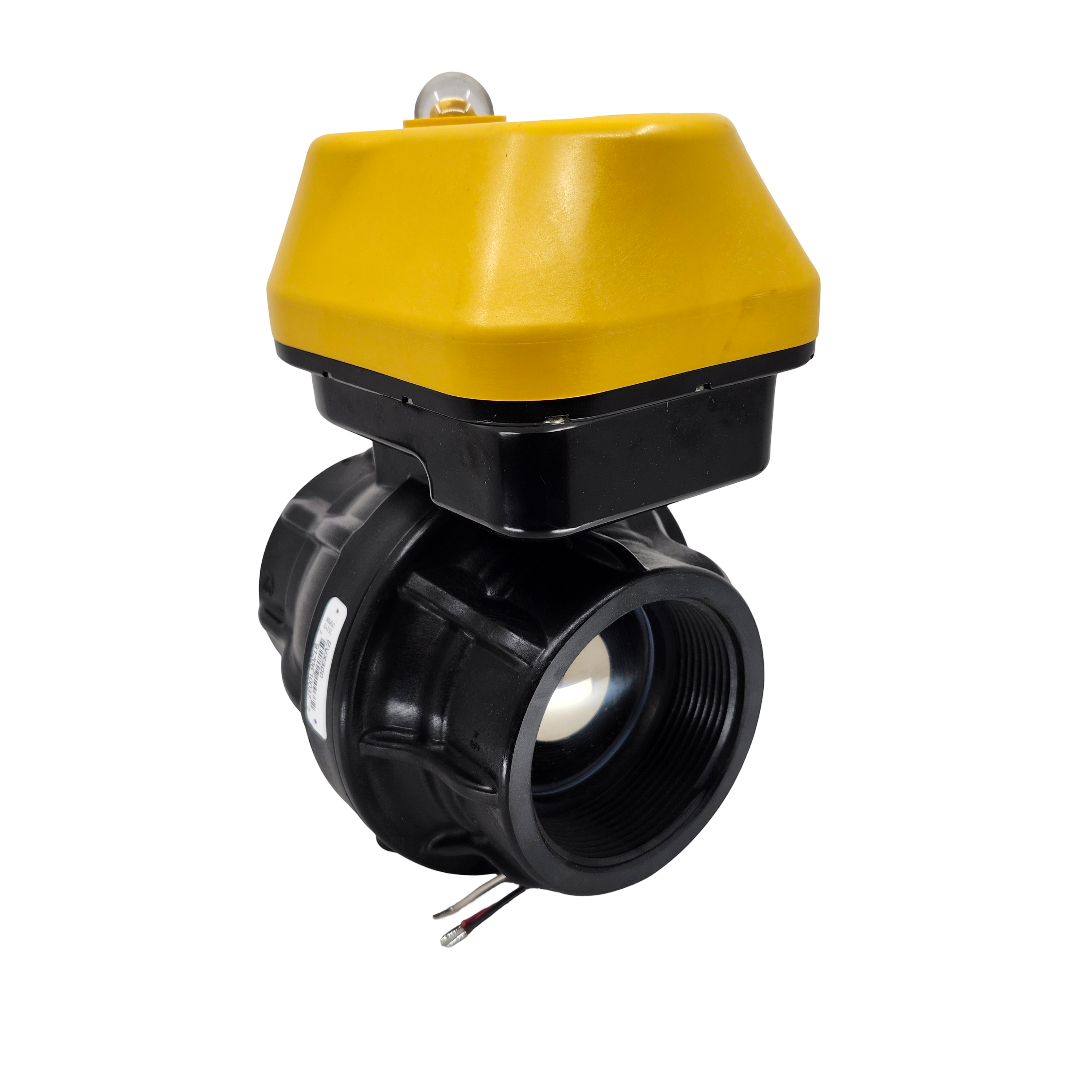

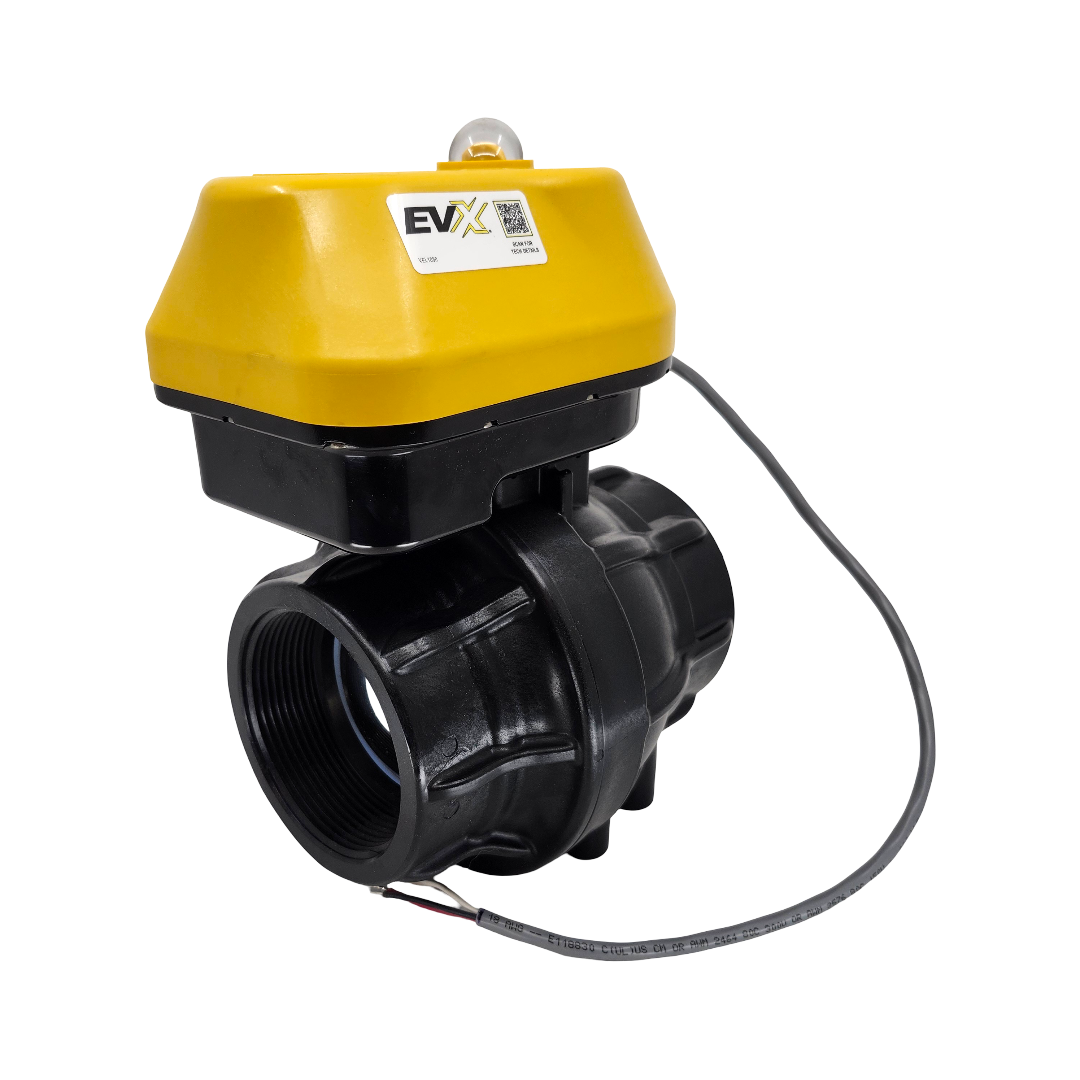

Banjo 3 Inch Full Port EVX Electric On/Off Valve, 12 Volt, 3 Wire - EVX300

Banjo 3 Inch Full Port EVX Electric On/Off Valve, 12 Volt, 3 Wire - EVX300

12-volt DC operated
Open/closed indicator
ON/OFF has 3 second response
Regulating has 4 second response
Open / Close verification available
IP68 waterproof
-0 to 150F (-18 to 65C) operating
-67 to 221F (-55 to 105C) storage
Actuator rated to 500,000 cycles
Valve rated to 50,000 cycles leak-free
Maximum operatoing pressure 150 psi

MATERIALS
316 stainless steel ball & stem
Poly ball available
Stainless steel hardware
Fiberglass reinforced polypropylene
Zinc alloy lower actuator housing
PTFE seats
FKM stem seals
