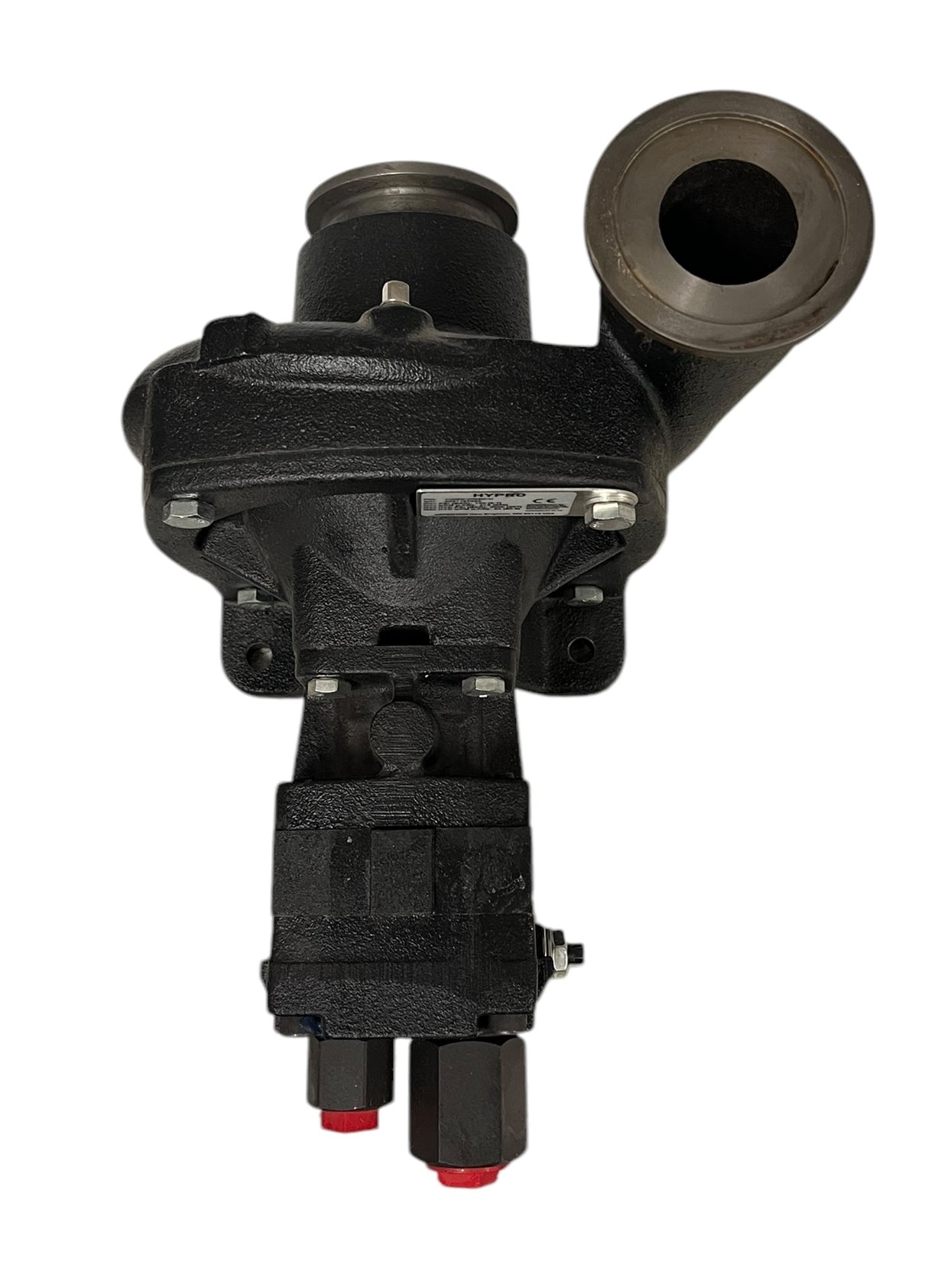

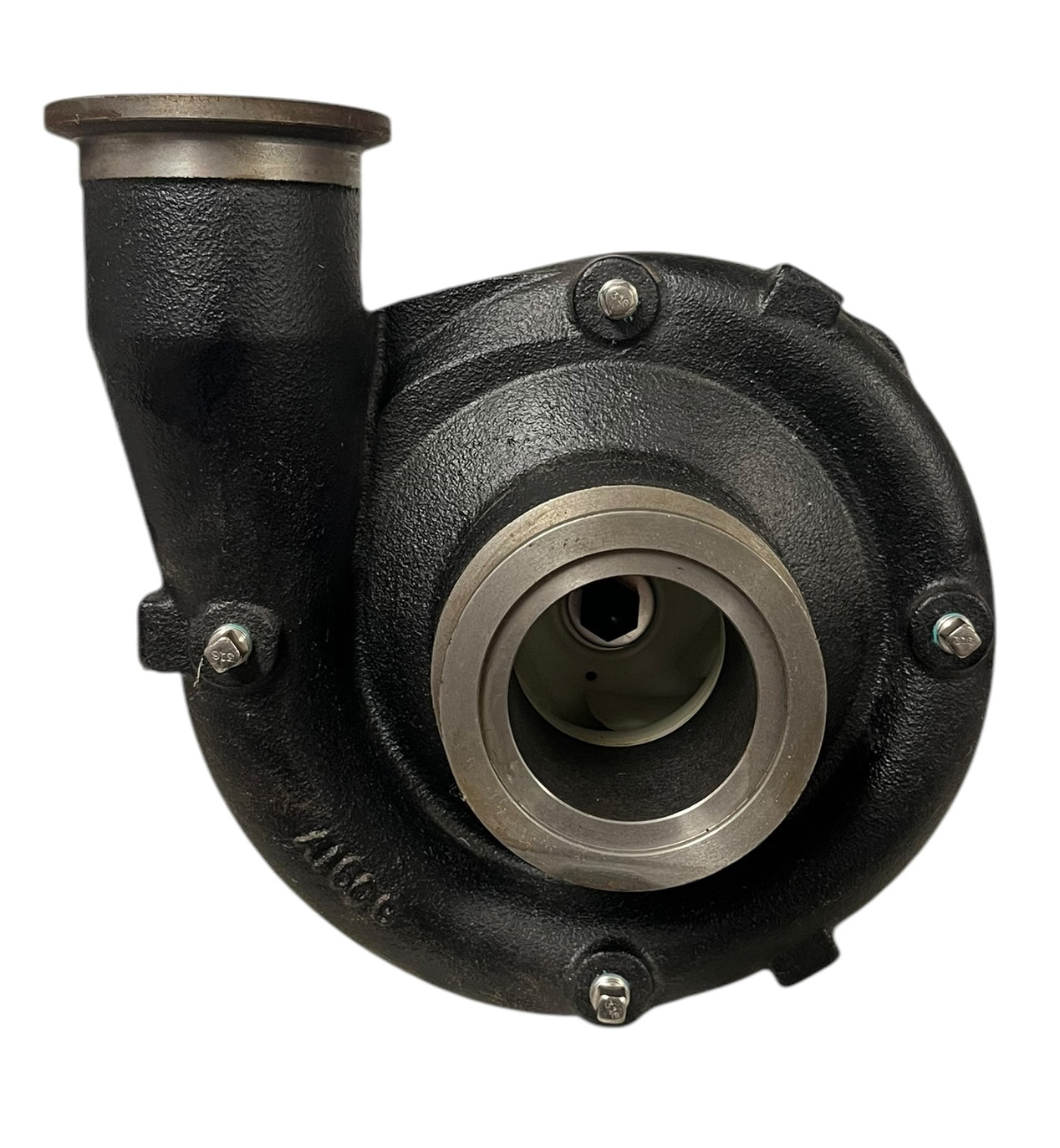

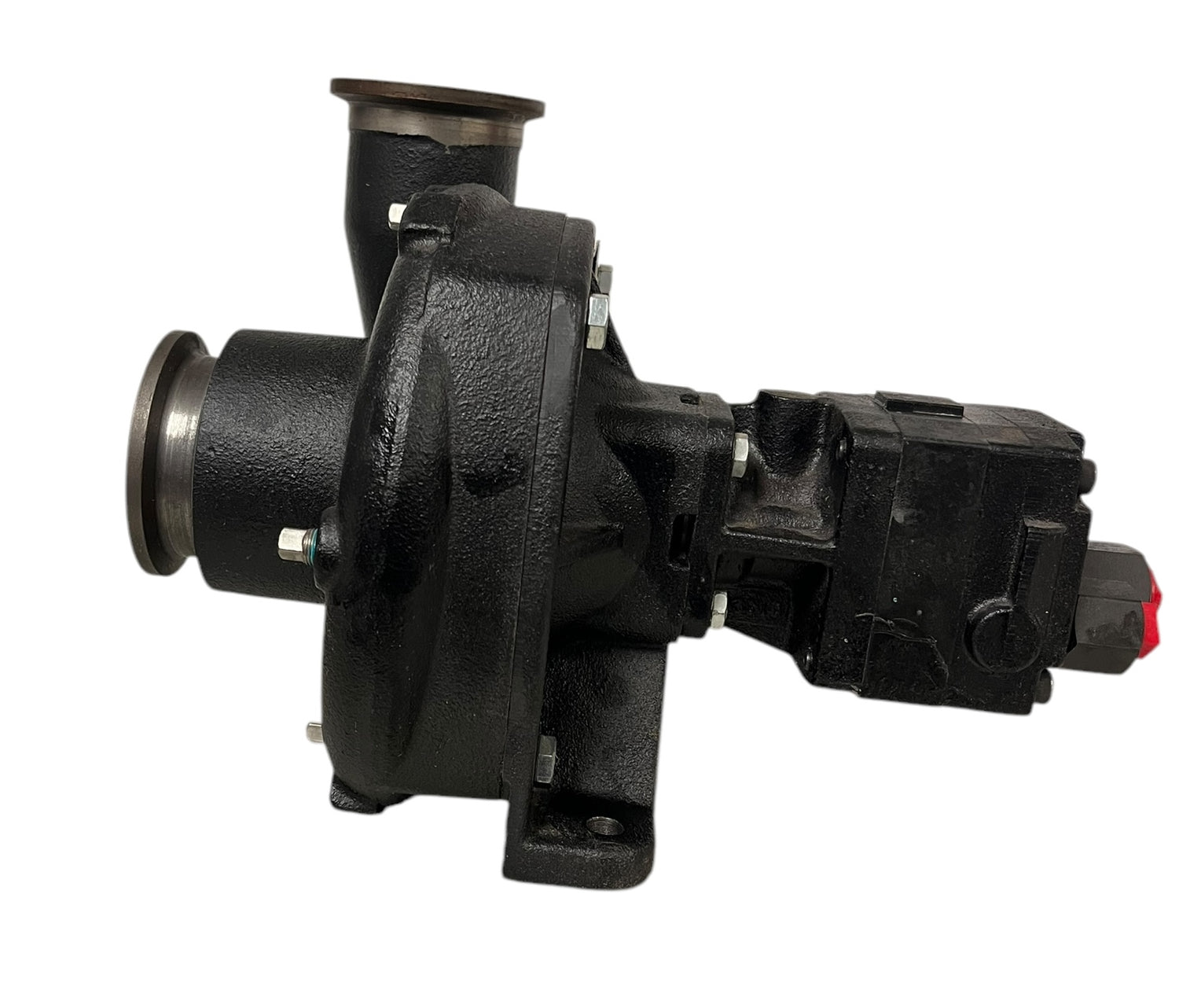

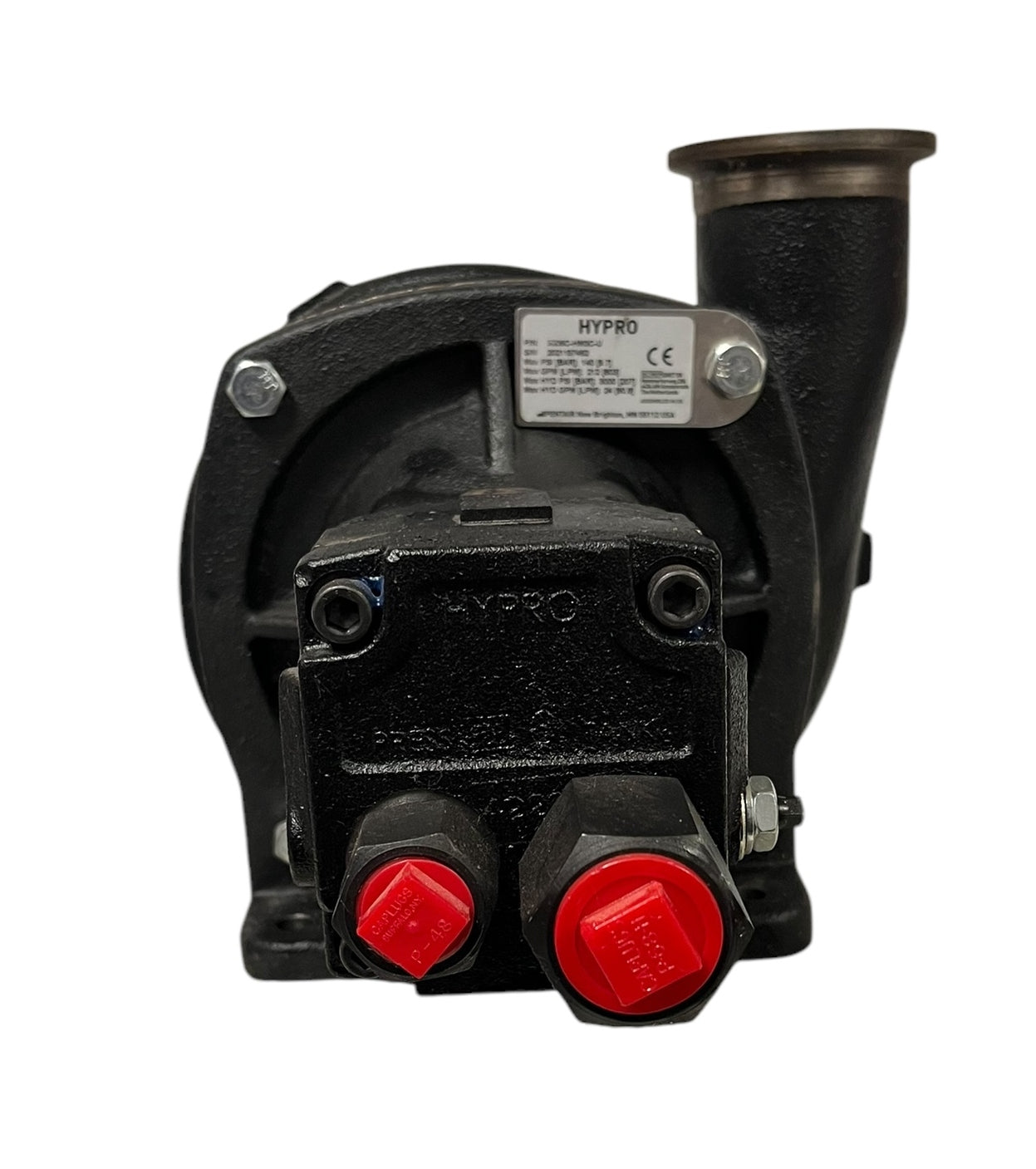

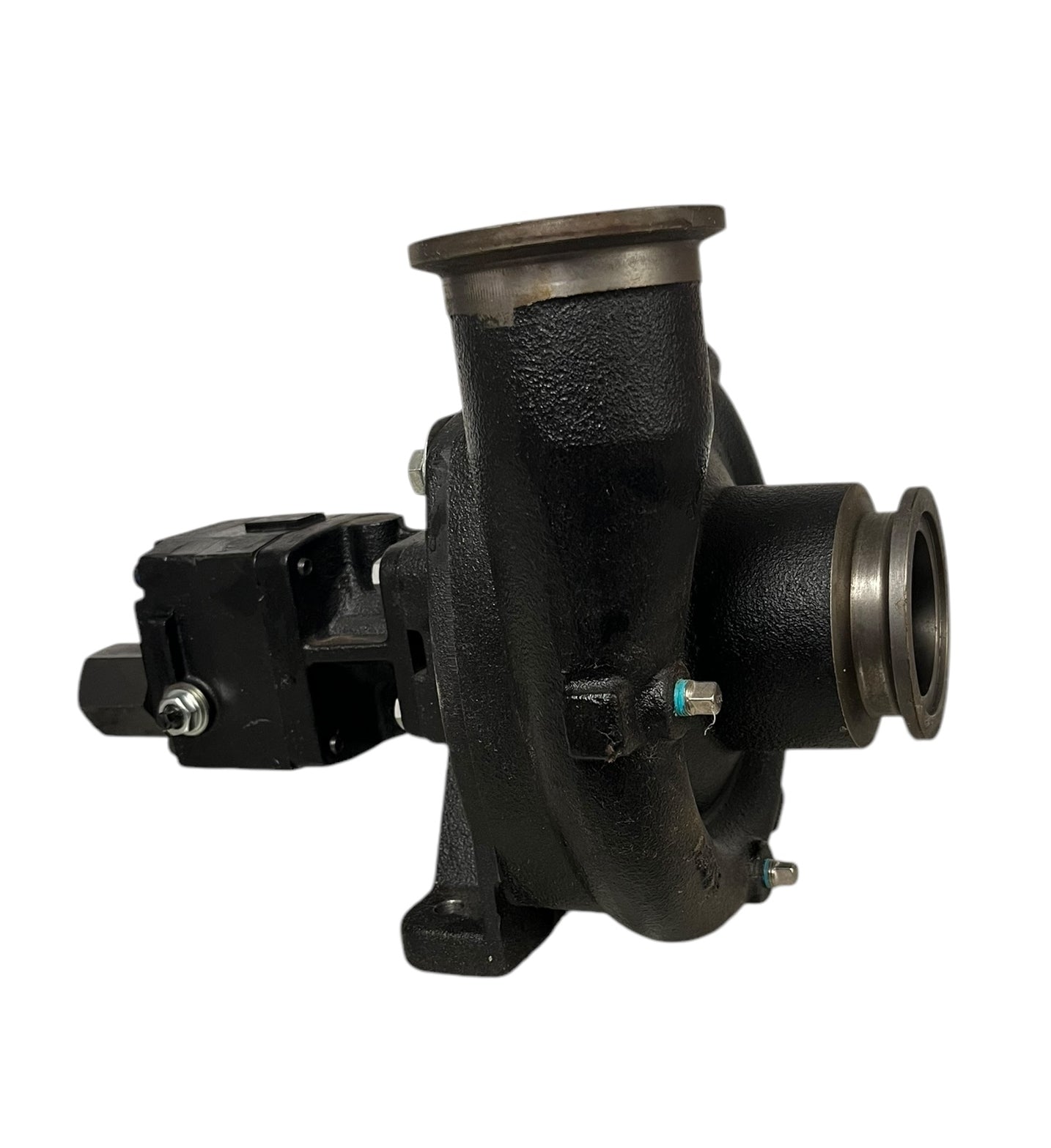

Hypro Cast Iron Centrifugal Pump with Universal Flange 220 X 220 - 9306C-HM3C-U

Hypro Cast Iron Centrifugal Pump with Universal Flange 220 X 220 - 9306C-HM3C-U

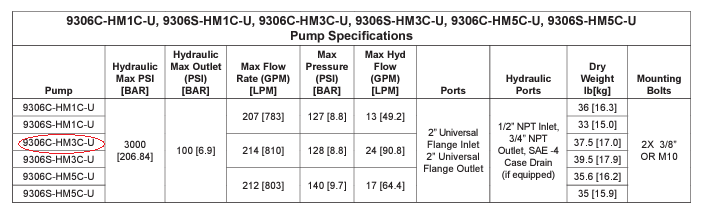

Features:

• Hydraulic motor drive (for open center, closed center and load-sensing systems)
• Port Sizes: 2" NPT Inlet, 1 1/2" NPT Outlet
• Max fluid temperature: 140°F/60°C
• Housing: Cast Iron
• Impeller: Nylon (GTX available)
• Motor: internal gear gerotor
• Hydraulic Ports: 1/2" NPT inlet, 3/4" NPT outlet
• Pump Seals: Viton/ceramic standard, Life Guard silicone carbide (B) and Buna-N ceramic available
• Hydraulic Motor Seal: Double-lip Teflon and case drain available
• Max Motor PSI: 3000
• 220 x 220 (U) Universal Flange
• Max GPM: 214
• Max PSI: 135
• Max Hyd. GPM: 24
• Hydraulic Selection System: Open/Closed
