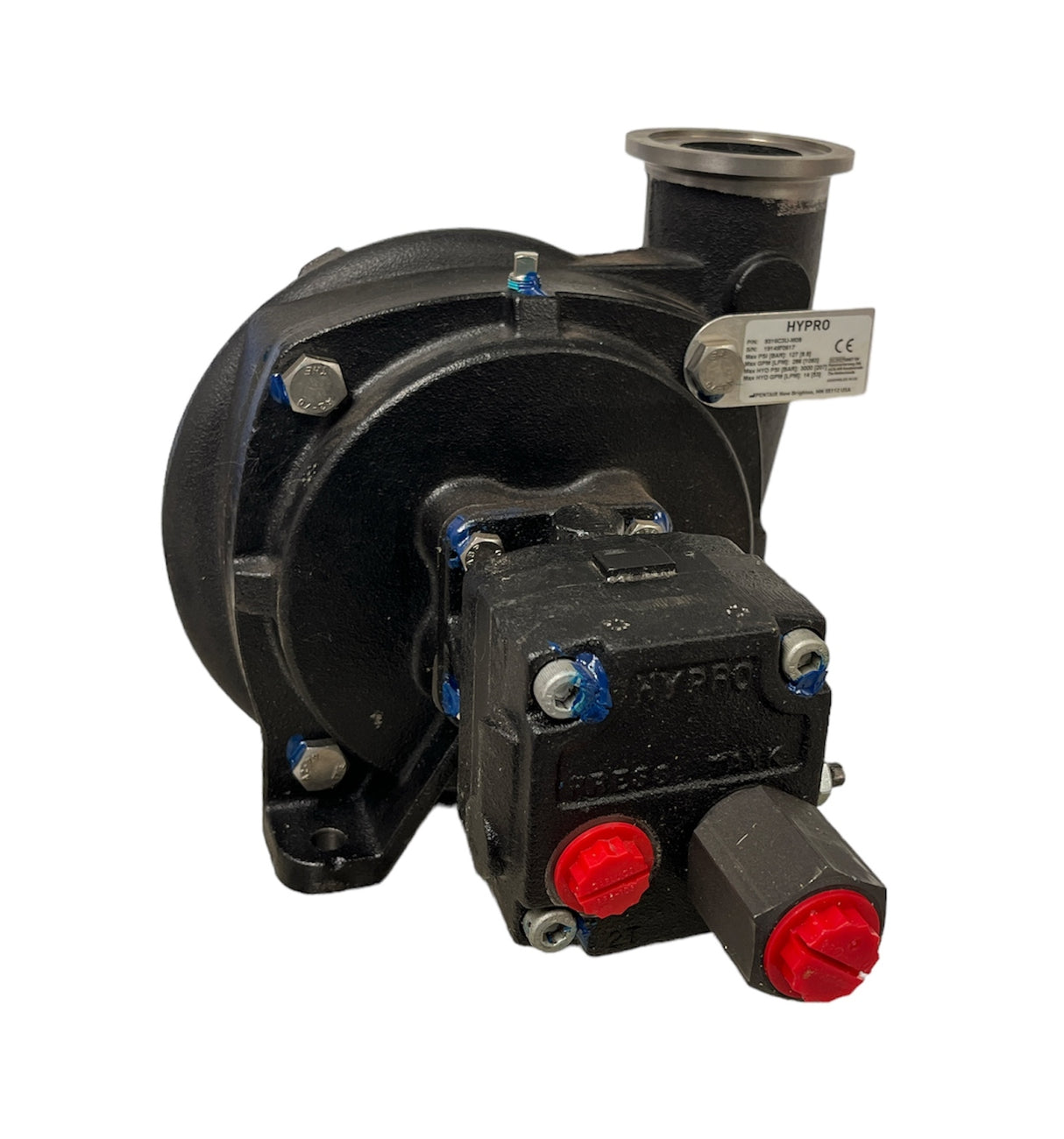

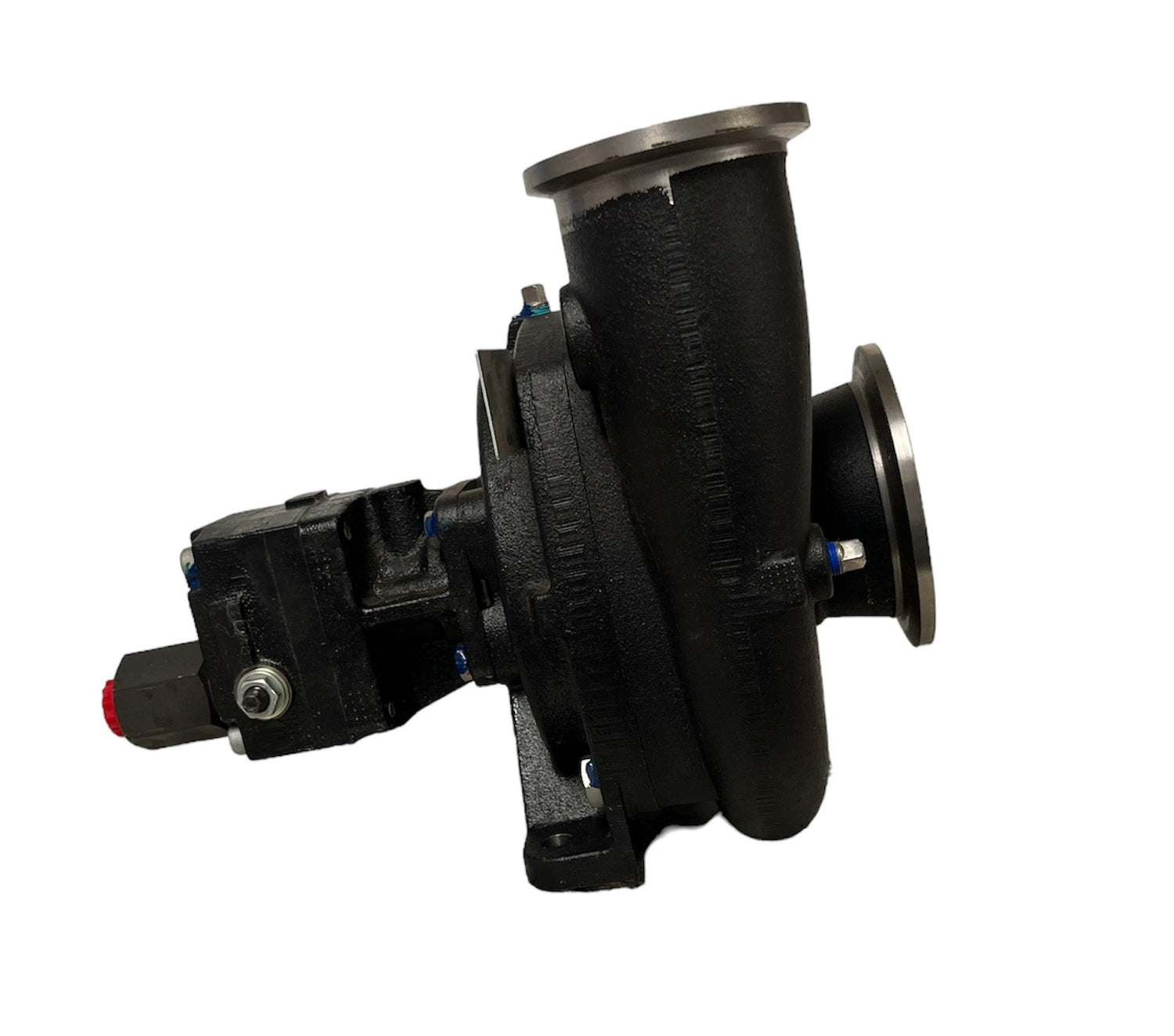

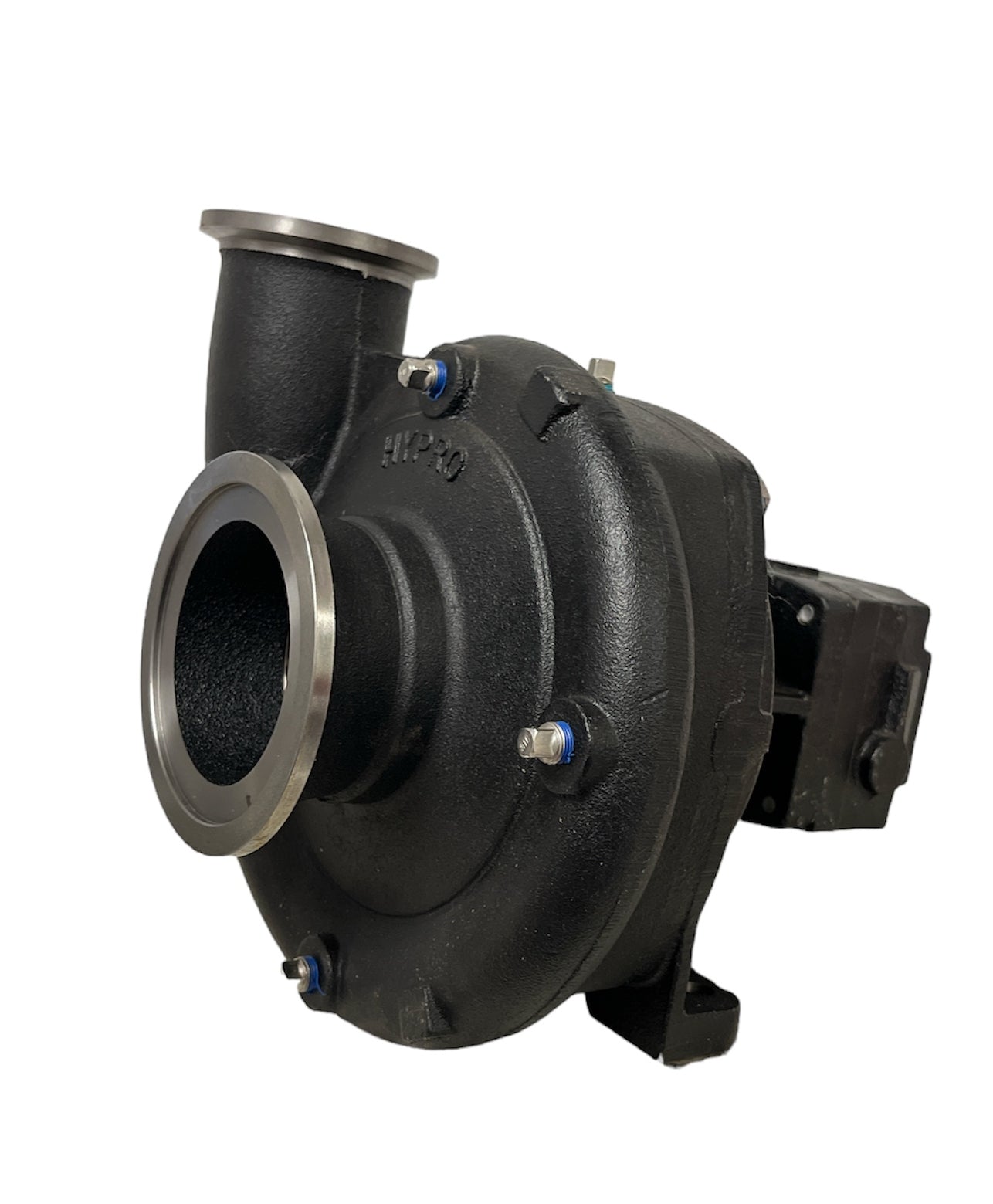

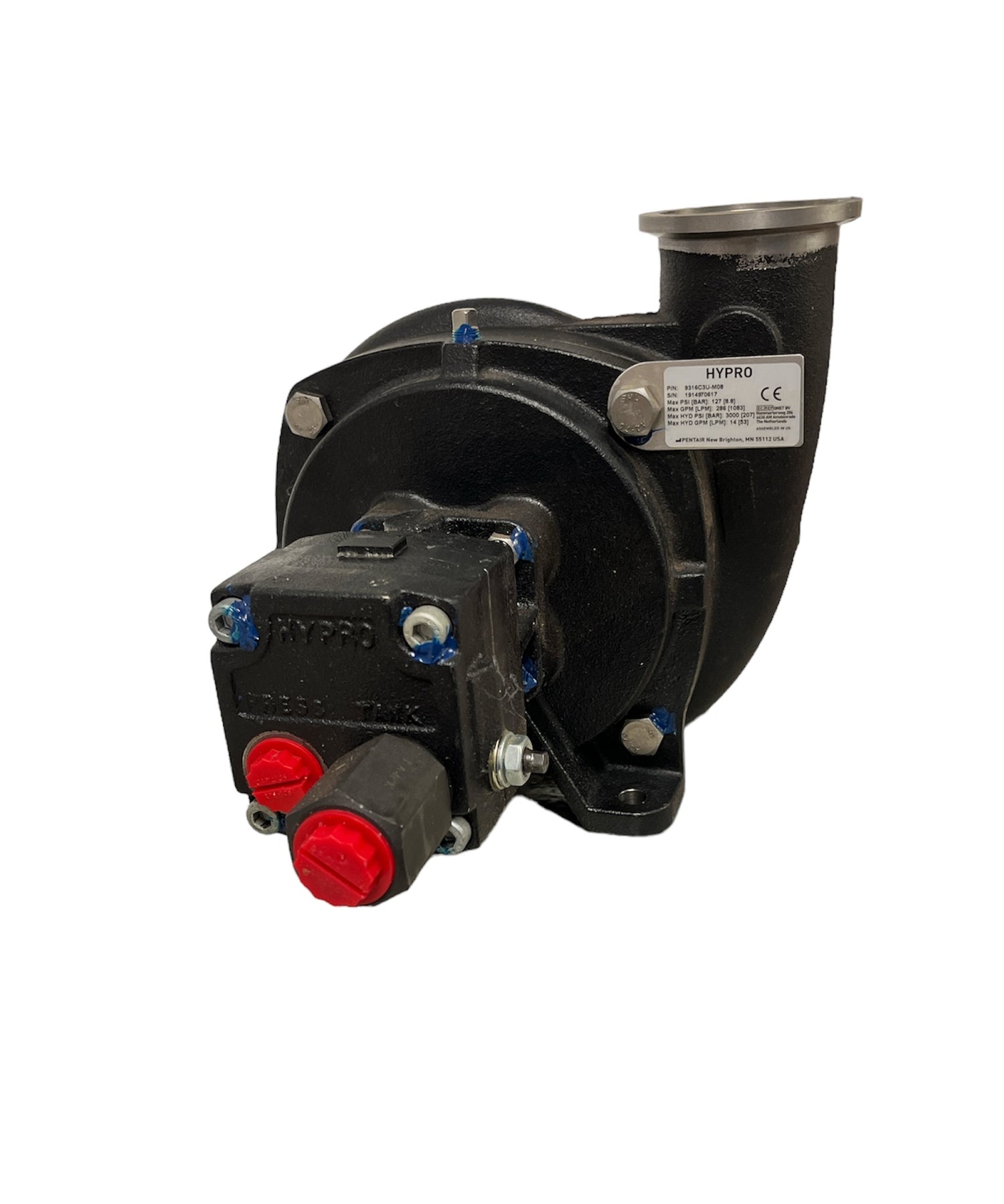

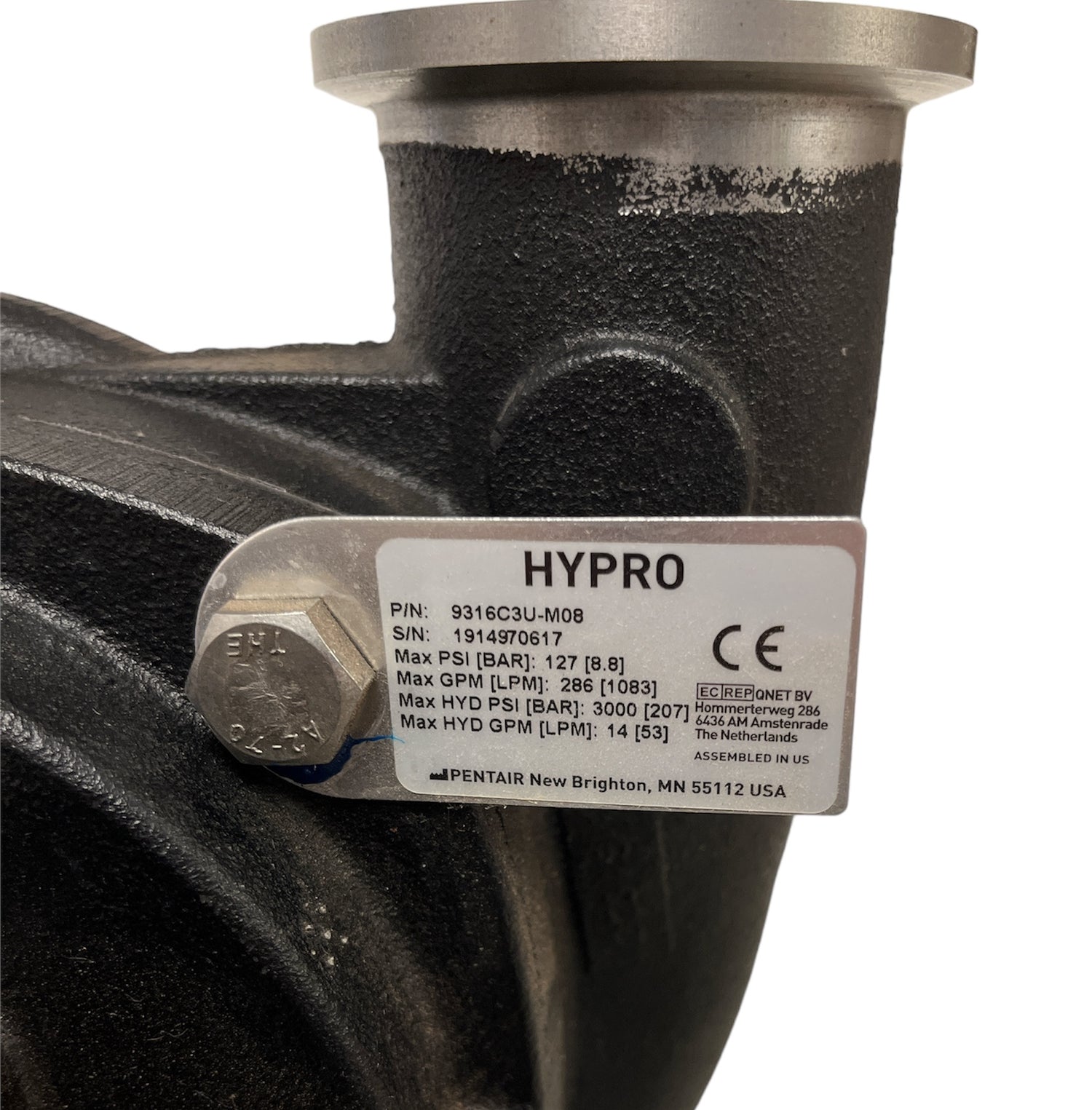

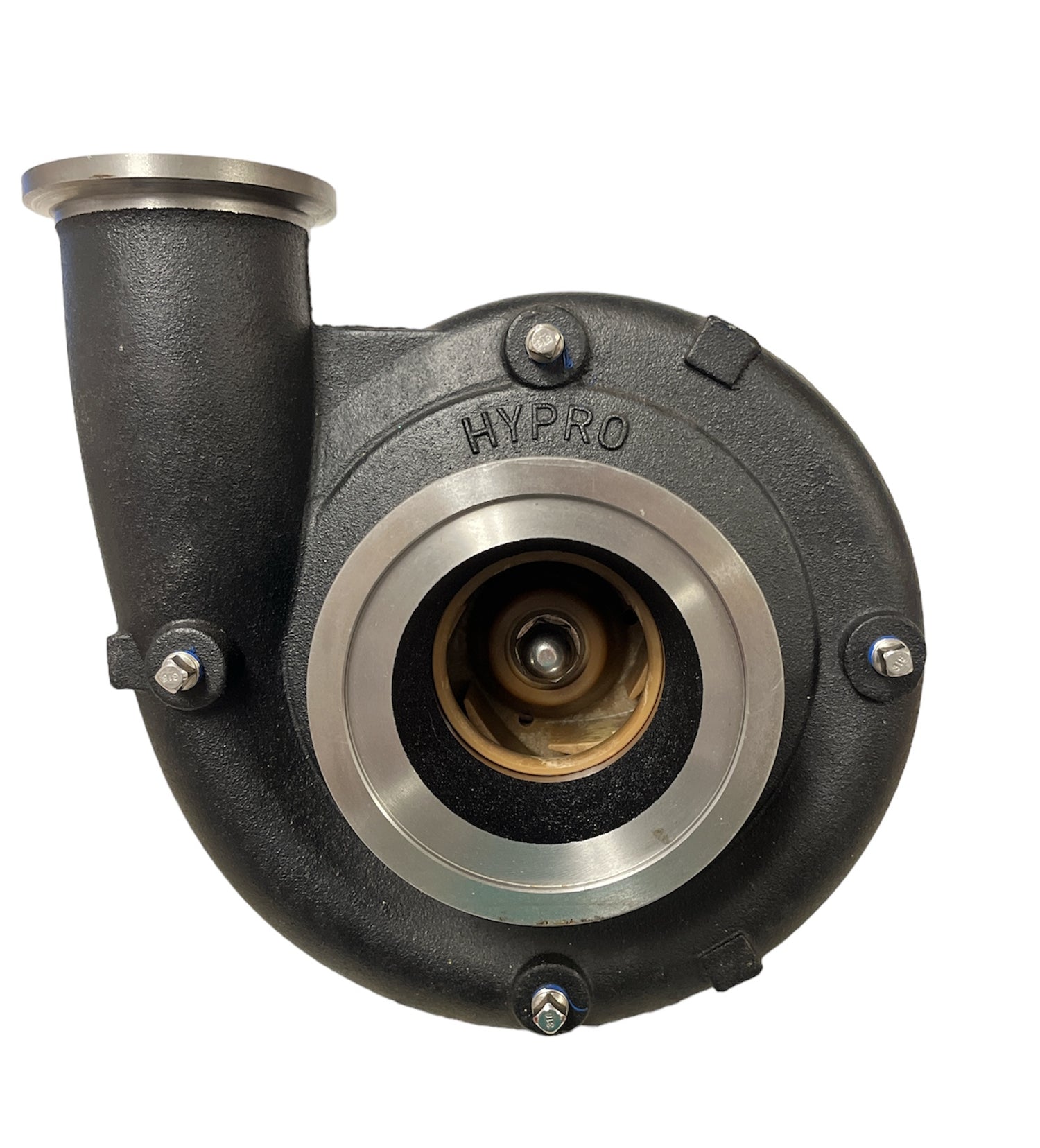

Hypro ForceField Cast Iron Hydraulic Driven Centrifugal Pump - 9316C3U-M08

Hypro ForceField Cast Iron Hydraulic Driven Centrifugal Pump - 9316C3U-M08

Features:

• Port Sizes: 300 x 220 Universal Flange
• Seal Material: ForceField Wet Seal
• Hydraulic Selection System: Open/Closed
• Hydraulic motor ports: SAE -8 inlet, SAE -10 outlet
• ForceField Technology is a superior wet seal technology that provides the ultimate protection for the mechanical seal
• Protects the mechanical seal against common failures related to dry run and chemical bonding by using a barrier fluid to keep it cool and lubricated
• Actively maintains a pressure differential between the barrier fluid and the pumping solution, which results in longer life
• Flows up to 286 GPM (1083 LPM) and can produce up to 127 PSI (8.8 bar)
• Designed to be a drop-in replacement for standard Hypro hydraulically driven centrifugal pumps
• Current Hypro equivalent pump: 9306C-HM1C-3U
