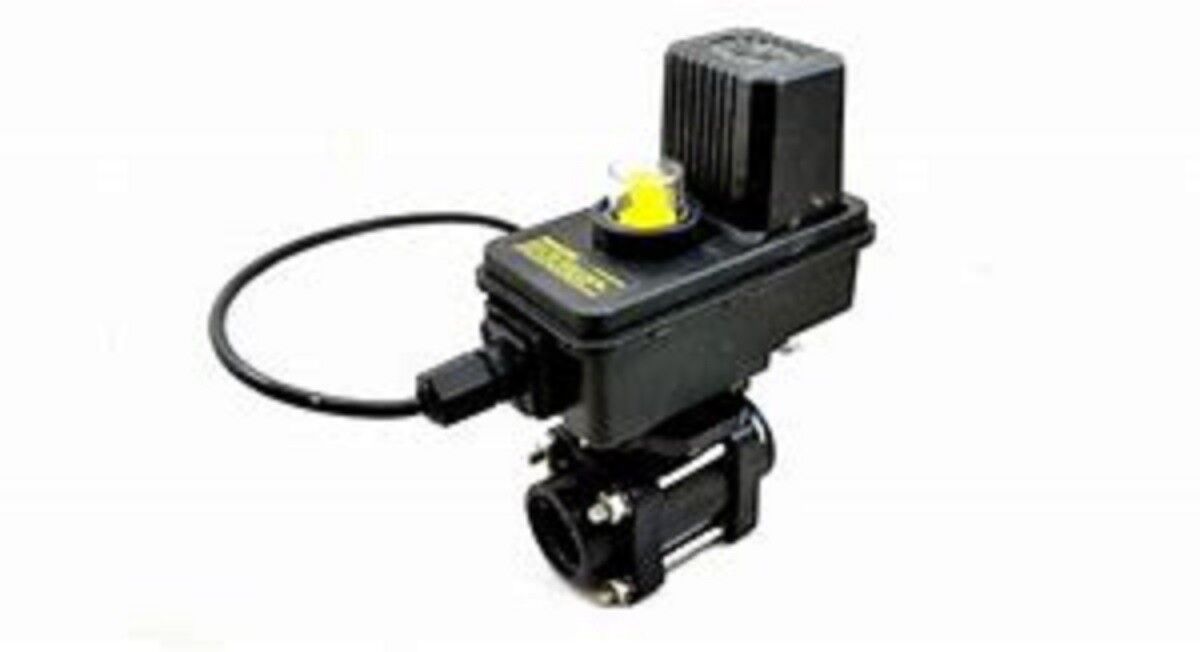

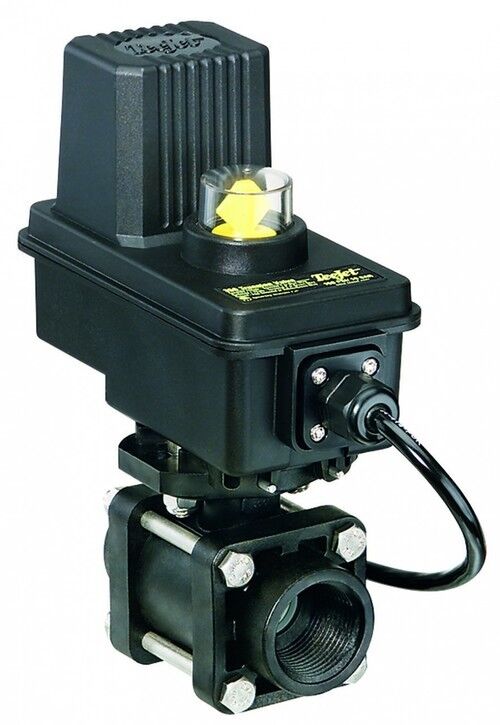

Teejet 1 Inch Electric Shutoff Valve - 344BEC-24-C

Teejet 1" Electric Shutoff Valve - 344BEC-24-C

Features:

• EC = Single Pole Single Throw Switch
• 1" Pipe Thread
• 3 Wire, No Weather Packard Installed
• Positively switched (with 0.5 meter cable)
• 22 RPM with complete shutoff in 0.7 seconds
• Maximum pressure rating is 300 PSI (20 bar)

The flow rate for the 344BEC 2-way valve is 32 GPM (121 I/min) flow rate with a 5 PSI (0.34 bar) pressure drop, 45 GPM (170 I/min) at a 10 PSI (0.69 bar) pressure drop.
