TeeJet Shutoff Valve DPDT Switch 1" for Spra-Coupe - 344BE-24-COB

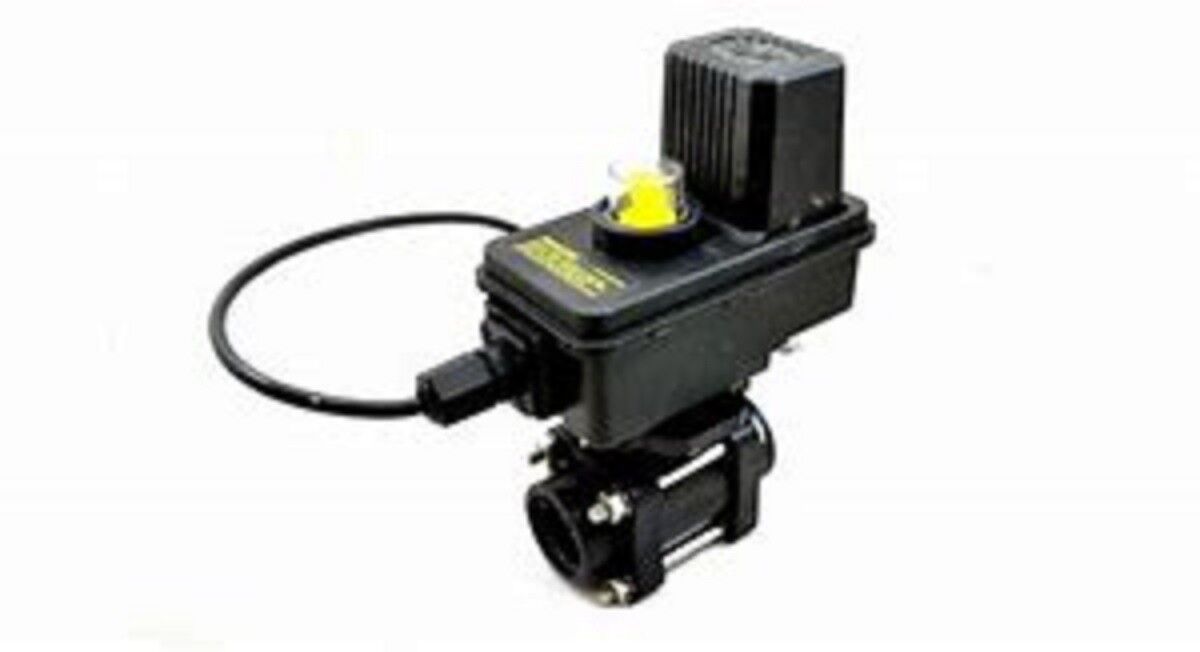

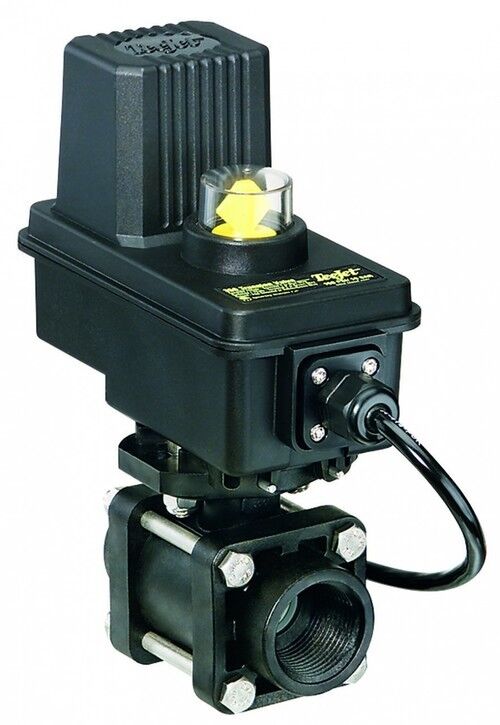

Electric Shutoff Valve. We are using this on the 4000 Series Spra-Coupe, they have Double Throw Double Pole Switches. - 344BE-24-COB

Features:

• 25 rpm, 0.6 second shutoff fully open to close.
• 3 Pin Weather Packard
• 1" inlet/outlets provide quick simple plumbing for a single valve.
• Stainless steel stem with stainless steel ball.
• Maximum pressure rating is 300 psi (20 bar).
• The flow rate for the 344BE 2-way valve is 32 gpm (121 l/min) with a 5 psi (0.34 bar) pressure drop
