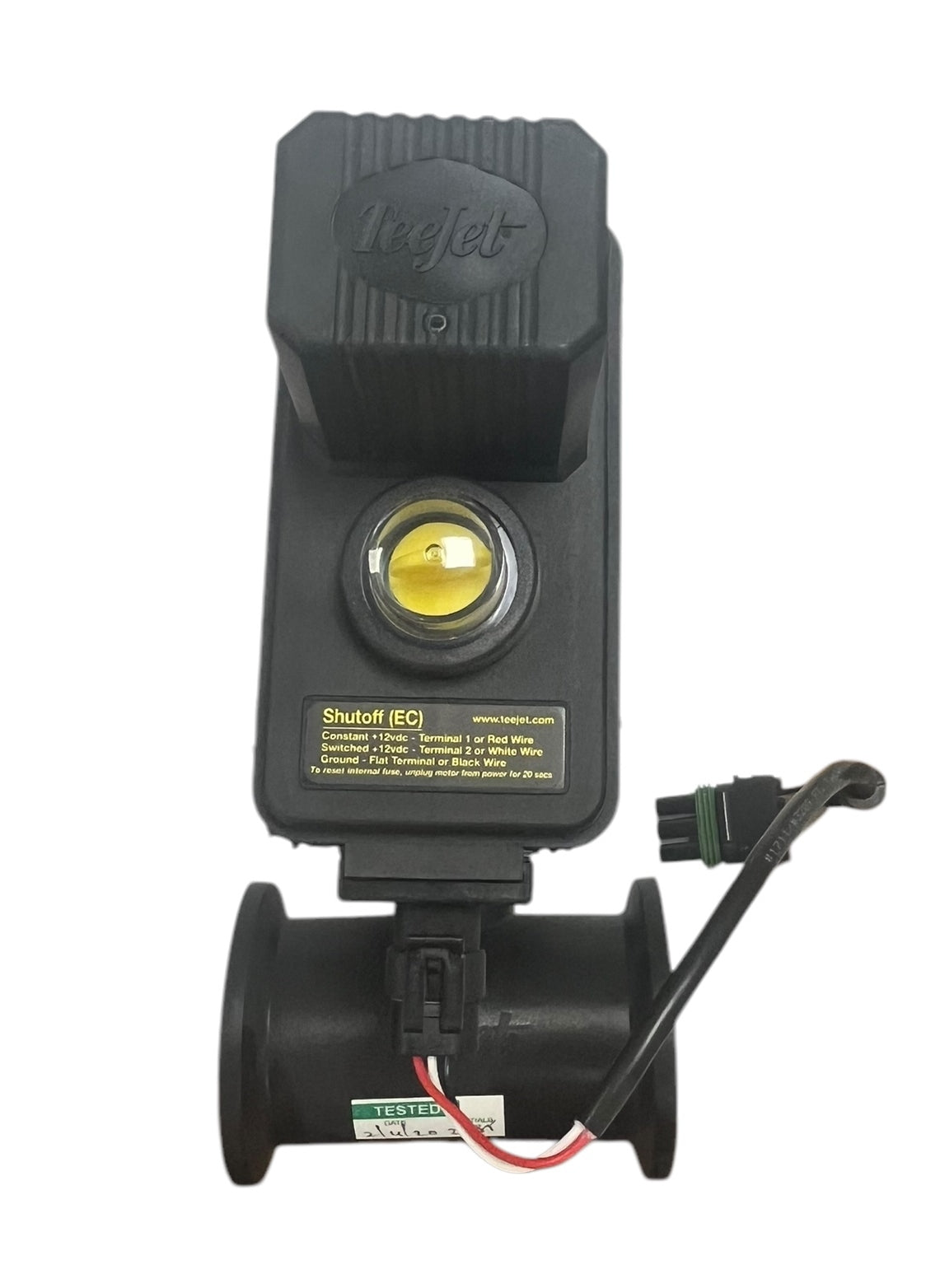

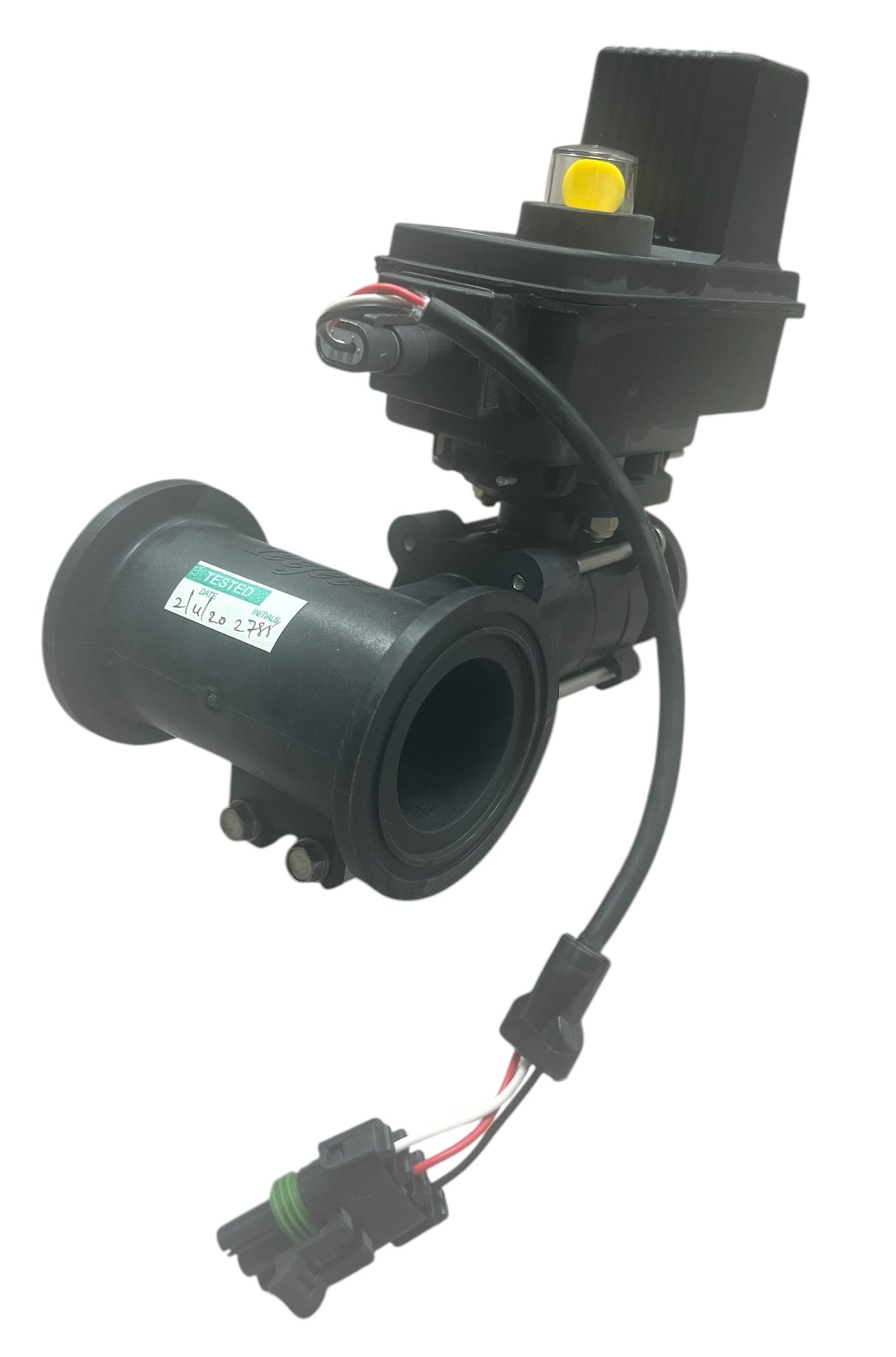

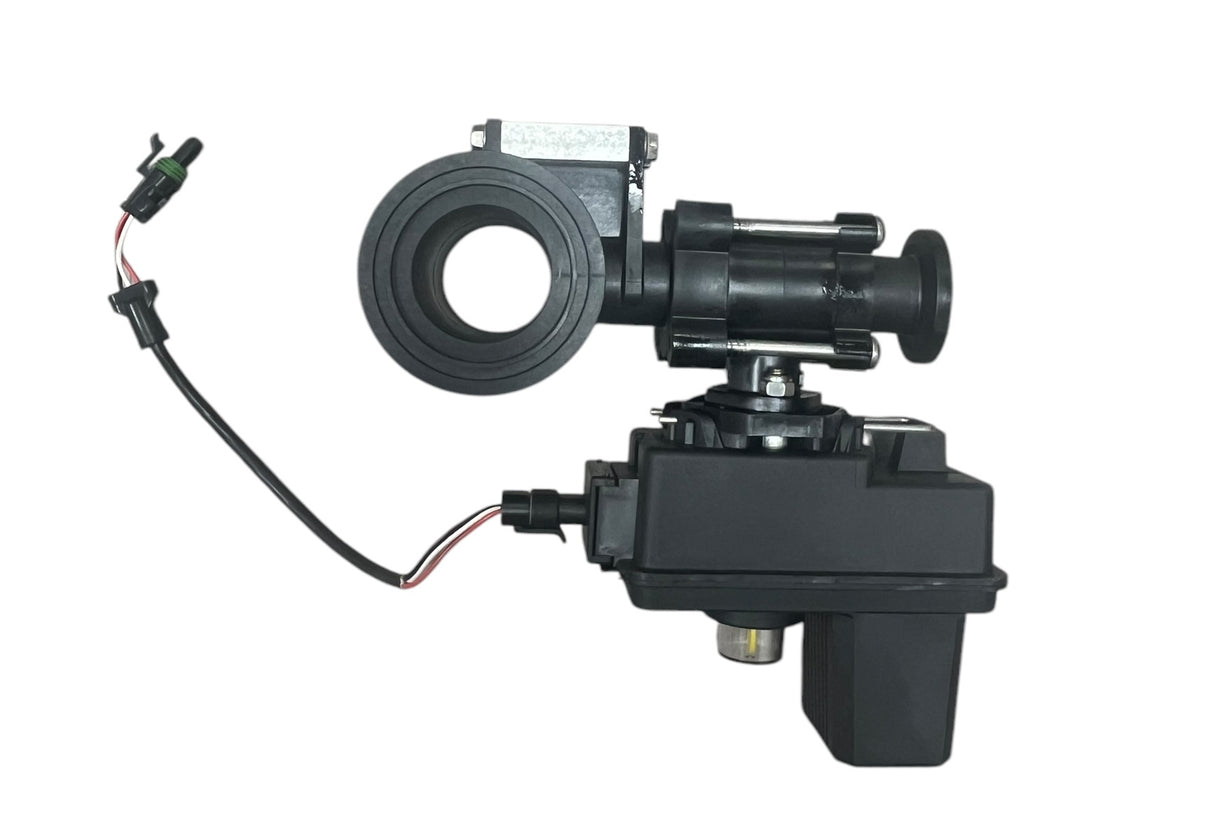

TeeJet Single Boom Electric Shutoff Manifold Valve 450BEC Series - 451BEC-2F-C03PG

TeeJet Single Boom Electric Shutoff Manifold Valve 450BEC Series - 451BEC-2F-C03PG
Single Valve, 2″ SP Inlet Manifold, 1″ Flanged Outlet
22 RPM, 0.7 second shutoff fully open to close
Flexible inlet/outlet connections allow for quick, simple plumbing for as many valves as needed for your sprayer
Stainless Steel stem with optional polypropylene or stainless steel ball
Maximum pressure rating of 200 PSI (14 bar)
The flow rate for the 450 BEC 2-way valve is 32 GPM (121 l/min) with 5 PSI (0.34 bar) pressure drop; 45 GPM (170 l/min) with 10 PSI (0.69 bar) pressure drop (flow rate may vary based on number of valves and inlet size)
Wetted parts are Nylon, Teflon, polypropylene and Viton
