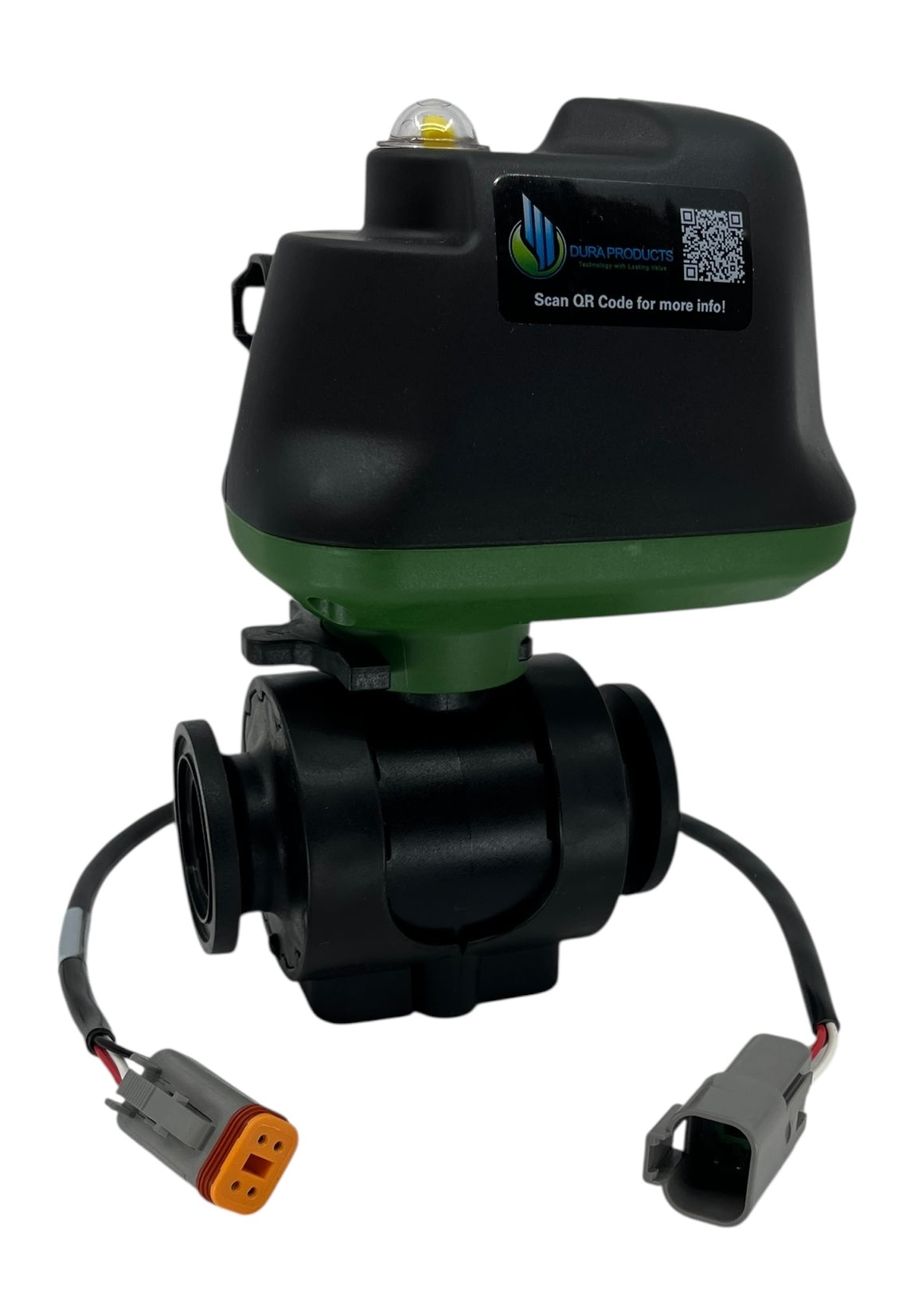

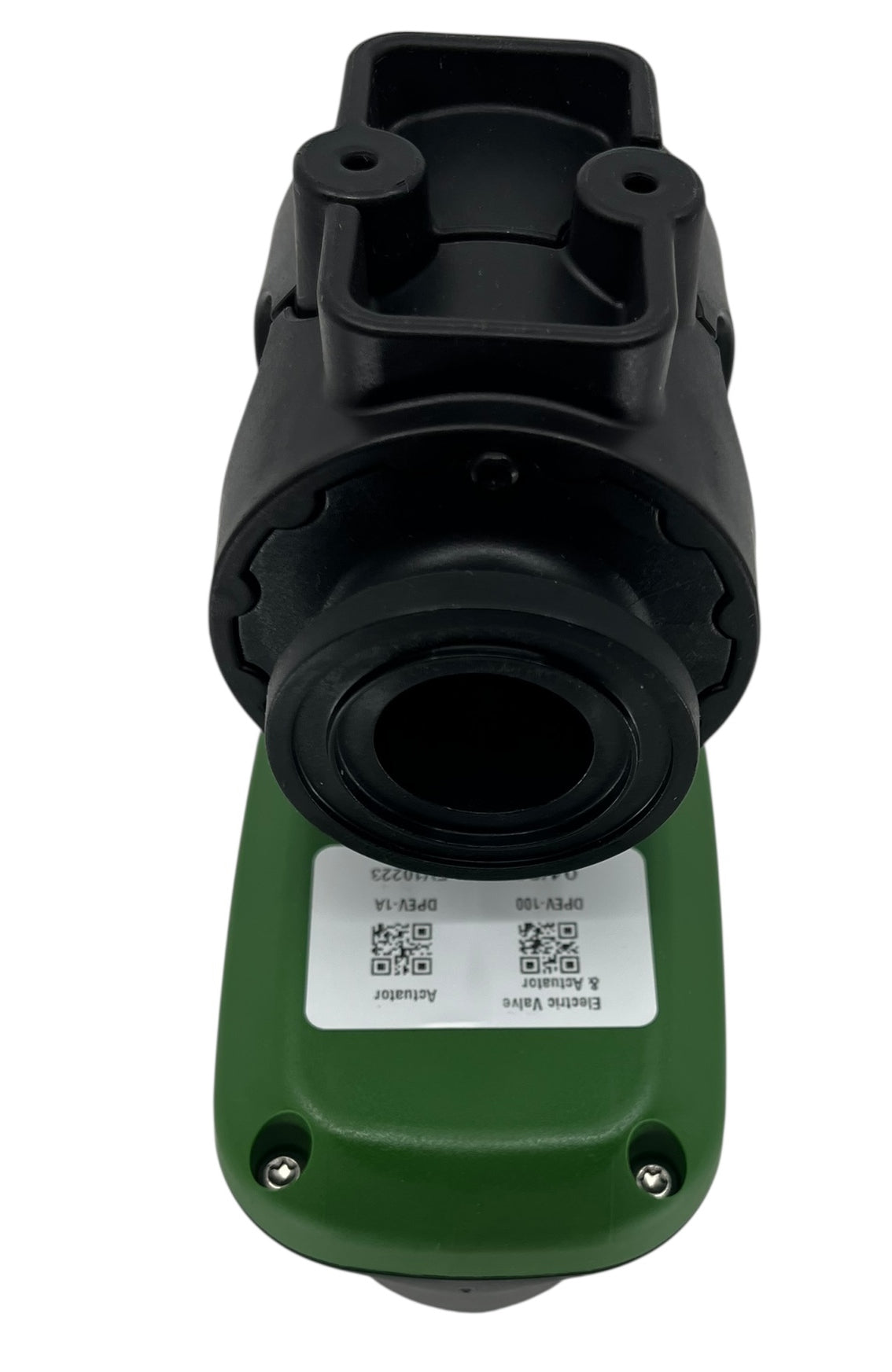

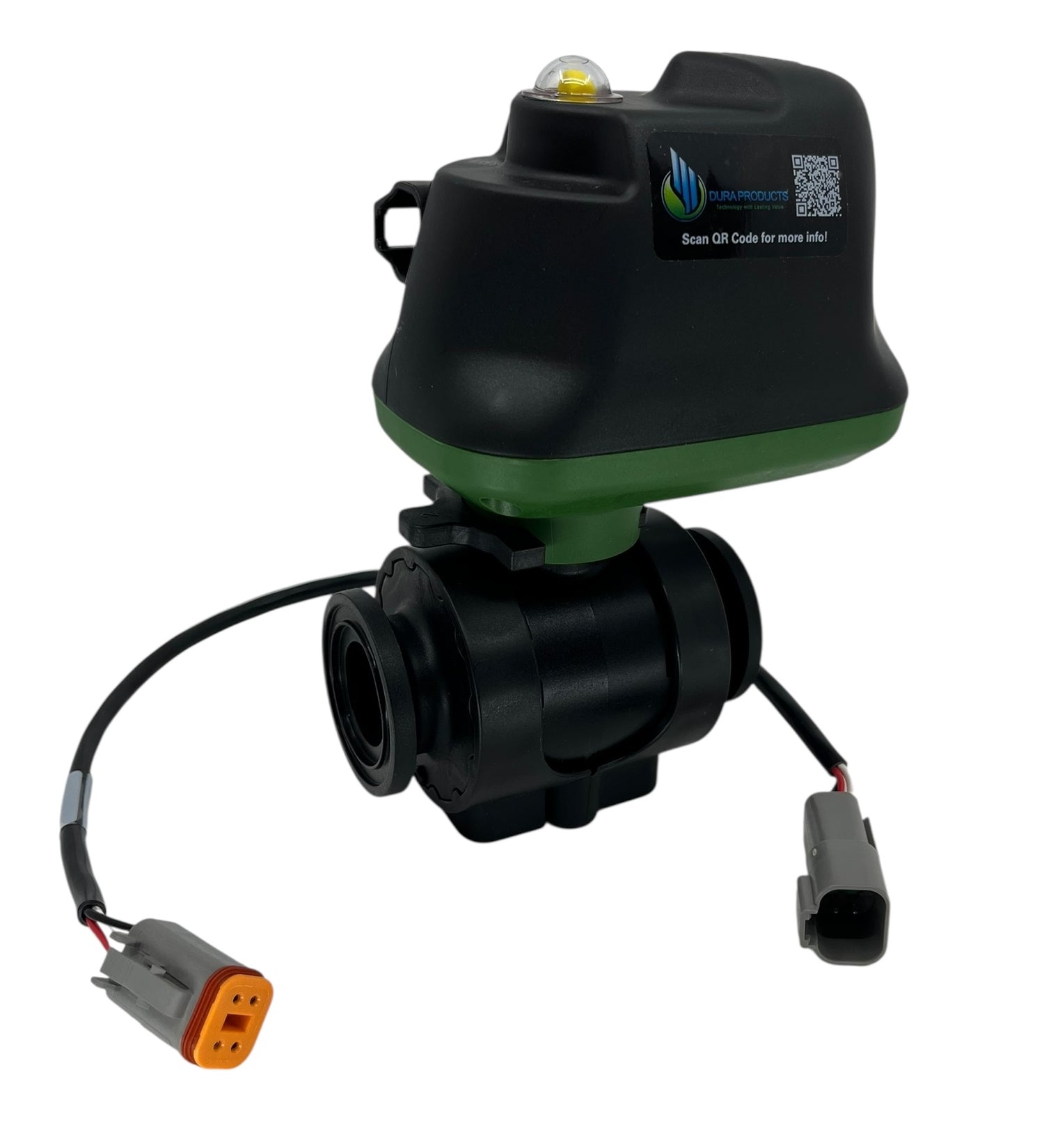

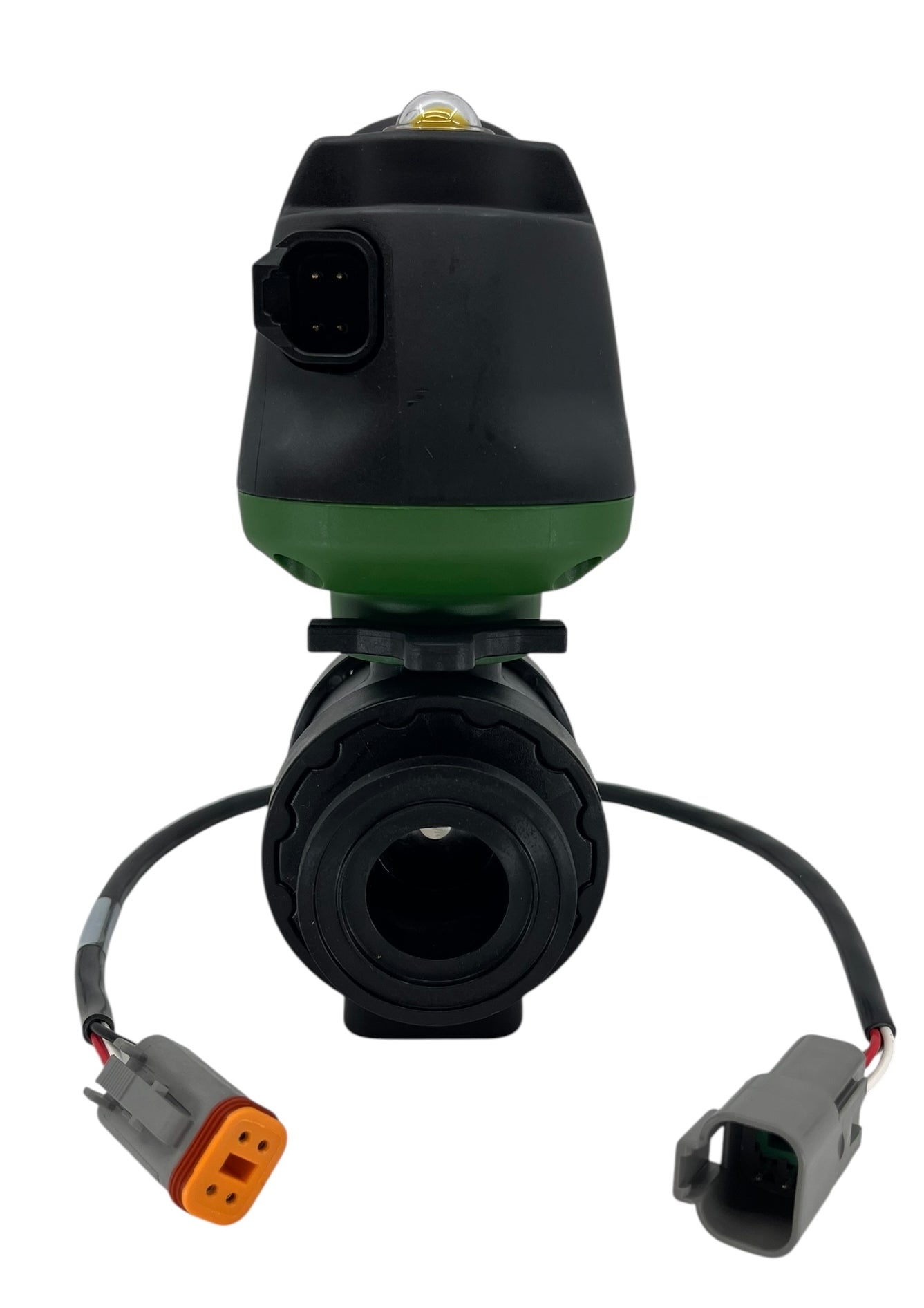

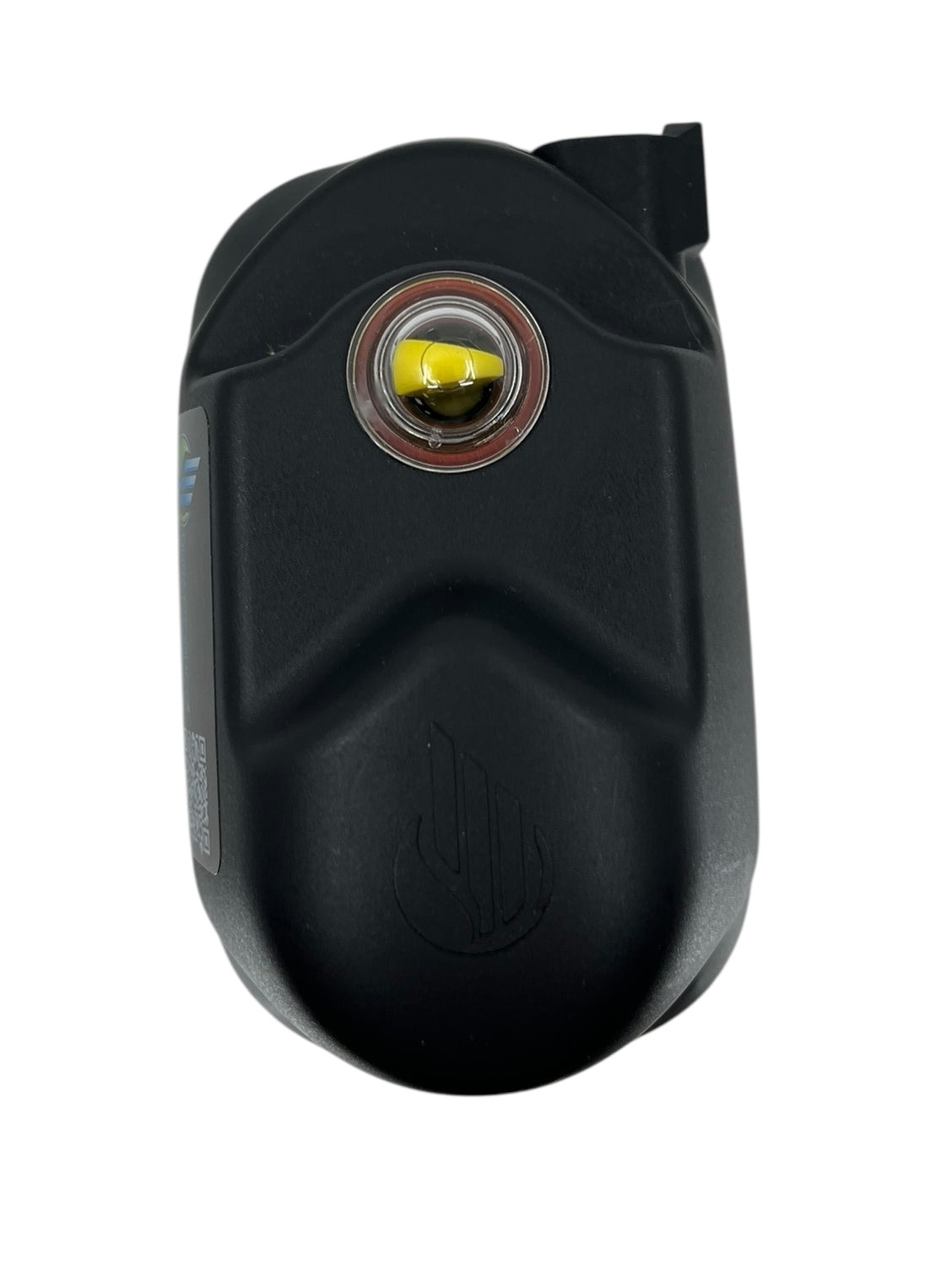

Dura Products Replacement Actuator for OEM Hagie 696676, 696196 (Model DTS10) - DPEV-100HAGIE

Dura Products Replacement Actuator for OEM Hagie 696676, 696196 (Model DTS10) - DPEV-100HAGIE

OEM Part Numbers: 696676, 696196
Machine Model Number: DTS10
DT4 Plug to DT4 Receptacle

Voltage: 12 Volt DC
Open/Closed Indicator: Yes
On/Off Response Time: 0.8 Second
IP68 Waterproof: Yes
Wiring: On/Off 3 Wire
Maximum Pressure: 150 PSI
Storage Temp: 32° to 158° F (35° C to 70° C)
Actuator Materials: Glass-filled Nylon, polycarbonate, Viton® & Silicone seals

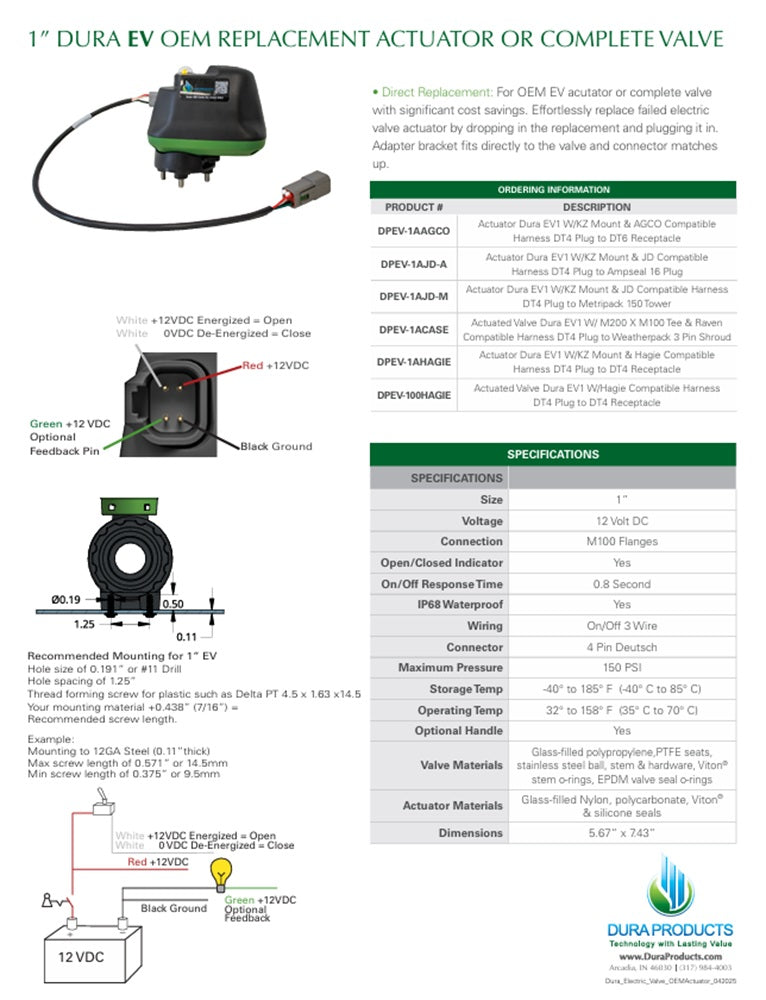

Direct Replacement: For OEM EV actuator or complete valve with significant cost savings. Effortlessly replace failed electric valve actuator by dropping in the replacement and plugging it in. Adapter bracket fits directly to the valve and connector matches up. *Note that the electric valve is always installed in line with the valve ports, even though the factory actuator may be perpendicular to the valve.
