FLOMEC FM Approved Remote Kit For Turbine Flow Meters With Q9 Display - 113275-10

FLOMEC FM Approved Remote Kit For Turbine Flow Meters With Q9 Display - 113275-10

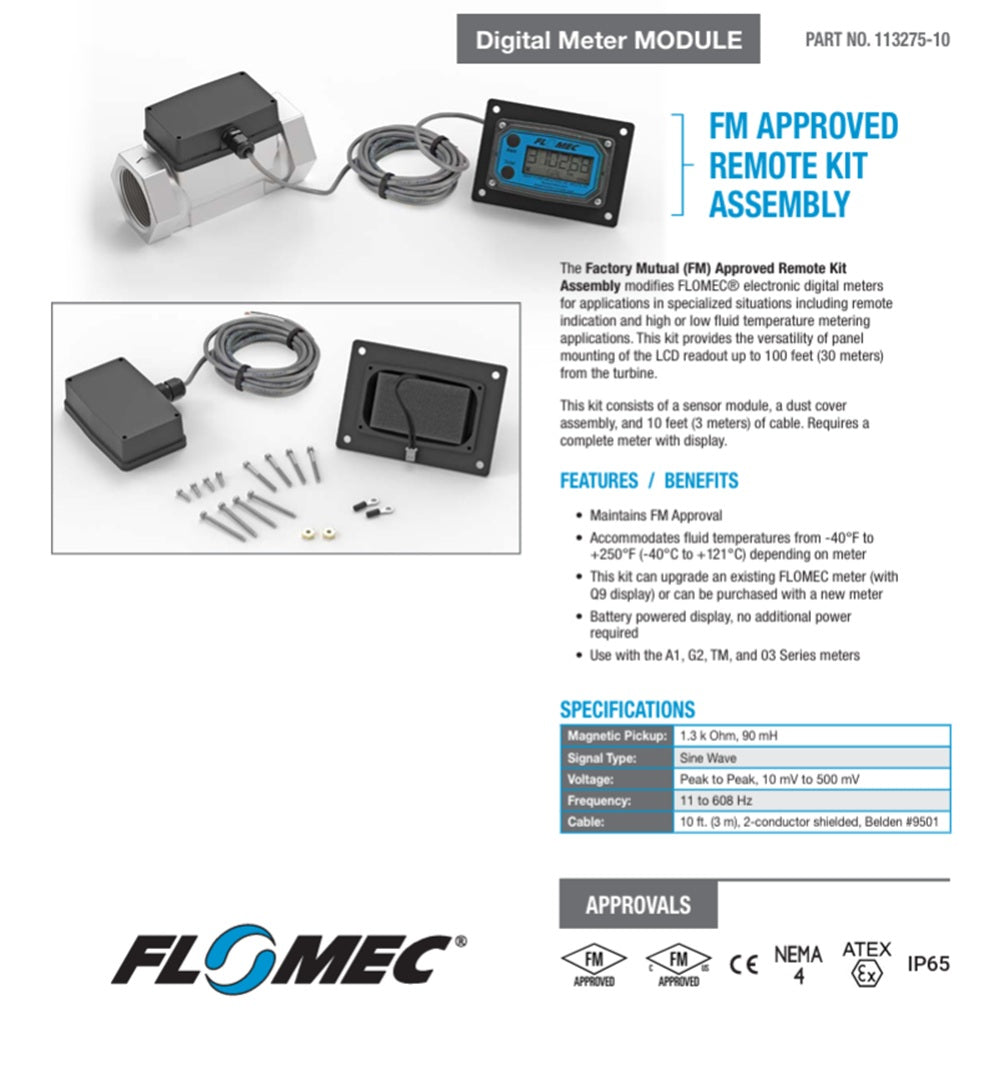

The Factory Mutual (FM) Approved Remote Kit Assembly modifies FLOMEC® electronic digital meters for applications in specialized situations including remote indication and high or low fluid temperature metering applications. This kit provides the versatility of panel mounting of the LCD readout up to 100 feet (30 meters) from the turbine. This kit consists of a sensor module, a dust cover assembly, and 10 feet (3 meters) of cable. Requires a complete meter with a Q9 display.

SPECIFICATIONS
Magnetic Pickup: 1.3k Ohm, 90mH
Signal Type: Sine Wave
Voltage: Peak to Peak, 10 mV to 500 mV
Frequency: 11 to 608 Hz
Cable: 10 ft. (3 m), 2-conductor shielded, Belden #9501

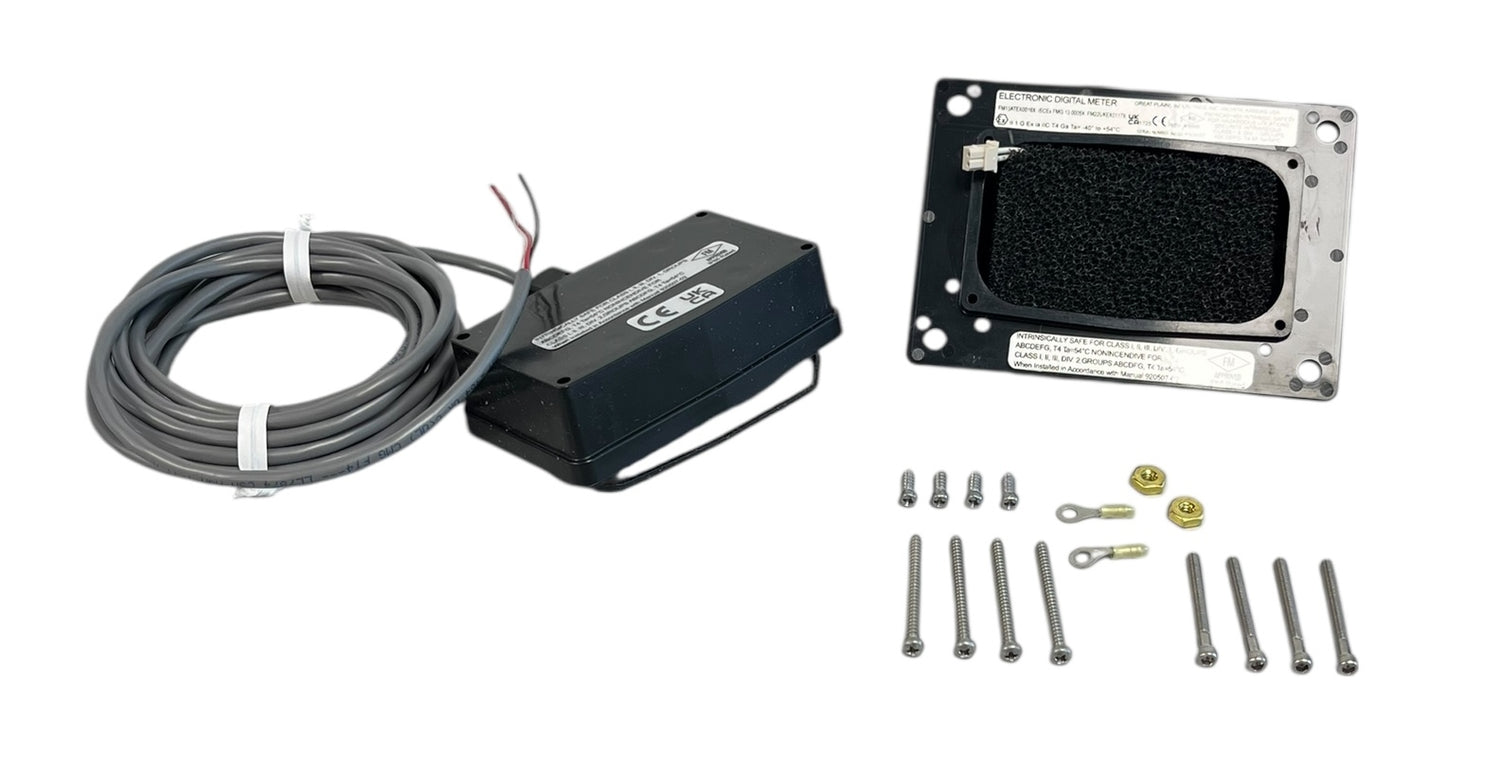

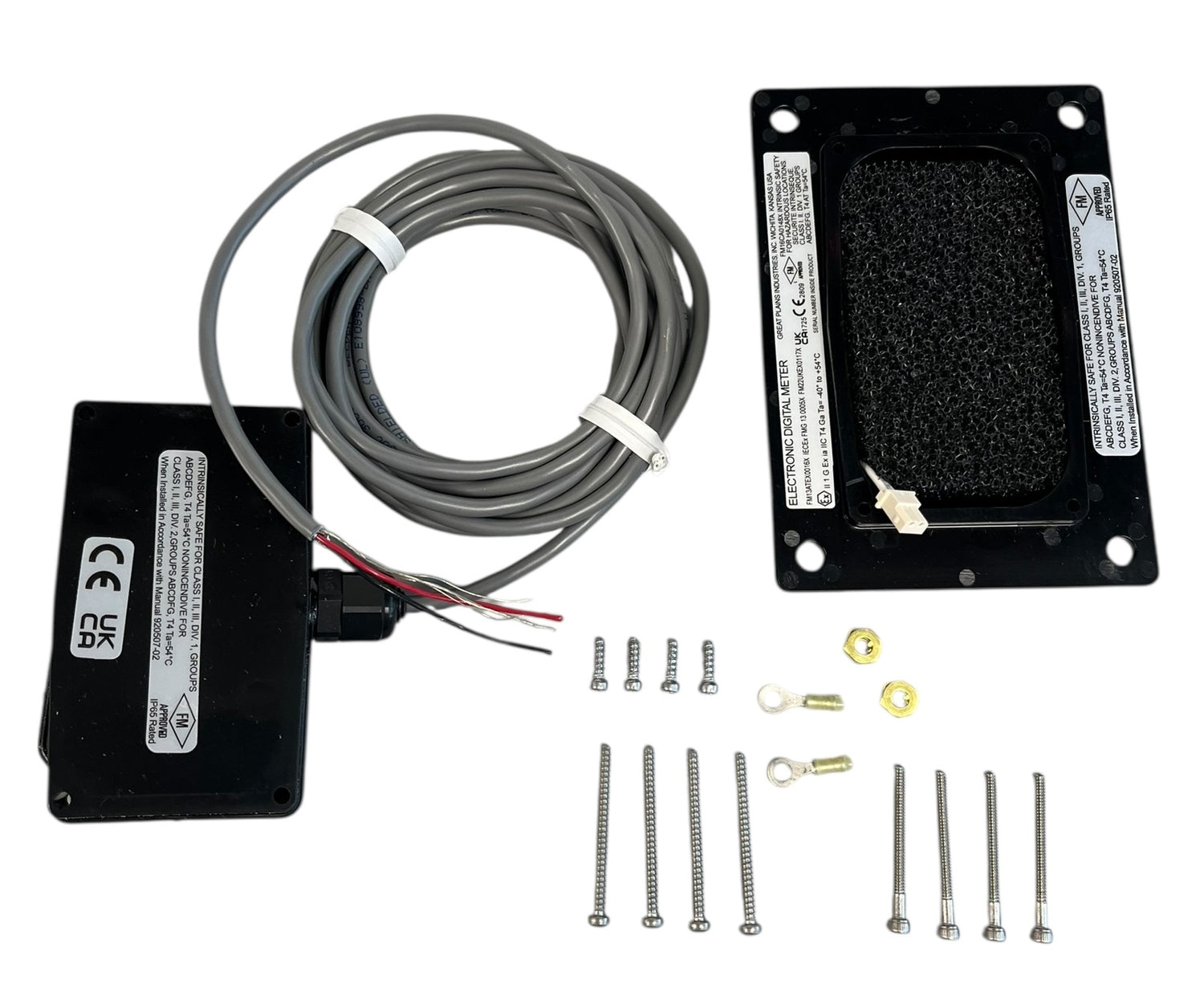

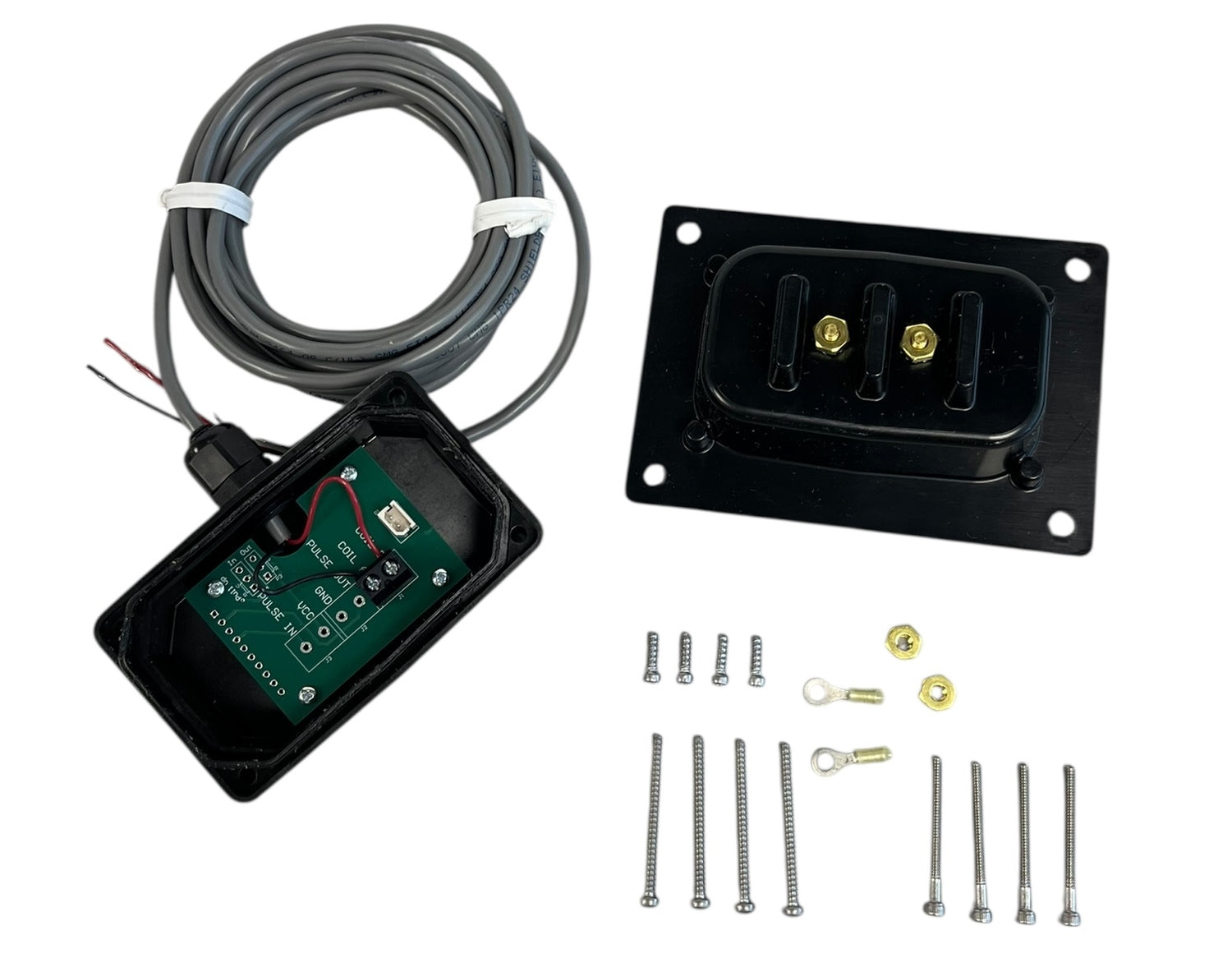

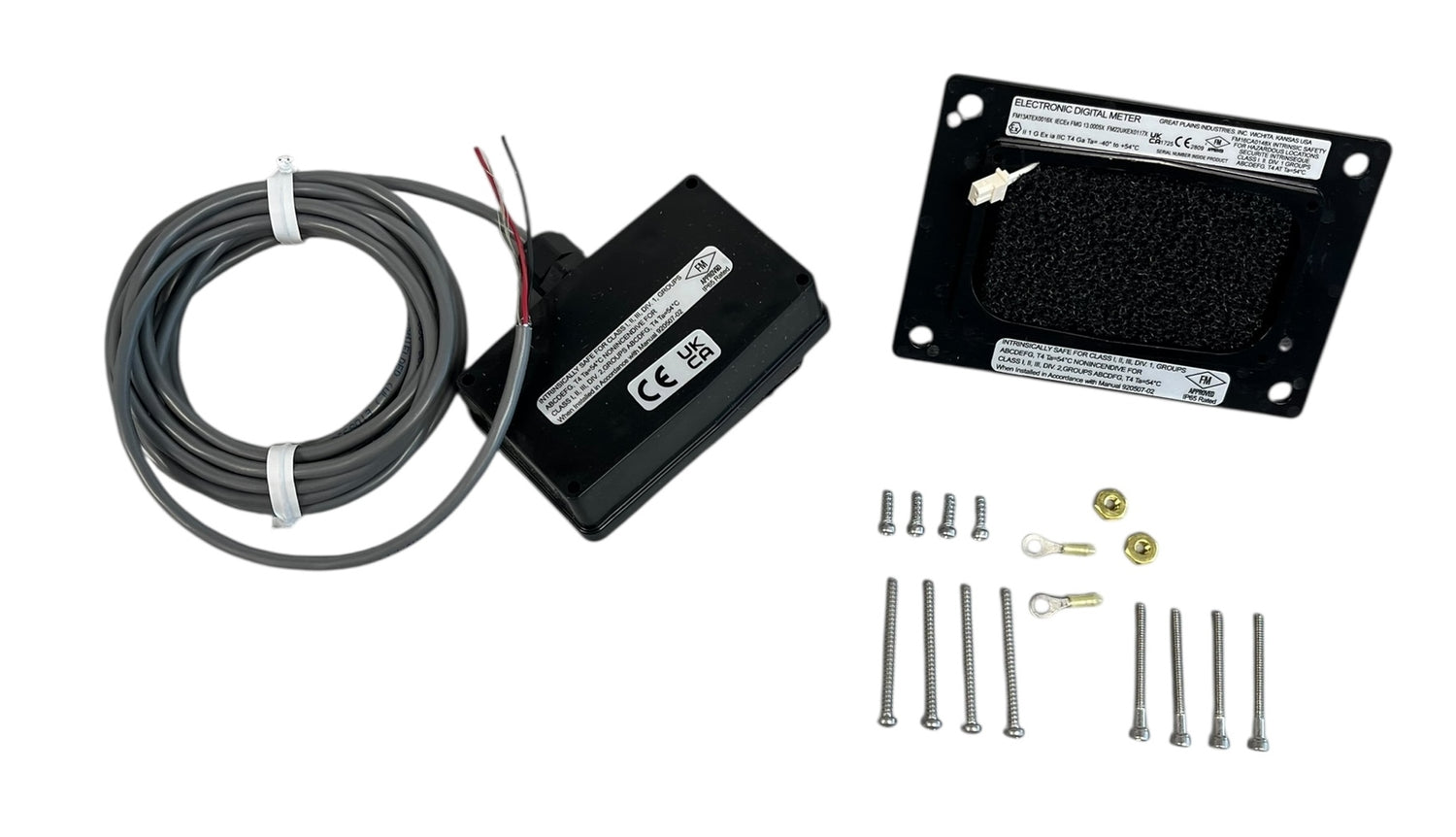

Includes: (1) Sensor module assembly, (1) dust cover assembly, (1) installation template, (2) ring terminals, (2) nuts, (4) 4-20 x 3/8-inch, CR, FILL HD, SS Tap screws, (4) 3mm-1.12mm x 35mm, SS PHCR screws, (4) 4-40 x 1.2-inch, Ss, SHCS screws, (1) FM Remote Kit ATEX Guide, (1) Owners Manual, (1) Declaration of Conformity
