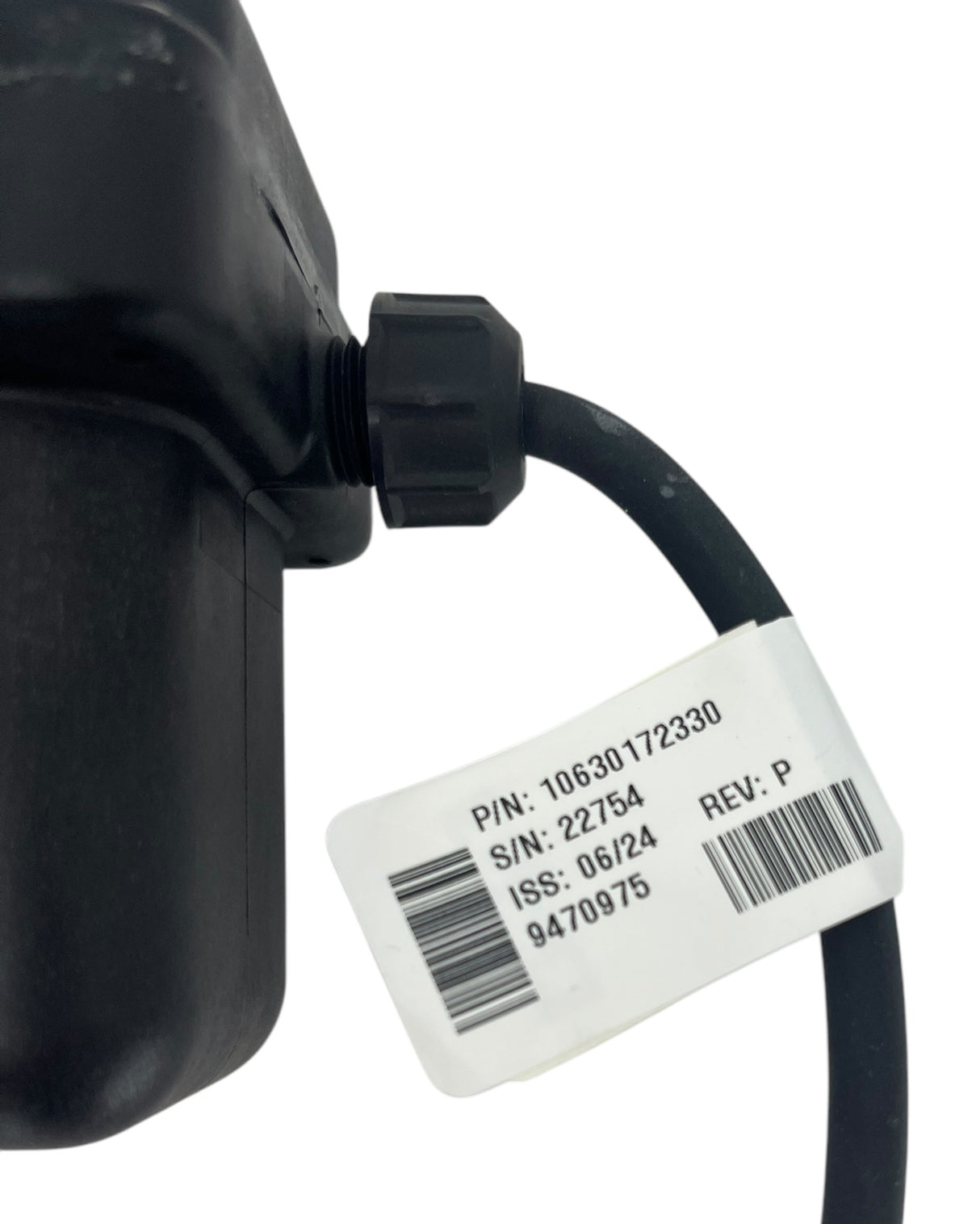

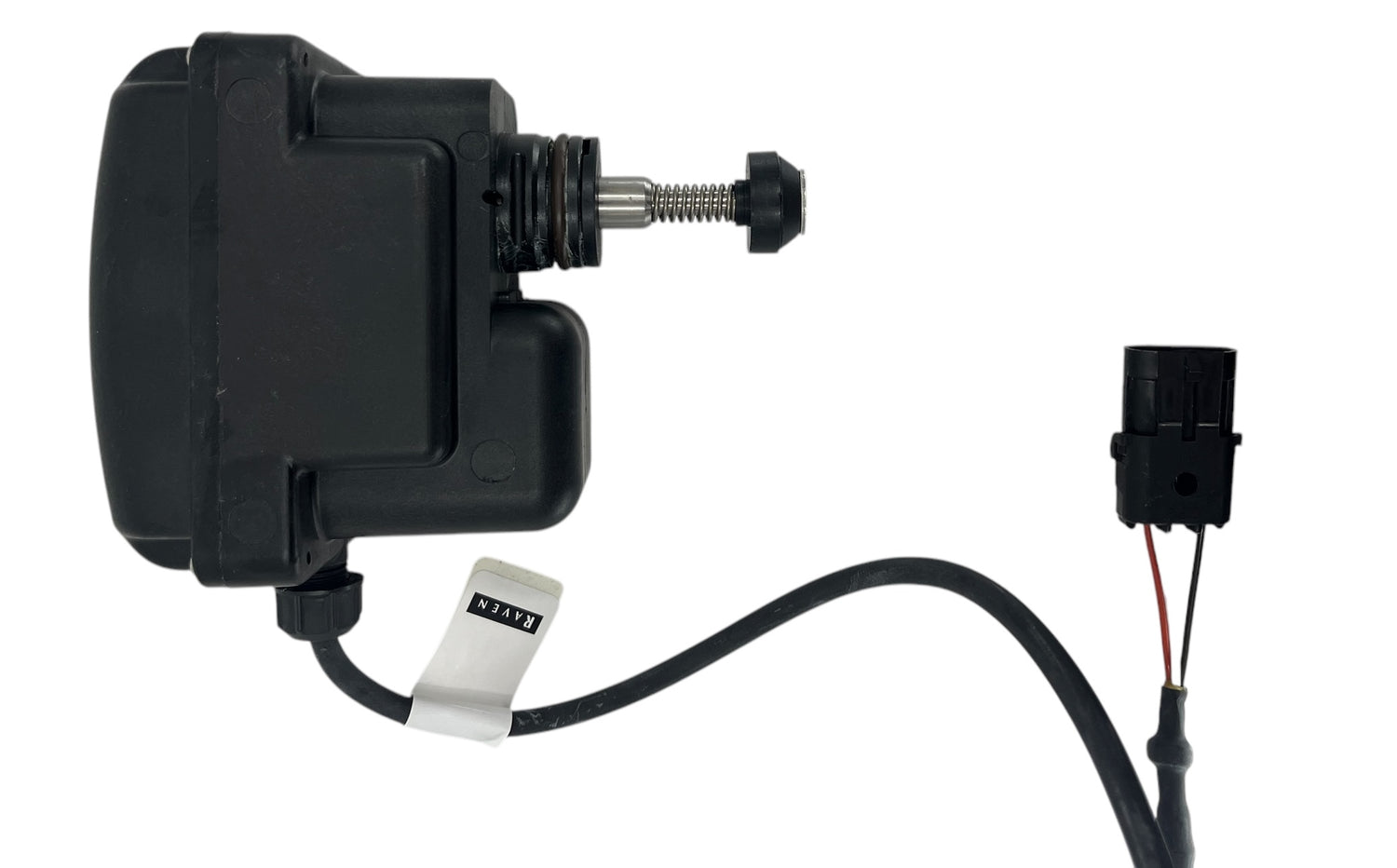

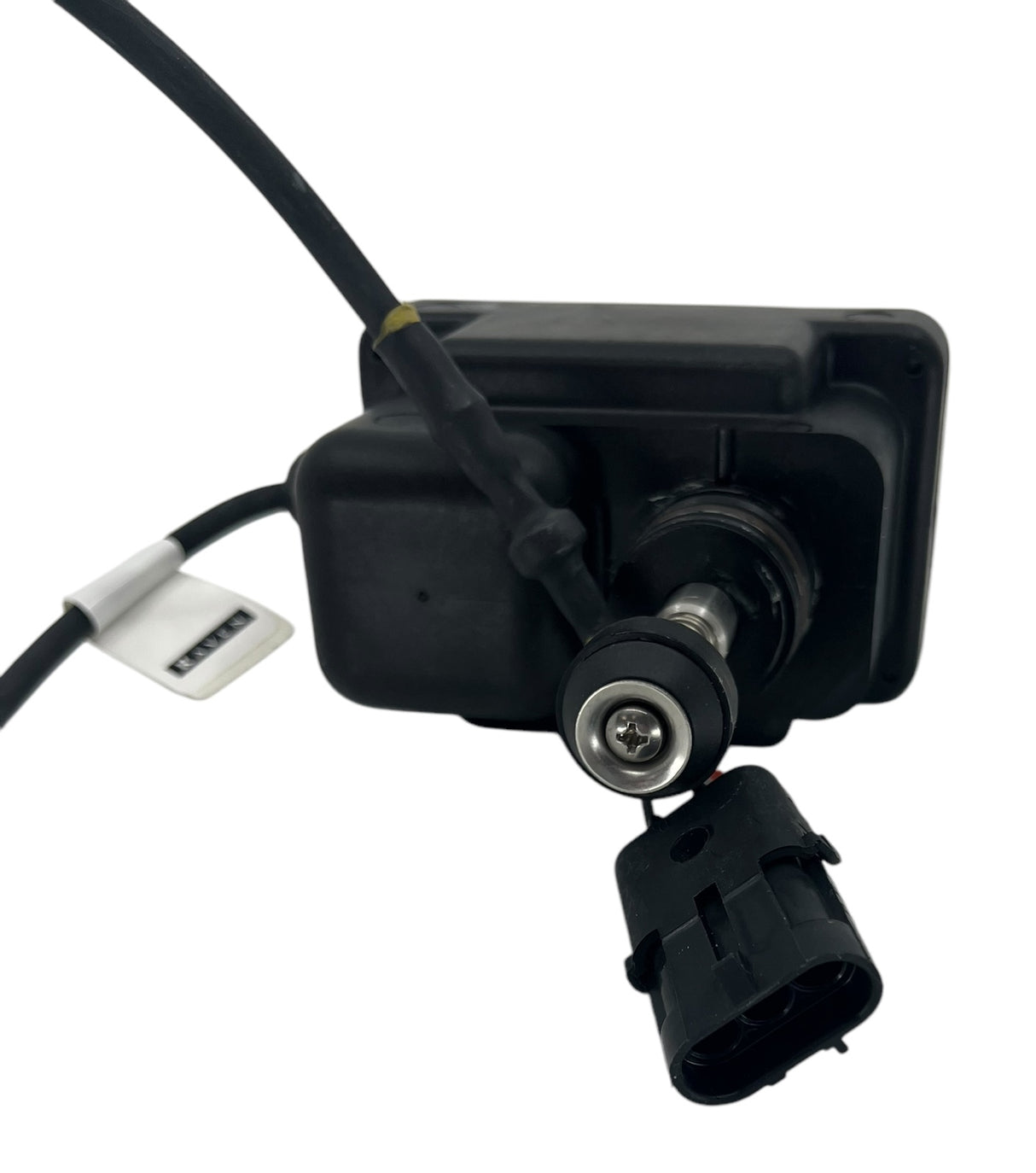

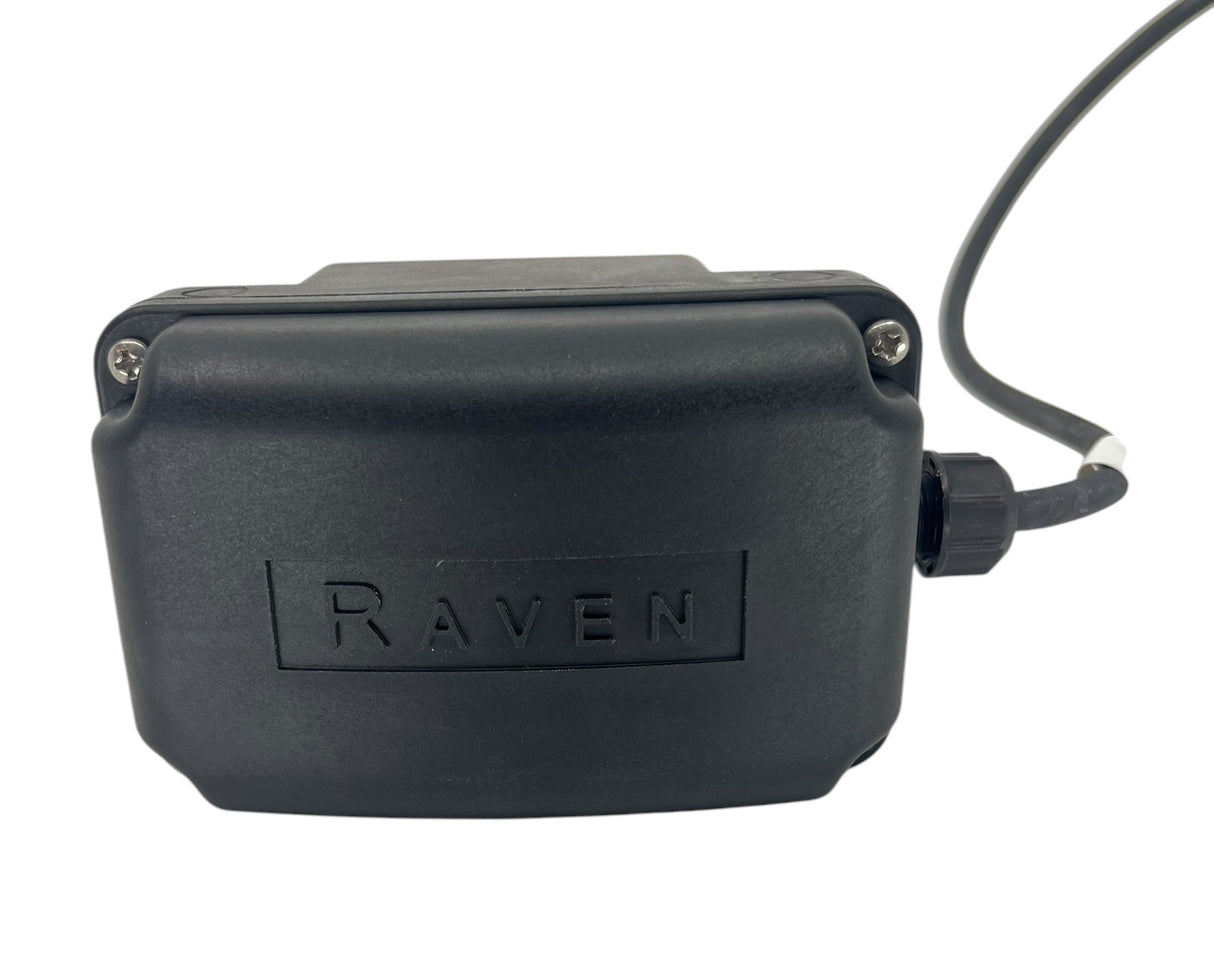

Raven Manifold Valve Motor Assembly For Raven Weatherpack Valve - 063-0172-330

Raven Manifold Valve Motor Assembly For Raven Weatherpack Valve - 063-0172-330

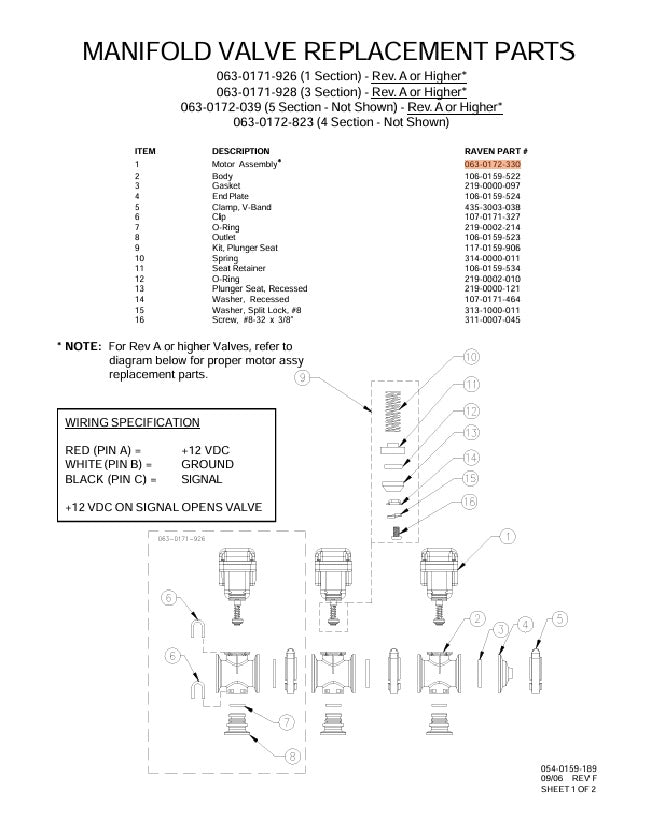

Manifold motor replacement fitment:
063-0171-926 (1 Section) - Rev. A or Higher
063-0171-928 (3 Section) - Rev. A or Higher
063-0172-039 (5 Section) - Rev. A or Higher
063-0172-823 (4 Section)

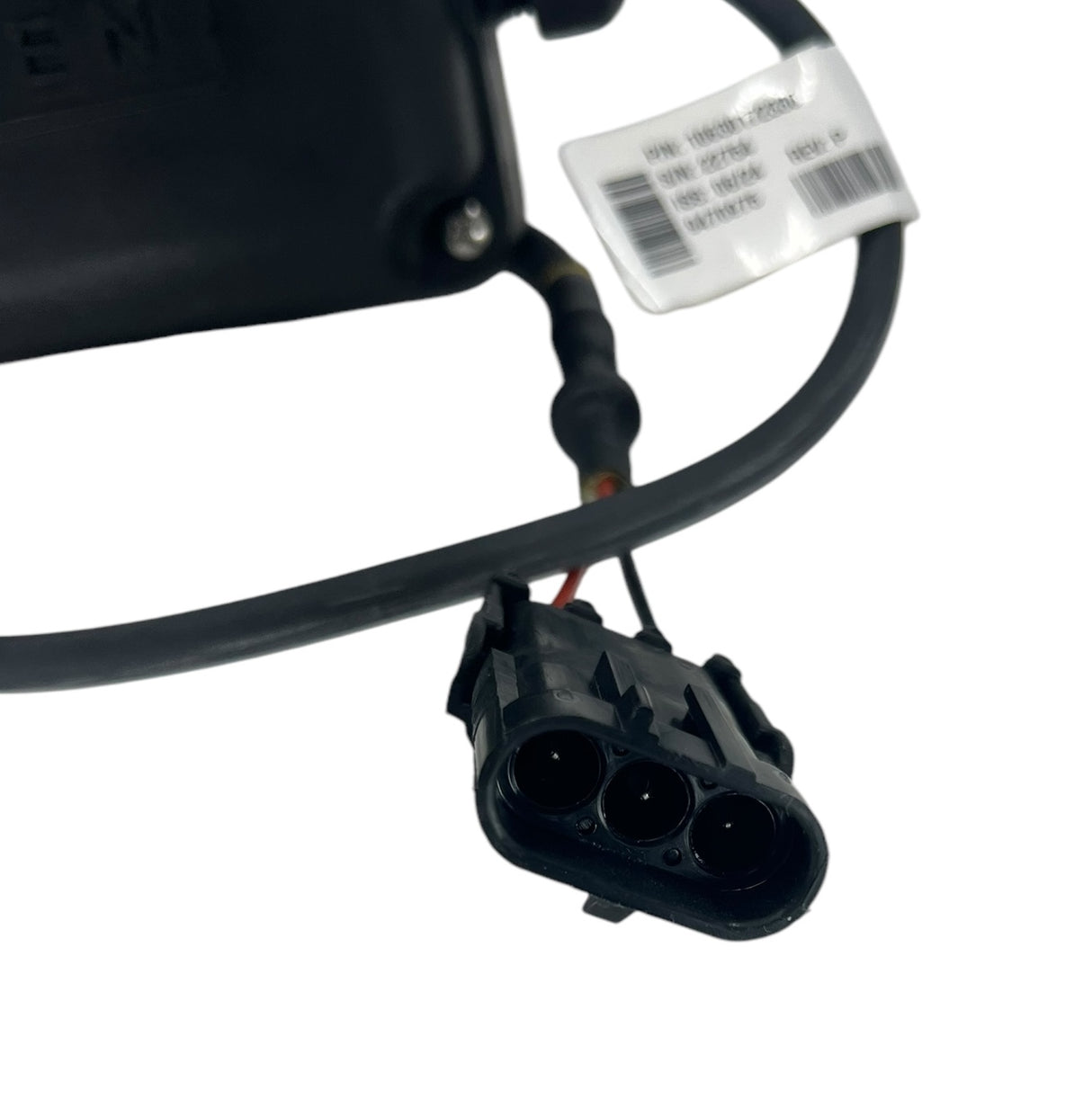

WIRING SPECIFICATION

RED (PIN A) = +12 VDC

WHITE(PIN B) = GROUND

BLACK (PIN C) = SIGNAL +12 VDC ON SIGNAL OPENS VALVE
