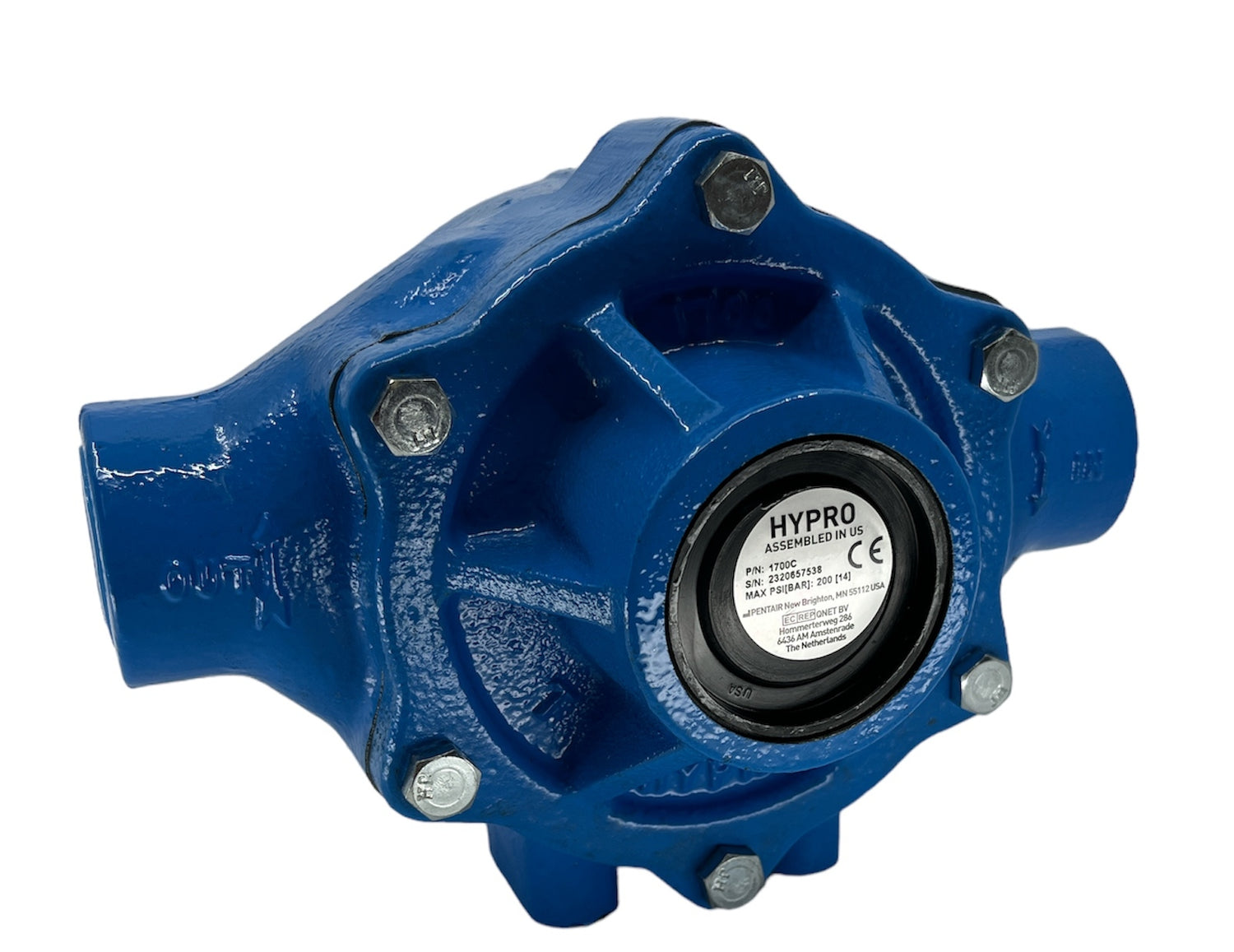

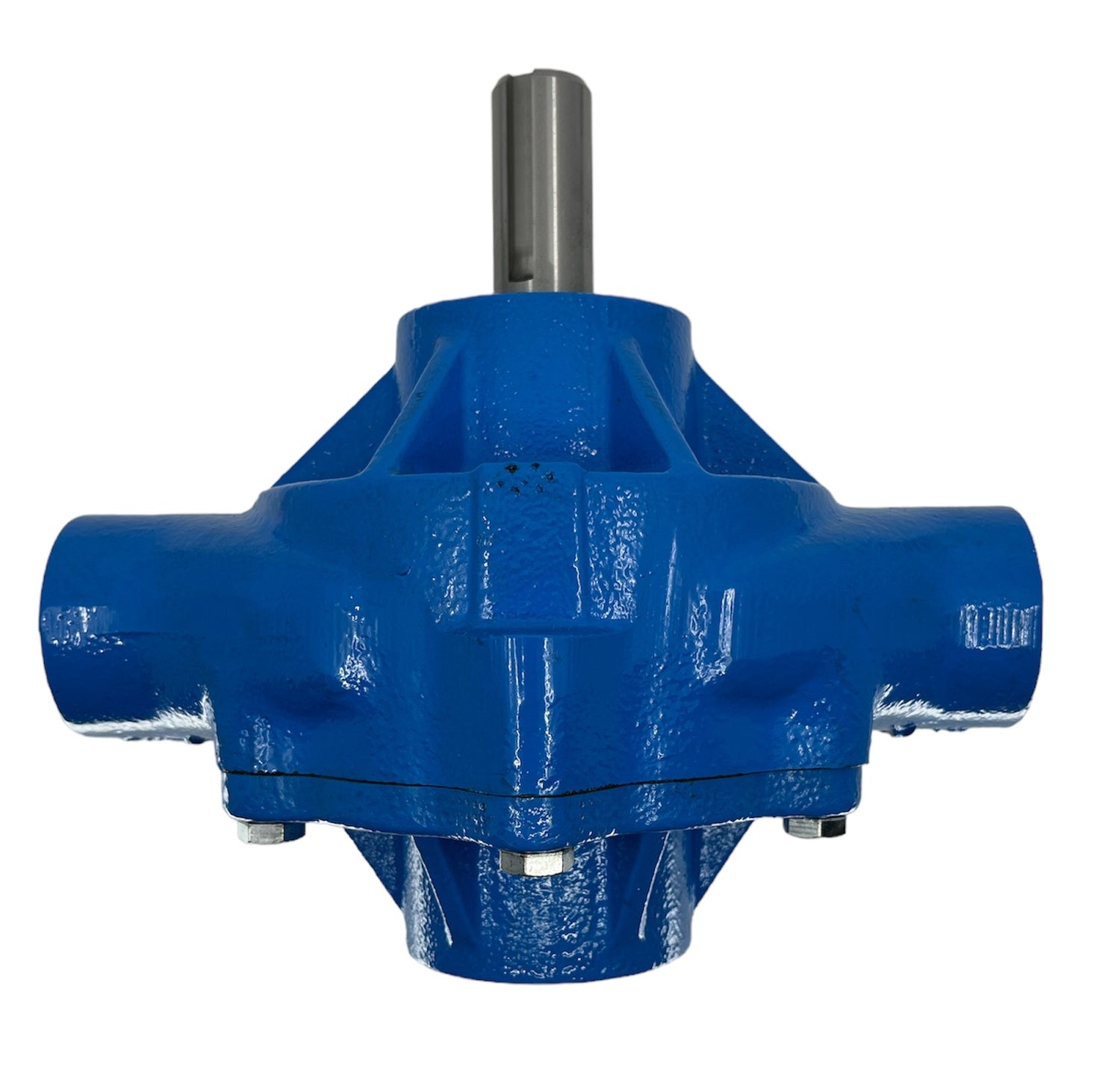

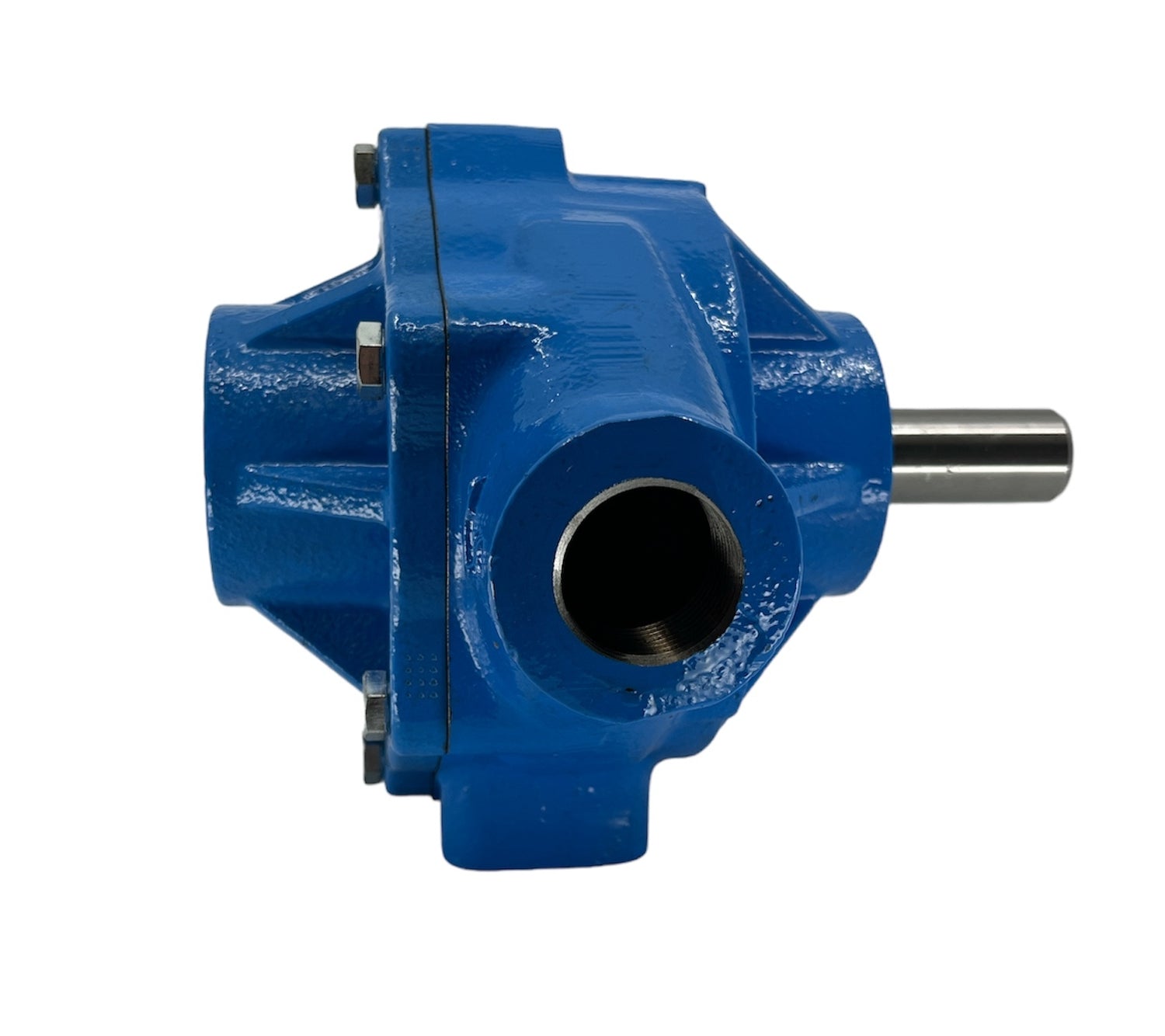

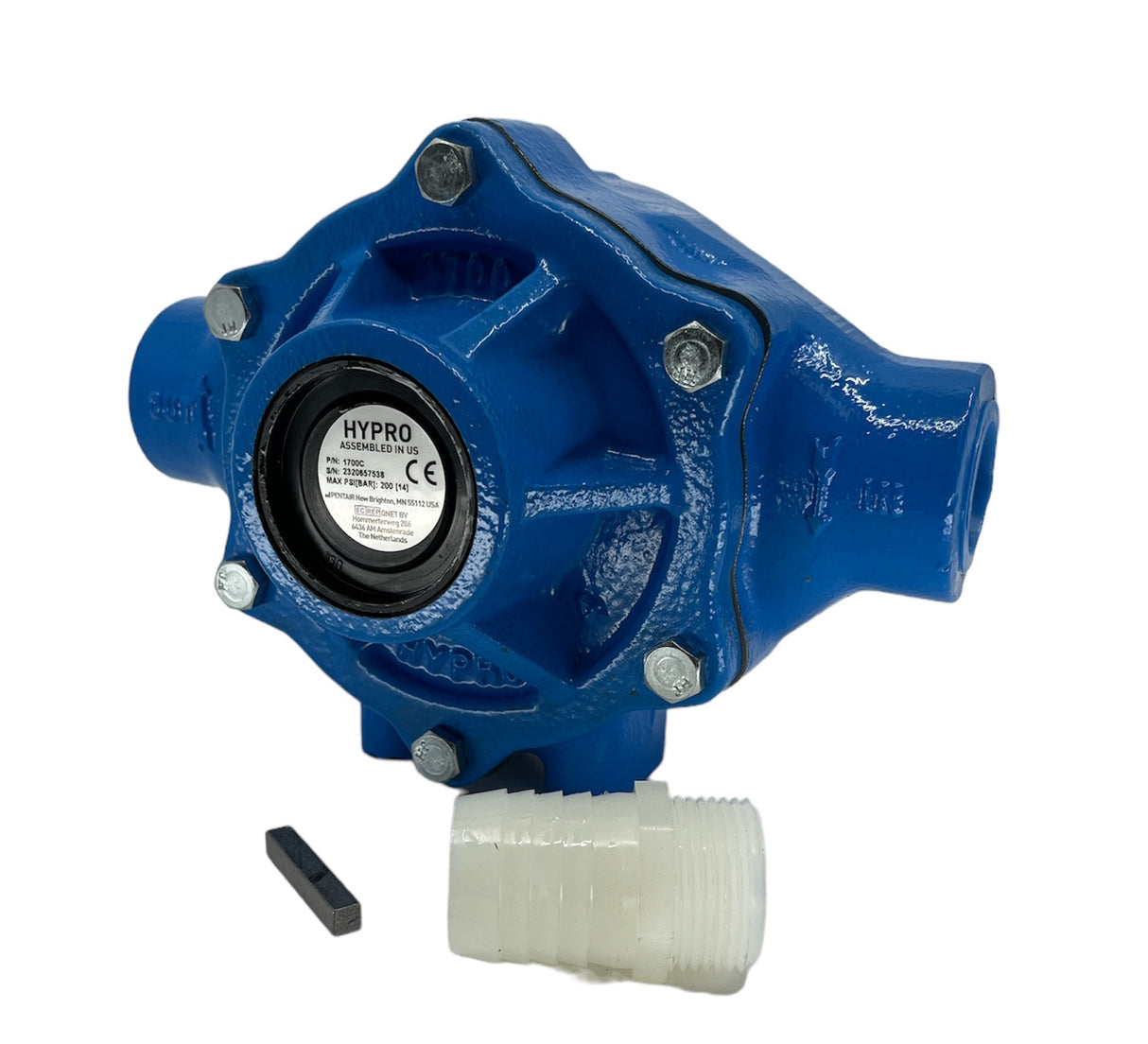

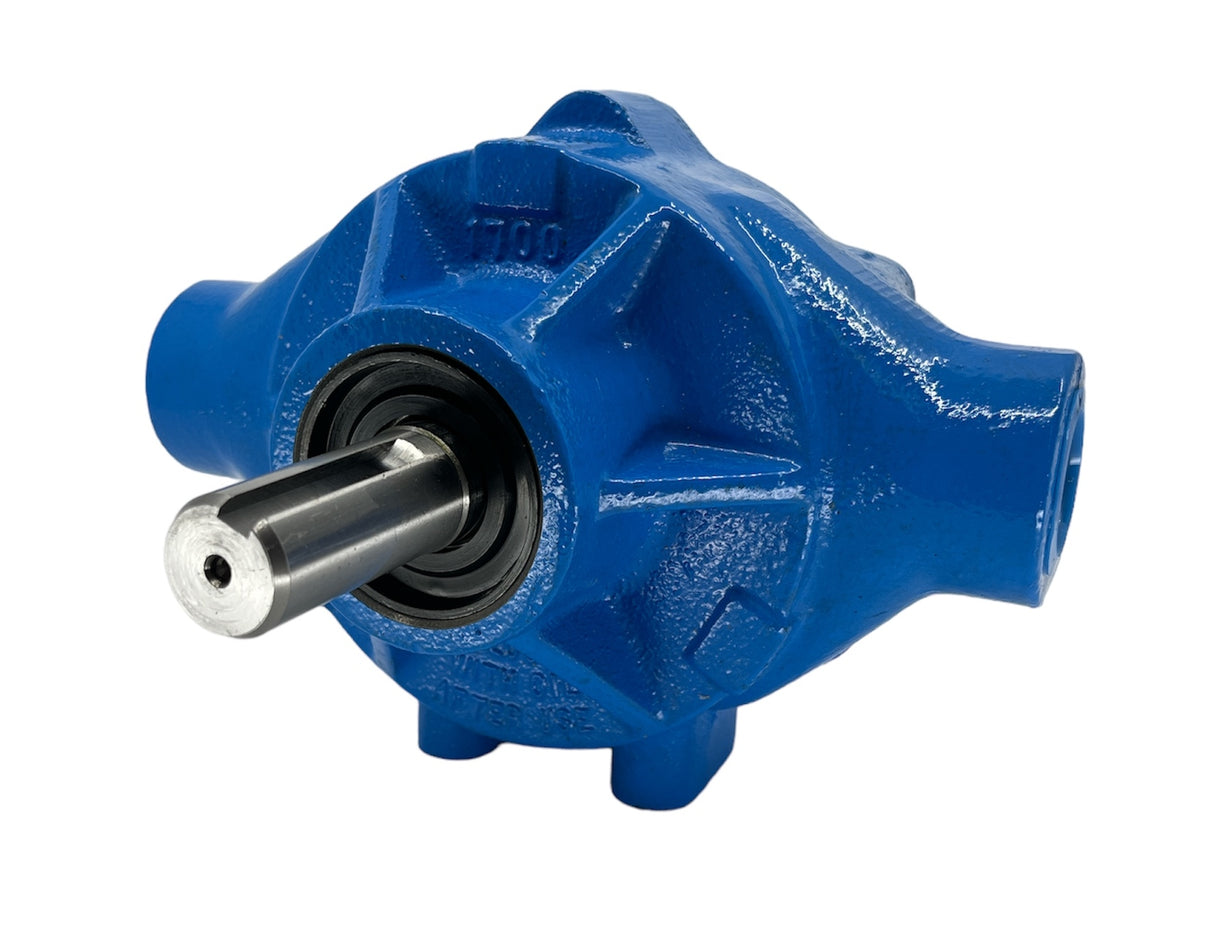

Hypro 5-Roller Cast Iron Pump - 1700C

Hypro 5-Roller Cast Iron Pump - 1700C

This is a highly versatile pump, used for spraying and transferring a variety of fluids.
With a maximum flow rate of 45 GPM and an upper pressure limit of 200 PSI, this Hypro 1700C Roller Pump is your logical choice for low-pressure sprayer application of insecticide, herbicide, liquid fertilizer or your aromatic solvent. This pump features a rotary-action roller principle, which makes your life easier by requiring no check valves during operation. You also gain less friction and a lower starting torque than what's needed for other pumps.

Features:

• 1" NPT Ports, 45 GPM, 200 PSI, 15/16" Solid Shaft
• Counter clockwise rotation when looking at shaft
• Viton shaft seals

Specs:

• Max flow: 45 gpm
• Max pressure: 200 psi
• Max rpm: 1000
• Port sizes: 1" FNPT
• Pump shaft rotation: CCW
• Housing: Cast iron
• Rotor: Cast iron
• Roller material: Super rollers standard, Poly and Teflon® available
• Roller quantity: 5
• Shaft seals: Viton® standard, Buna available
• Shaft: 15/16" solid stainless steel
• 25 gpm/94.6 lpm at 540 rpm
• 45 gpm/170 lpm at 1000 rpm
• Max fluid temperature: 140°F
• Weight: 20 lbs
