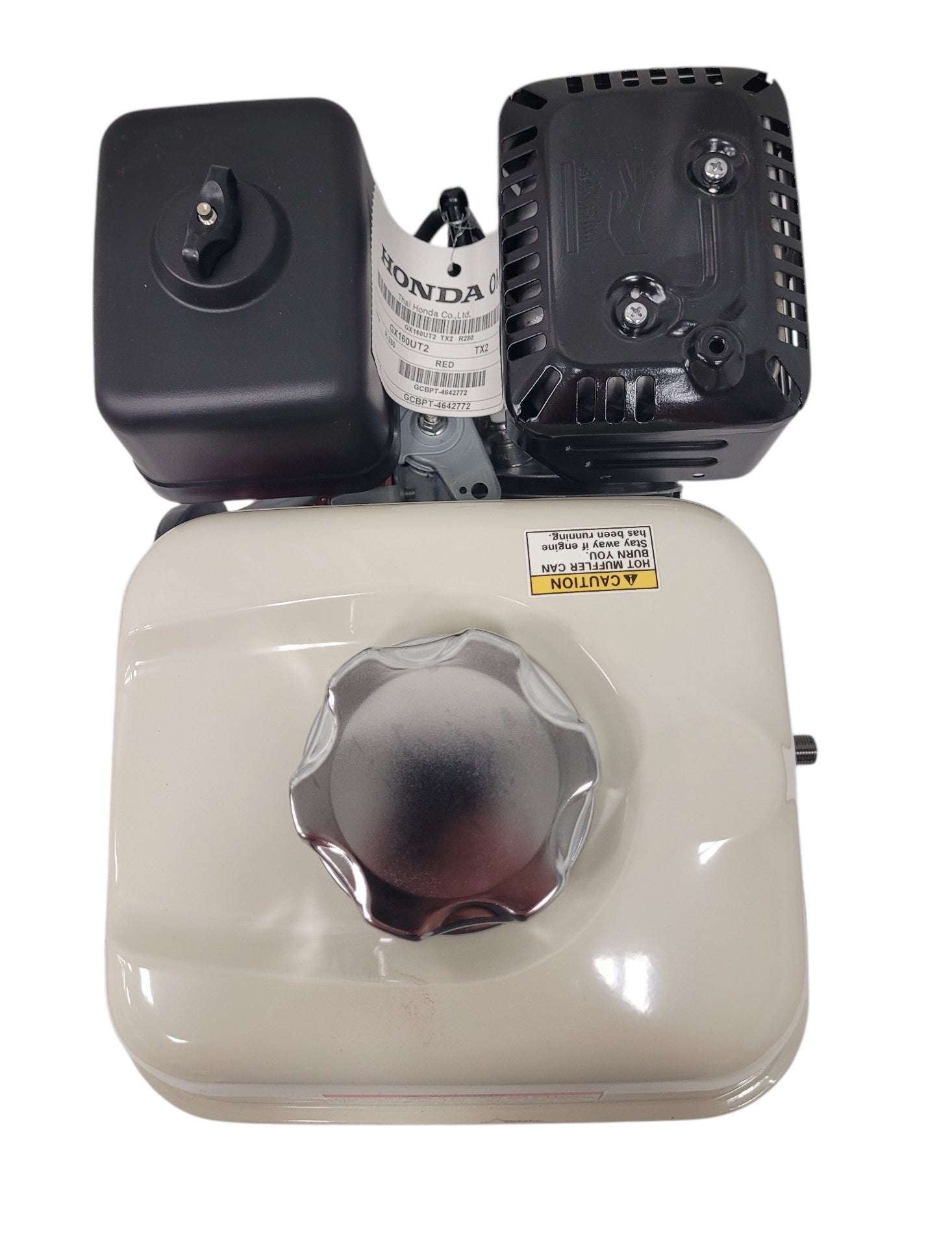

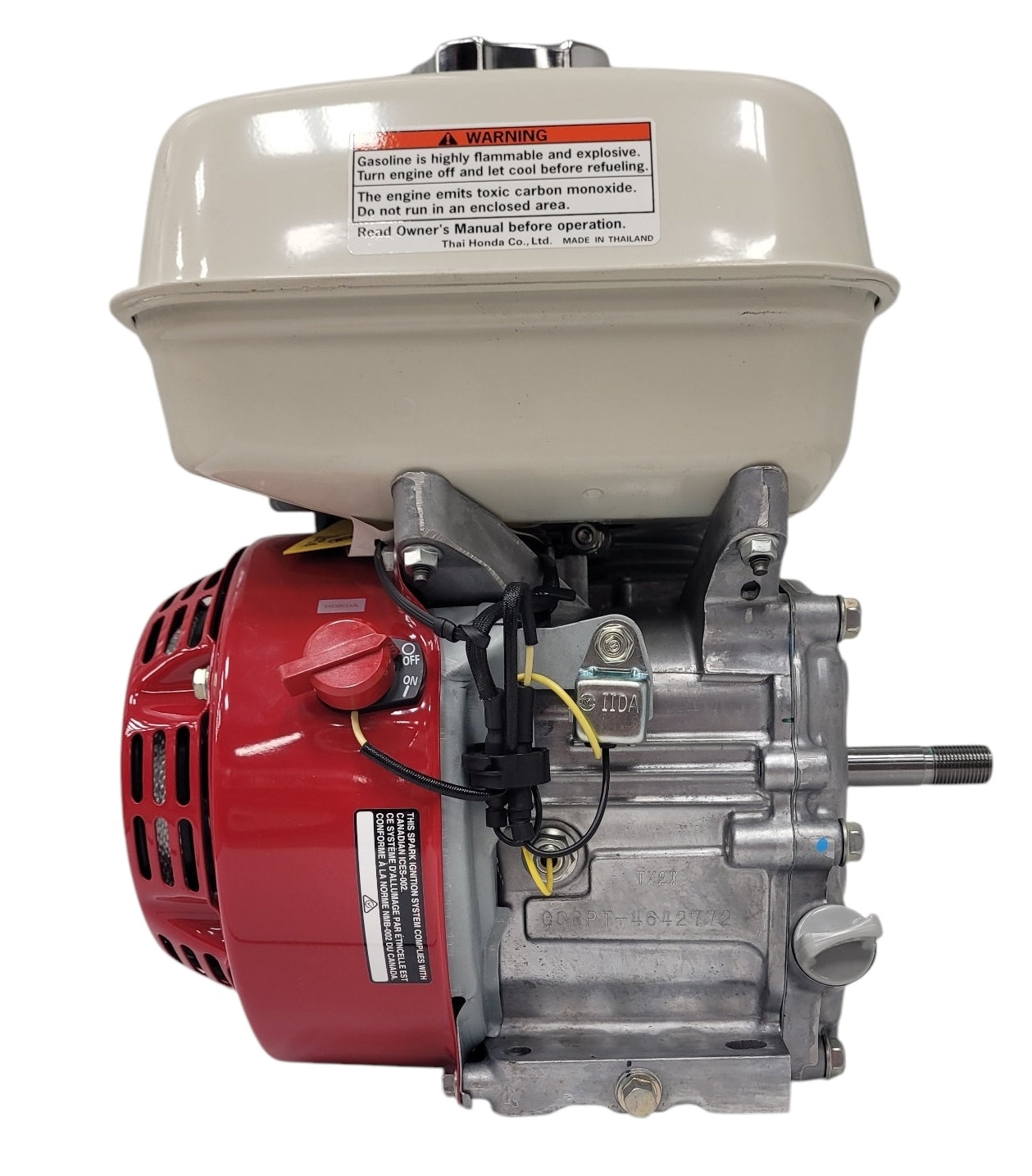

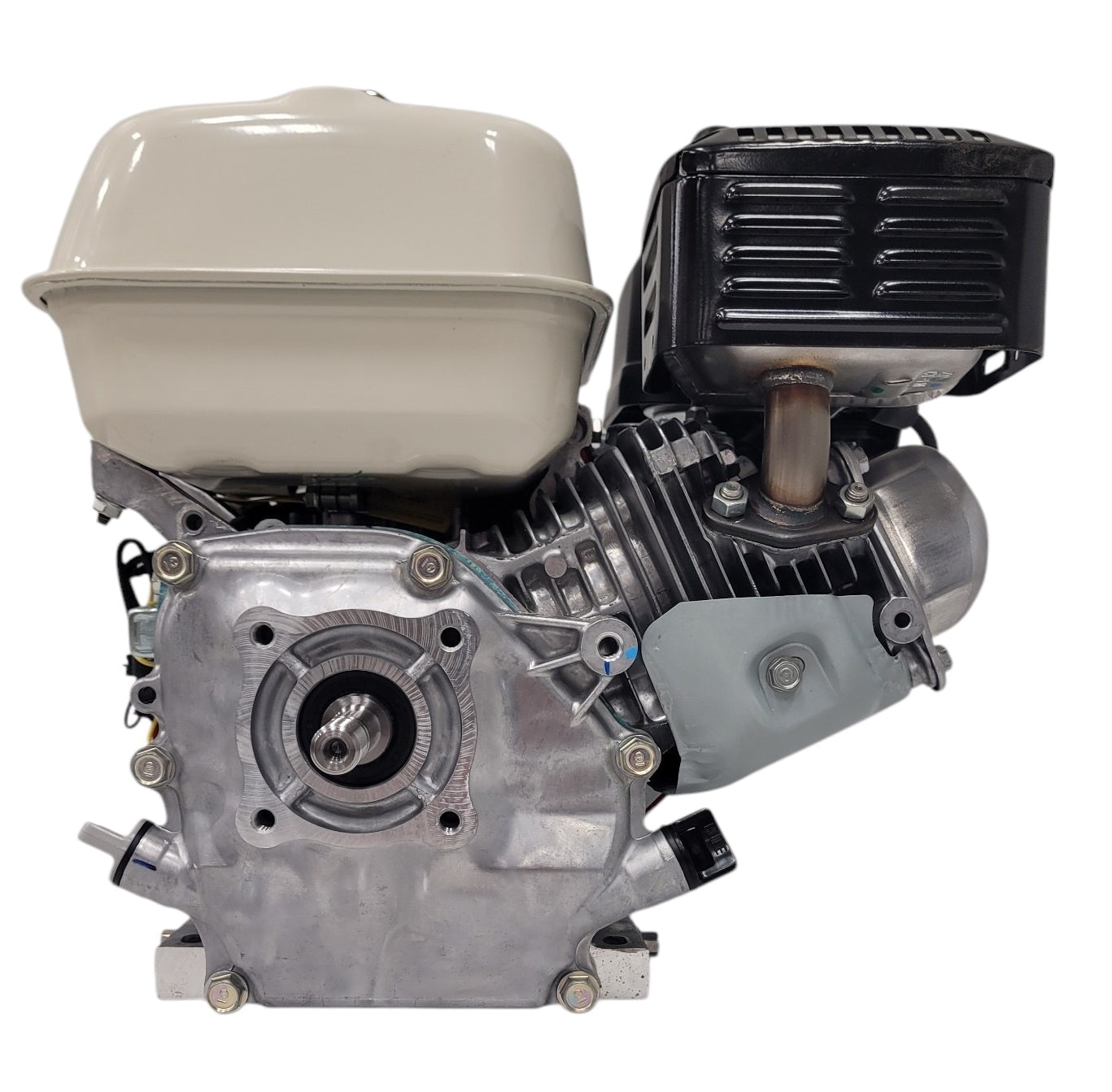

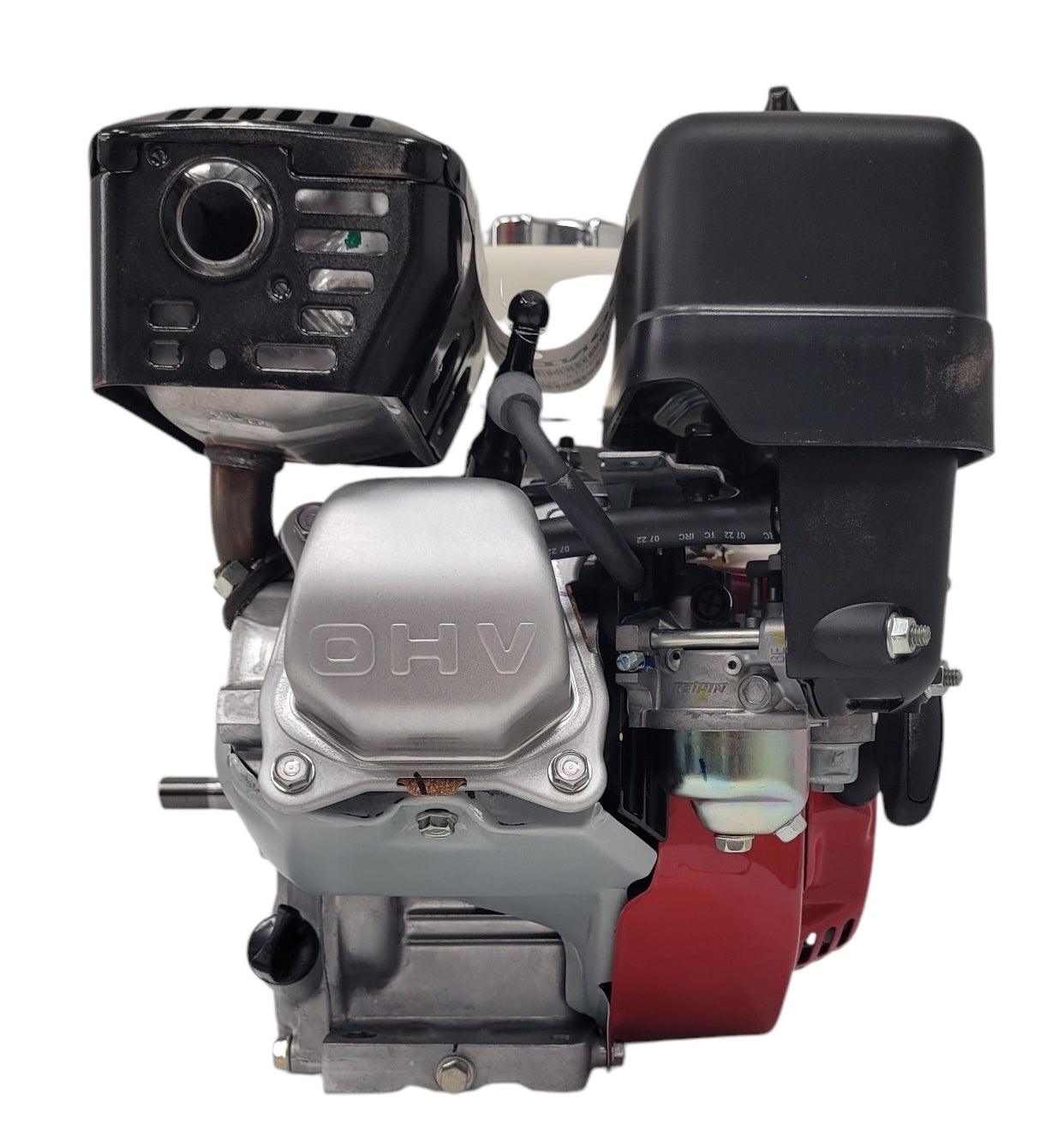

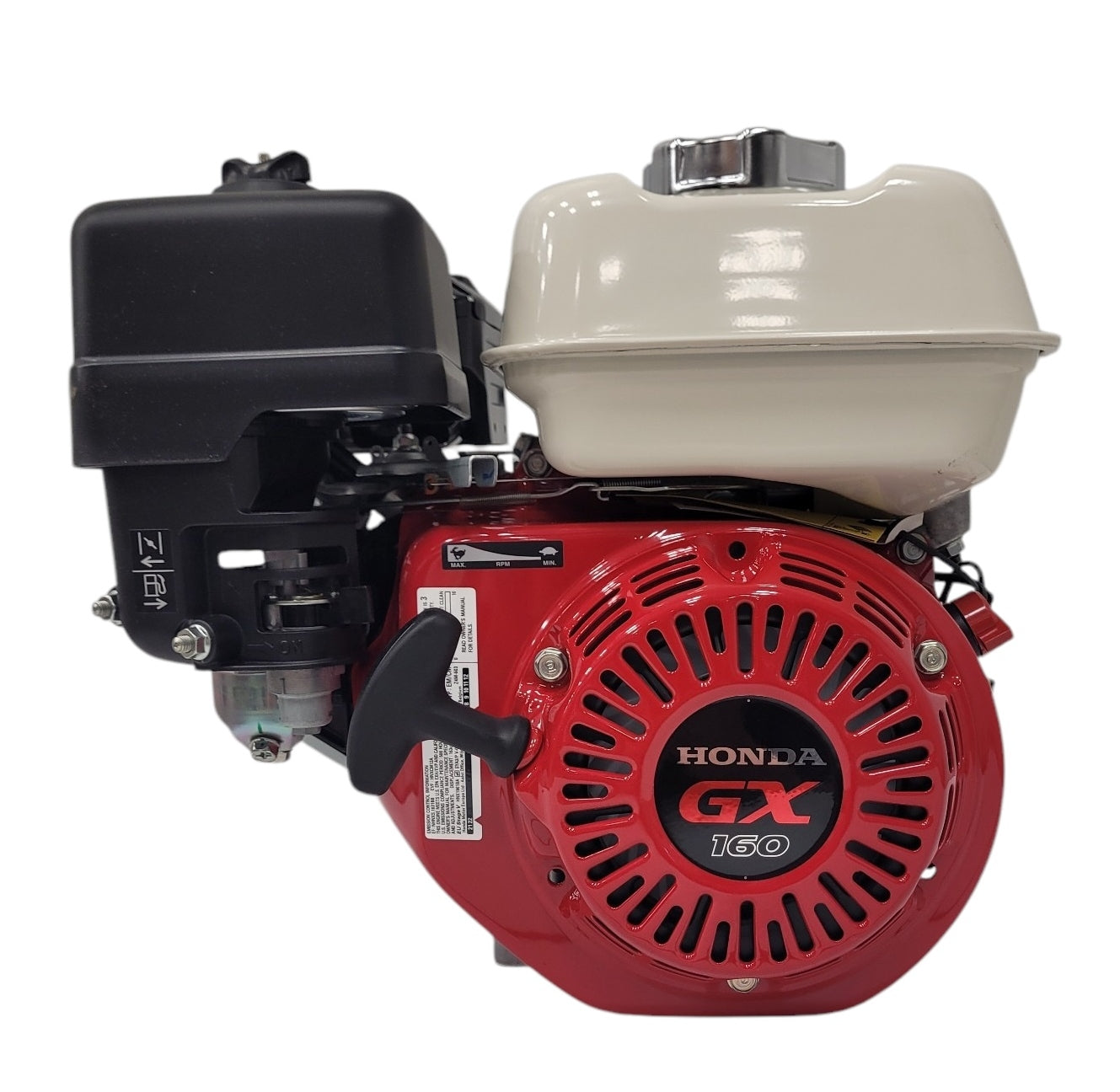

Honda GX160 Gas Engine 163 CC 4.8 HP, 5/8" x 2-7/16" Thread Shaft - GX160UT2TX2

Honda GX160 Gas Engine, 4.8 HP 5/8" x 2-7/16" Shaft - GX160UT2-TX2

The Honda 163cc GX Series OHV commercial-grade engine is designed for use on pumps used in demanding applications. NOTE: Engine does not fit power equipment. It has set an industry standard for reliability and durability. Overhead valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for pumps. Its most common application is for non-Honda water pumps; ideal for US made centrifugal pumps.

Features:

• Equipment Type: Engine (Horizontal)
• Air Cleaner Type: Dual Element
• Bearing Type: Ball
• Bore: 2.7"
• Carburetor: Butterfly Float
• Choke Control: Manual
• Compression Ratio: 9.0:1
• Cooling System: Air Cooled
• Crankshaft: T-Type
• Crankshaft Diameter: .625 In. (5/8-18), Threaded
• Crankshaft Length: 2.43-In.
• Crankshaft Output: Horizontal
• Cylinder Bore: Cast Iron
• Cylinders (Qty.): 1
• Engine Displacement: 163 CC
• Fuel Filter: In-Line
• Fuel Tank Capacity: 3.3 Qt
• Governor System : Centrifugal Mechanical
• Item No: GX160UT2TX2
• Low Oil Alert: Yes
• Low Oil Shutdown: Yes
• Lubrication System: Splash
• Max. RPM : 3600
• Mounting Base Length: 6.375-In.
• Mounting Base Width: 3.15 to 3.34-In.
• Mounting Bolt Circle: 3.625-In.
• Muffler Included: Yes
• Net Power Output: 4.8 HP
• Net Torque: 7.6 Ft-Lbs.
• Oil Capacity: 0.61 Qt
• Product Dimensions L X W X H - In. (mm): 12.28-In. (312mm) X 14.25-In. (362mm) X 13.62-In. (346mm)
• Product Weight: 40
• PTO Height: 4.17-In.
• Starter Type: Recoil
• Stroke: 1.8-In.
• Throttle Control: Manual
