TeeJet DirectoValve Electric Control Single Solenoid Valve - AA144P-1

TeeJet DirectoValve Electric Control Single Solenoid Valve - AA144P-1

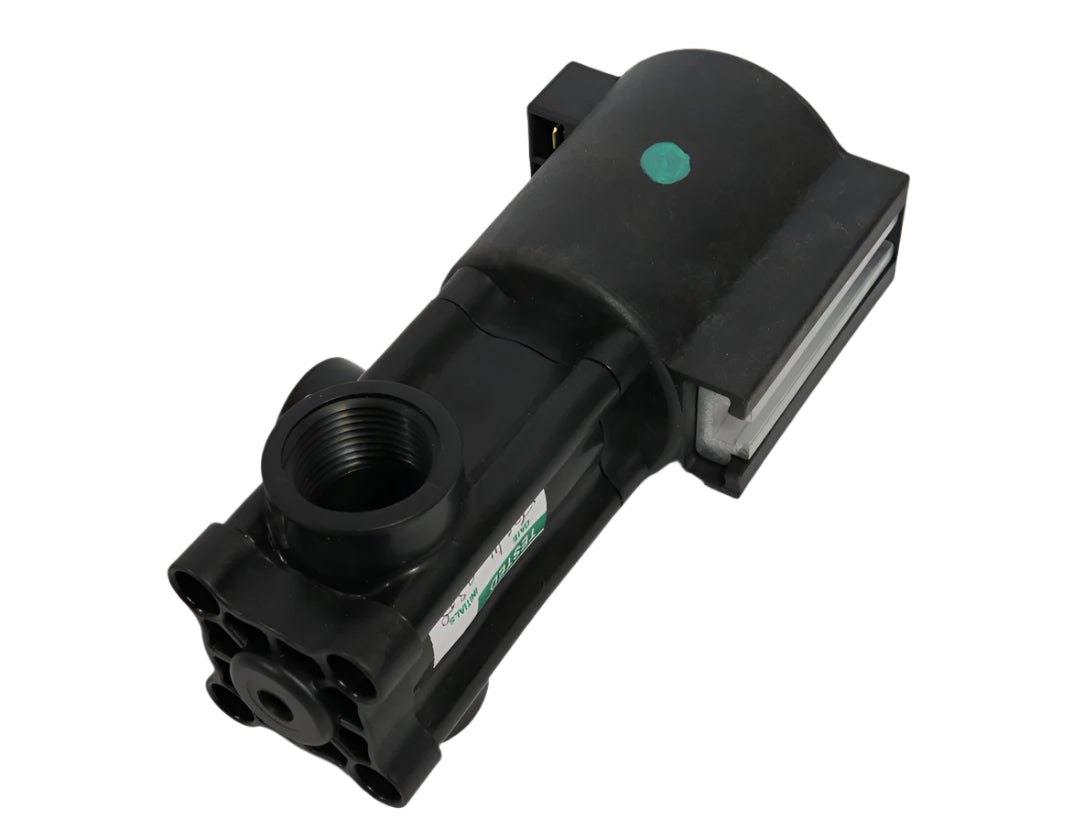

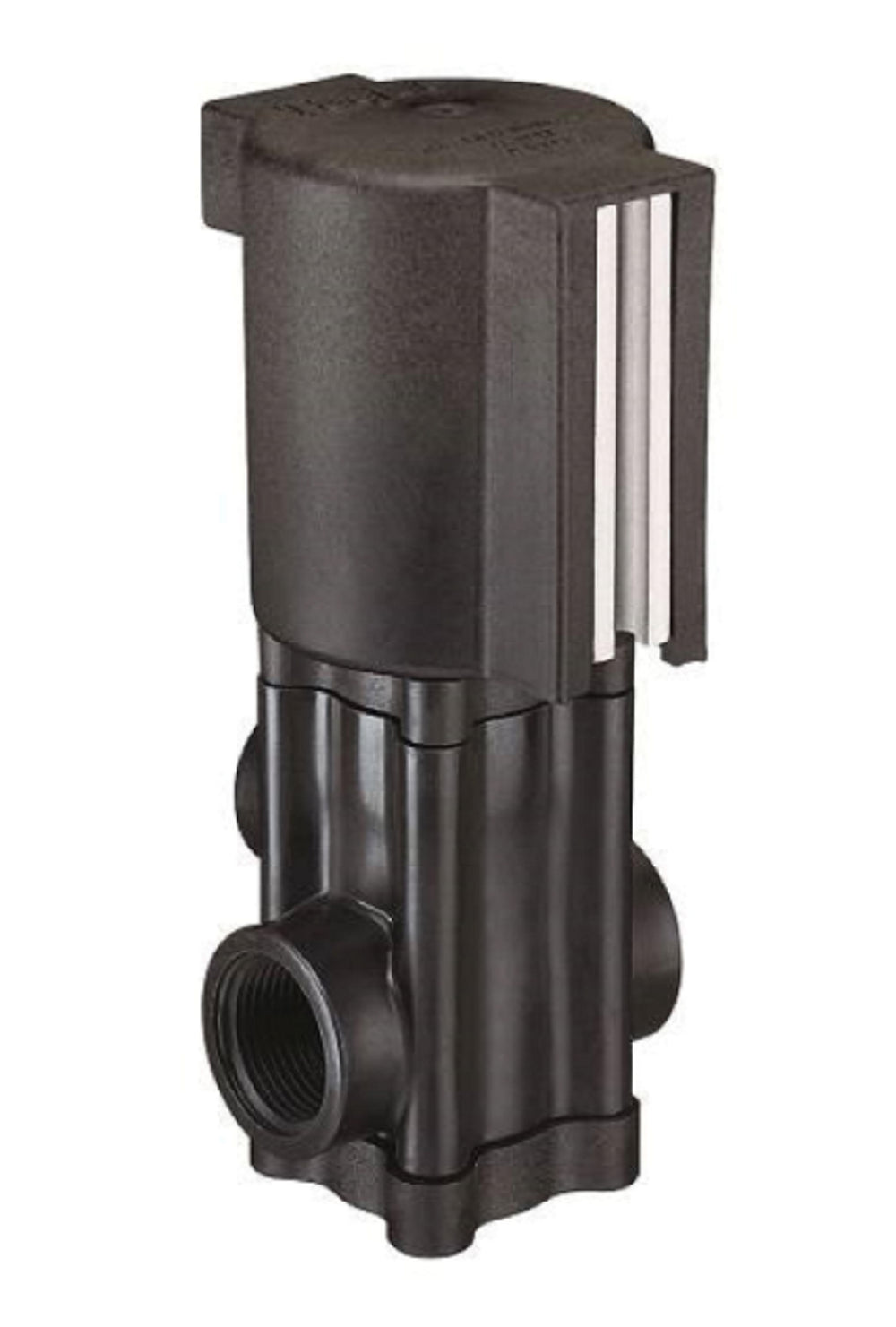

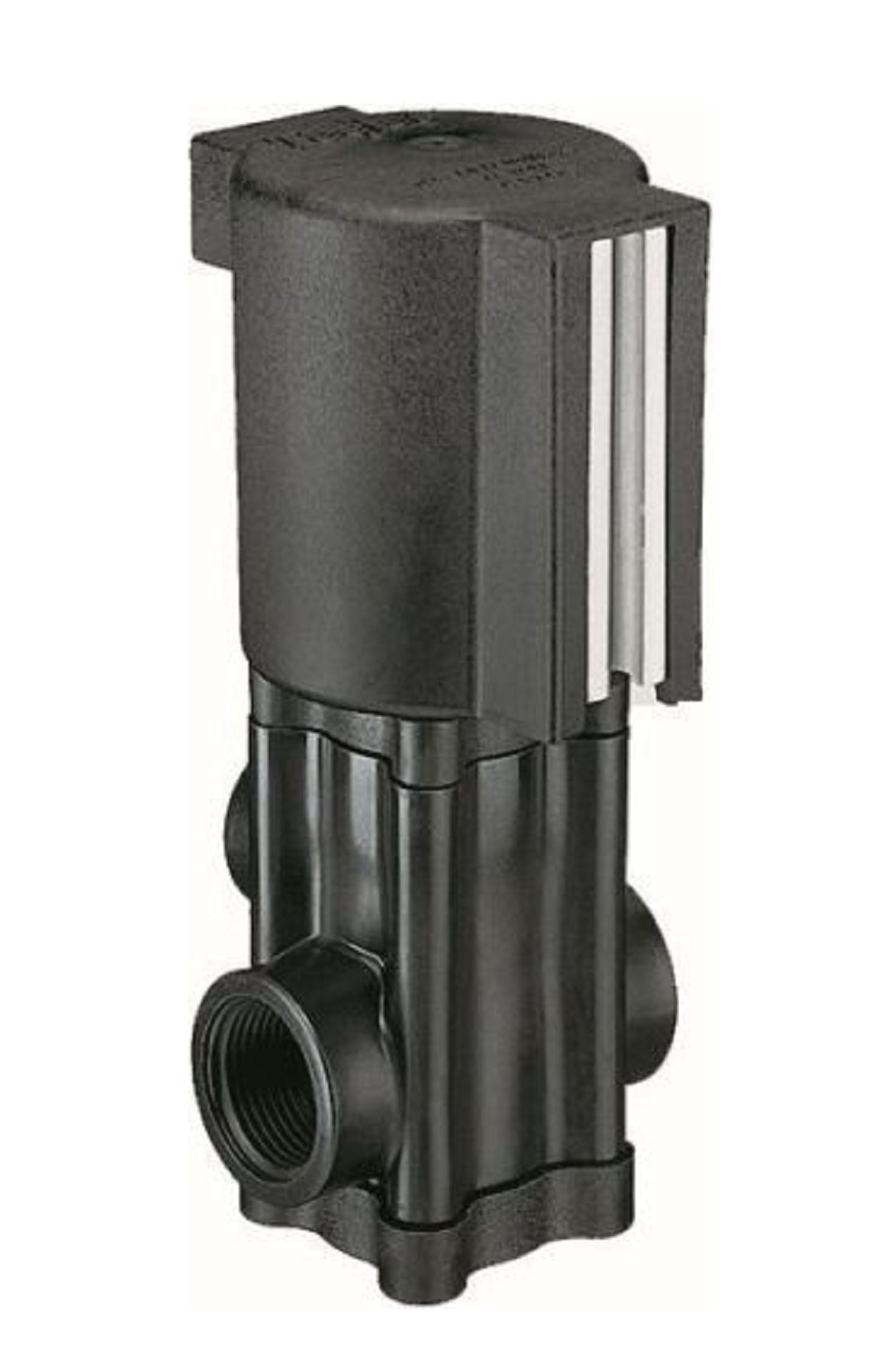

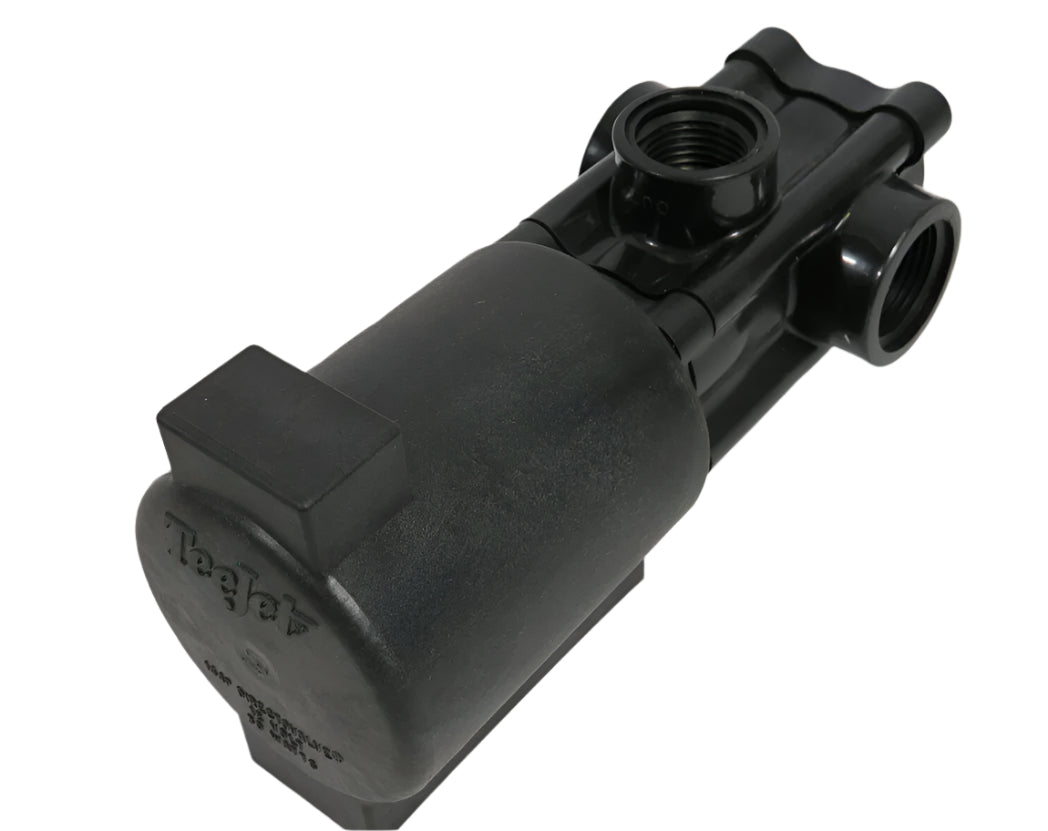

The TeeJet AA144P-1 DirectoValve Control Valve is a direct-acting, 2-way electric solenoid valve that provides a remote on/off boom control in low pressure spraying applications for agricultural and turf sprayers. Continuous flow can be achieved through the bypass connection, with flow to the spray line controlled by the valve's on/off action.

Features:

• Flow Rate: 10 gpm @ 5 psi pressure drop, 14 gpm @ 10 psi pressure drop
• Max. Pressure: 100 psi
• Current Draw: 2.5 Amps
• Inlet Size: Two 3/4" NPT
• Outlet Size: 1/2" NPT
• Polypropylene body
• Fabric reinforced Viton diaphragms and seat washer
• Stainless steel wetted parts
• Operates on 12V DC systems
• Encapsulated coil and magnetic circuit
• Does not require stroke adjustment
