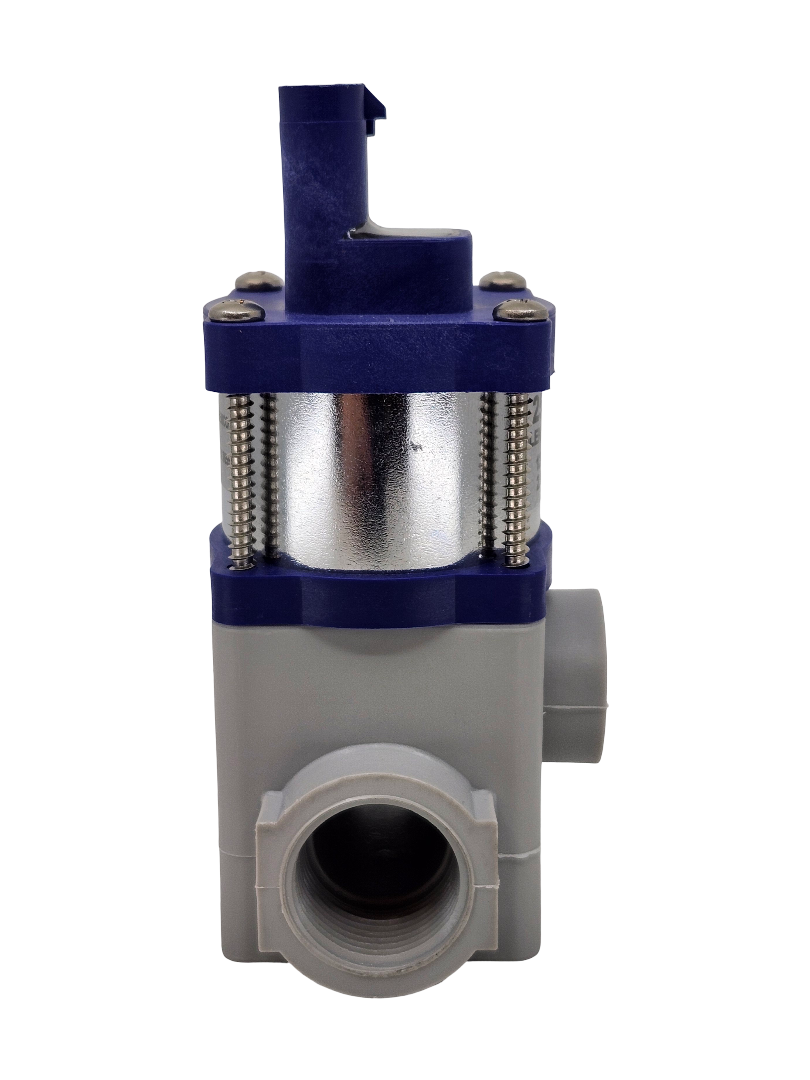

Texas Remcor 2 Way Direct Operating E-Chip Solenoid Valve 8 GPM - SV.2502B.1.WP.C

Texas Remcor 2 Way Direct Operating E-Chip Solenoid Valve 8 GPM - SV.2502B.1.WP.C

TIR E-Chip:
By integrating a small-interface electronic board into the valve, the power consumption, input voltage, and operating temperatures are reduced.

Upon the introduction of power, the driver allows full current to the valve during a time called "Pull-in." After "Pull-in," amperage is reduced by 66% of normal valve amperage requirements. With this integration of the TIR E-Chip™, coil discharge that causes reverse voltage also becomes less of an issue.

Specs:
Weight: 1.5 lbs
Dimensions: 8 × 6 × 6 cm
Valve Type: 2-Way Direct Operating
Flow Type: High Flow
Output: 0-8 GPM
Maximum Pressure: 175 PSI
Power Connection Type: Weather-Pack 2 Pin Shroud
Voltage: 12 Volt D.C.
Pressure Drop: 5 PSI at 8 GPM
STD. Current Draw: 2 AMPs
CV Rating: 3.6
Valve Housing: Glass-Filled Nylon 6/6
Wetted Metal Parts: 430F SS
Coil: TIR E-Chip™ Technology
Diaphragm/Seat/Seals: Viton
Inlets: .75" NPT Female Bypass
Outlets: .75" NPT Male Bypass ' .5" NPT Female Boom
Manifold: Manifold Stackable
