Hudson Valve Automatic High Volume Fast Fill 1 Inch Fill Valve - Hudson Valve V

Hudson Valve Automatic High Volume Fast Fill 1 Inch Fill Valve - Hudson Valve V

This Hudson Valve Water Tank Valve is a compact, virtually indestructible valve that is well adapted to a wide variety of applications, from personal home use to large-scale industrial use. This water tank valve is ideal for any application where it is necessary to control the level of fluid. The unique patented design of the stock tank water valve uses fluid pressure, as opposed to a lever arm and ball, as the force to close the valve. When properly installed, the water tank level control valve will meet anti-siphon requirements.

Fully assembled
1" Female thread
No lever arm
No float ball
Fills fast
No exterior moving parts
Resistant to freezing
Indestructible stock tank water valve
Installs in seconds
High volume capacity

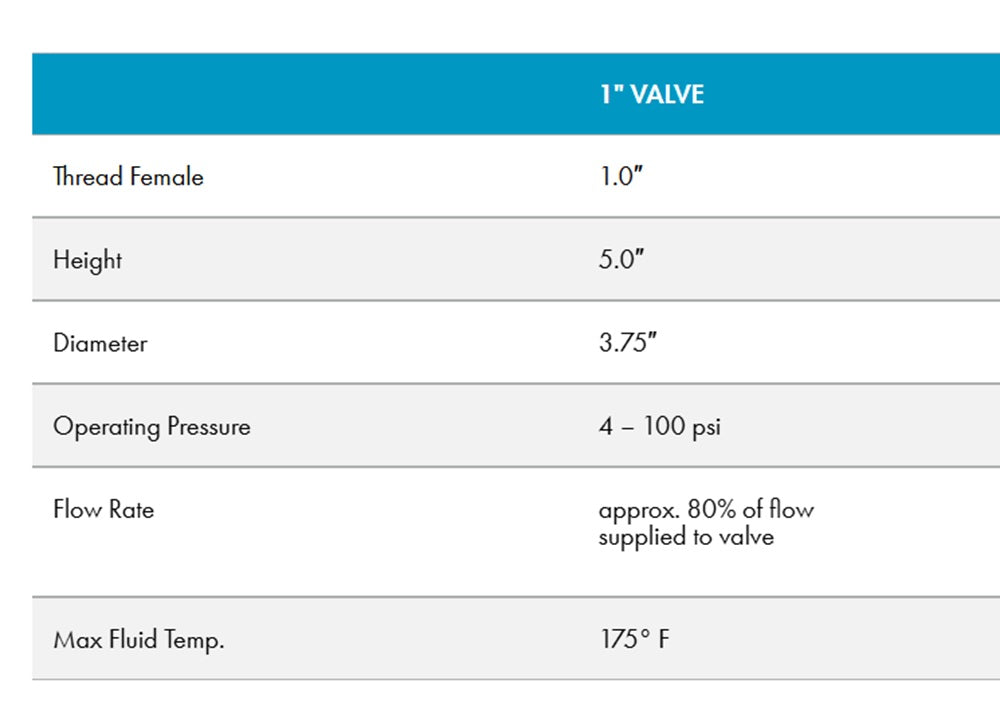

Operating pressure: 4-100 PSI
Flow rate: approximately 80% of flow supplied to valve
Max fluid temp: 175° F
Water tank valve has anti-siphon feature
Rust-proof water tank level control valve
Compact, self-contained design greatly enhances the valve's reliability

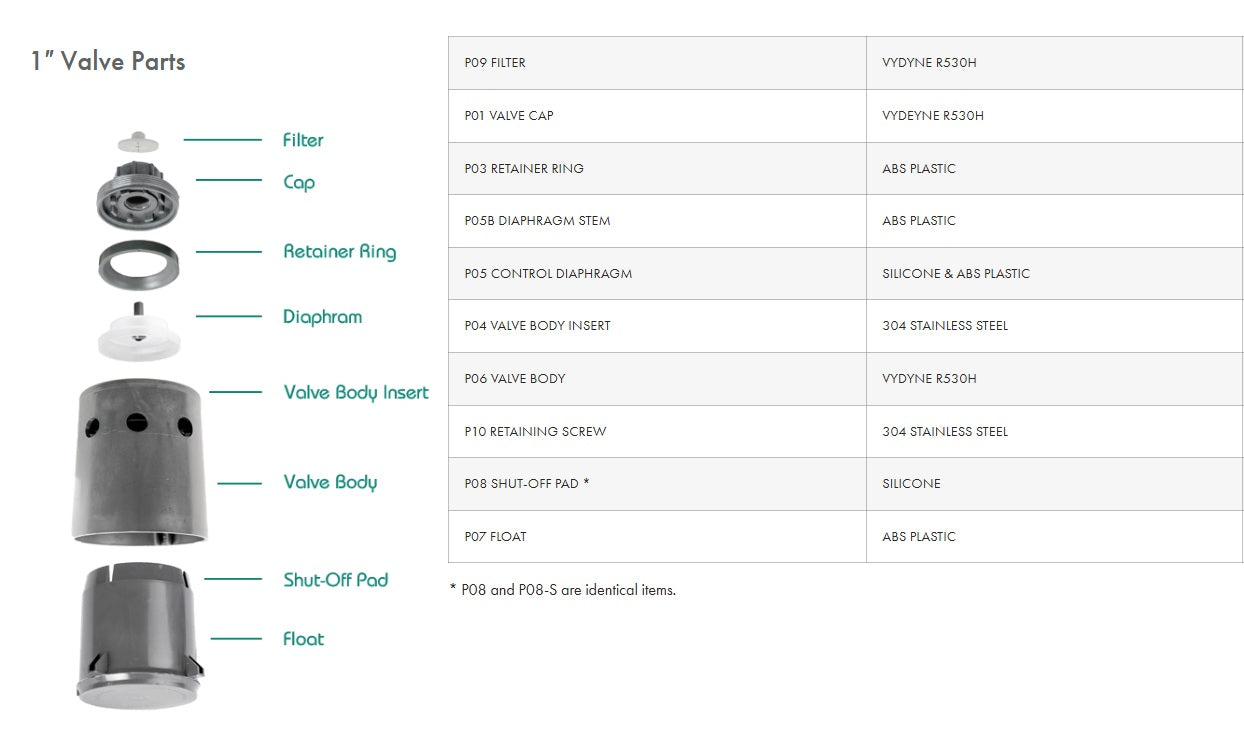

Valve body is made of durable glass-filled nylon 6/6
Internal parts are of ABS plastic, silicone, and stainless steel
Applications: pools, ponds, fountains, cattle trough/stock tank, reserve tank valve
