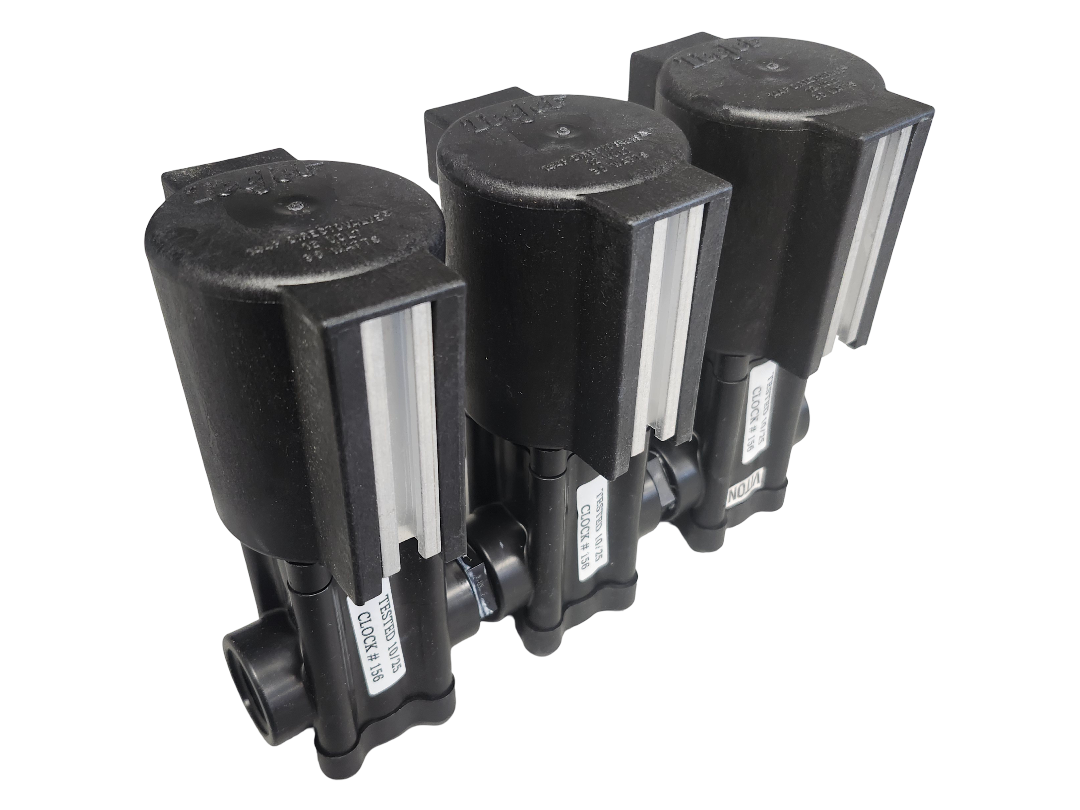

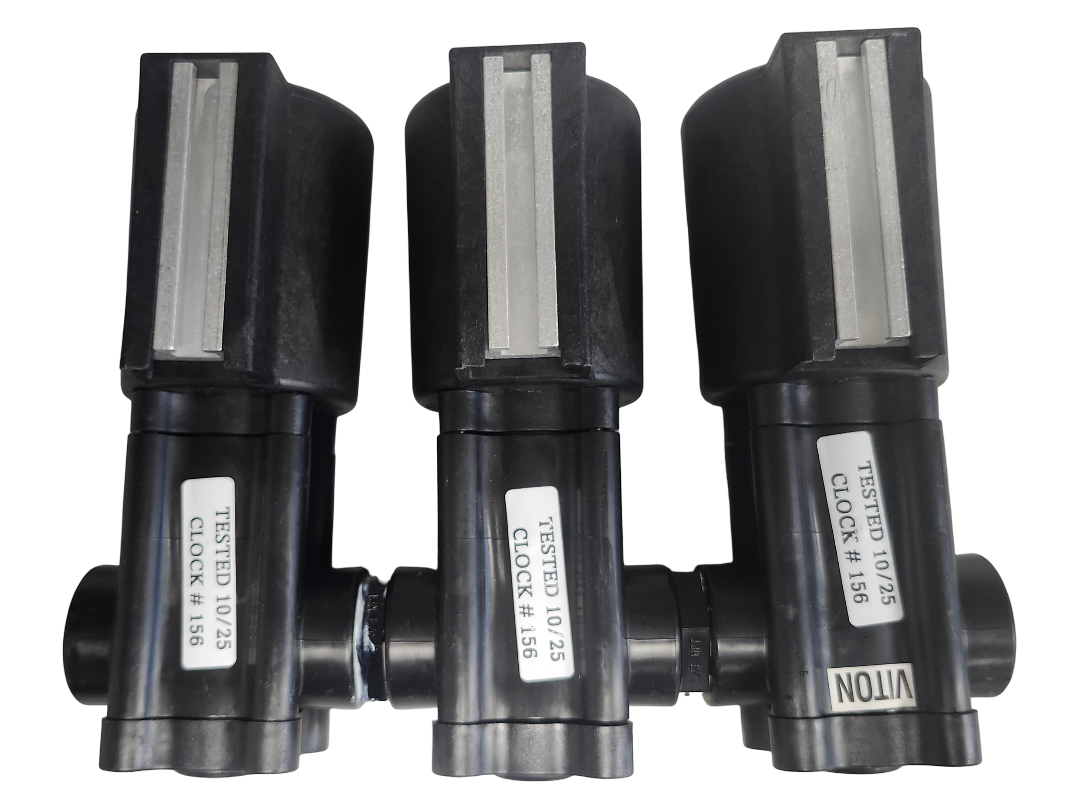

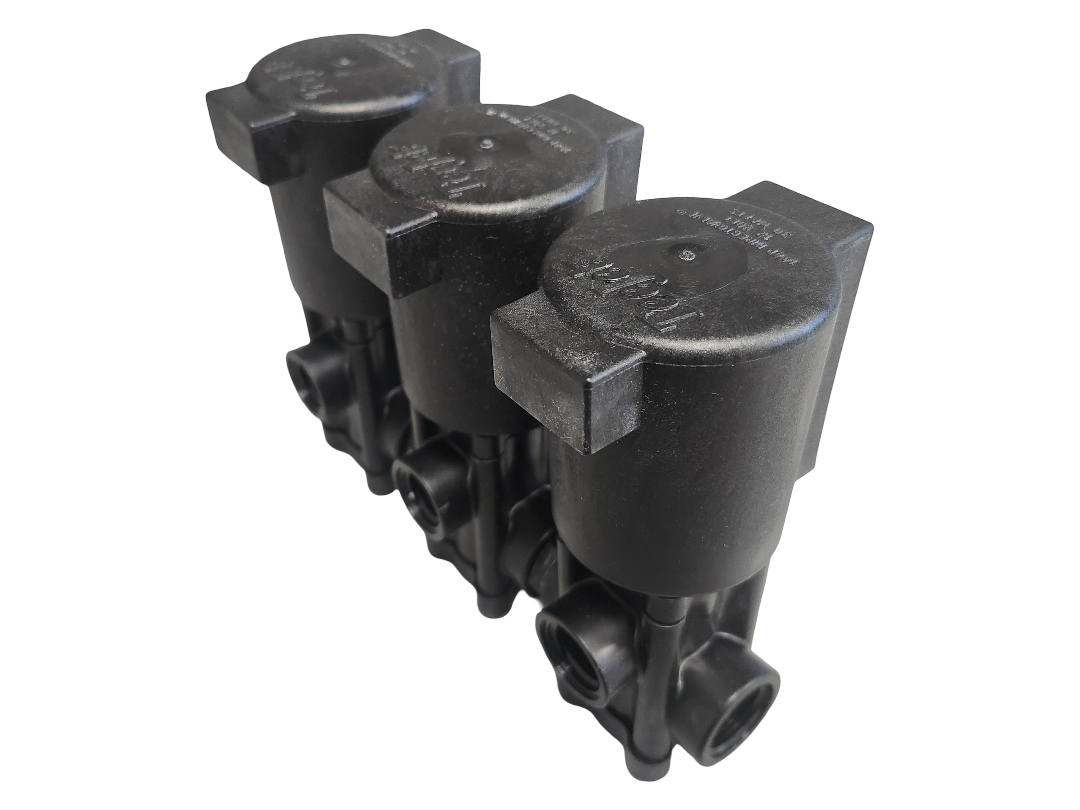

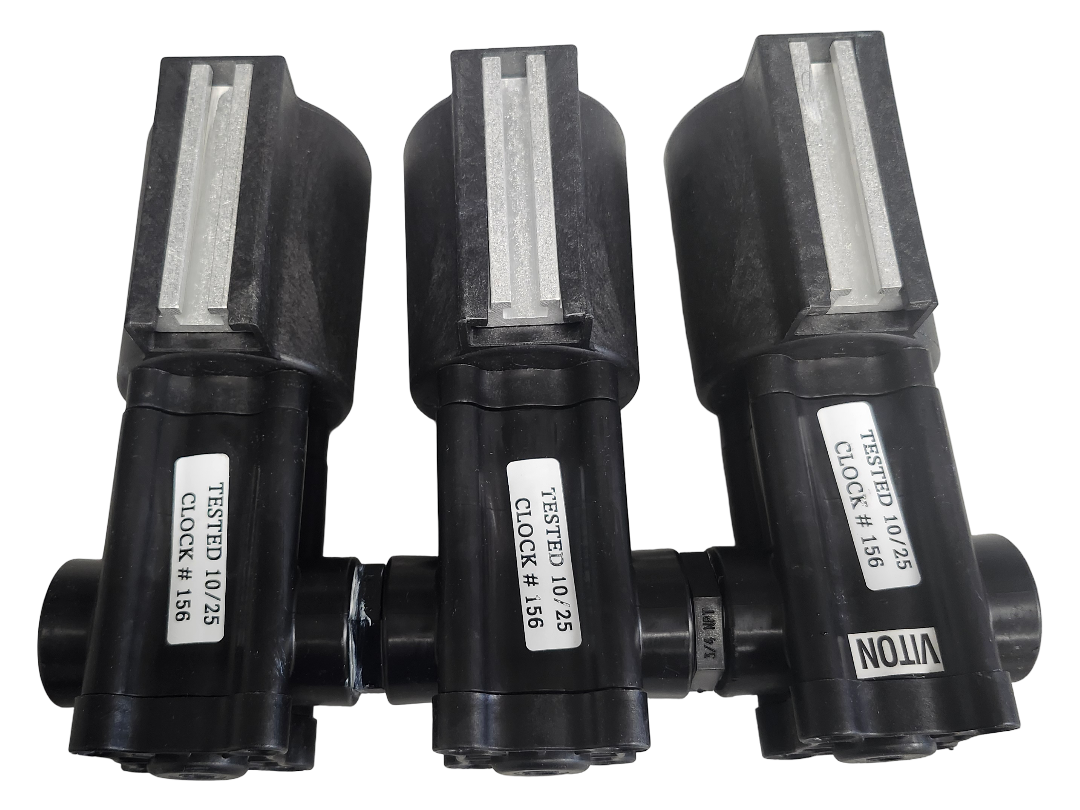

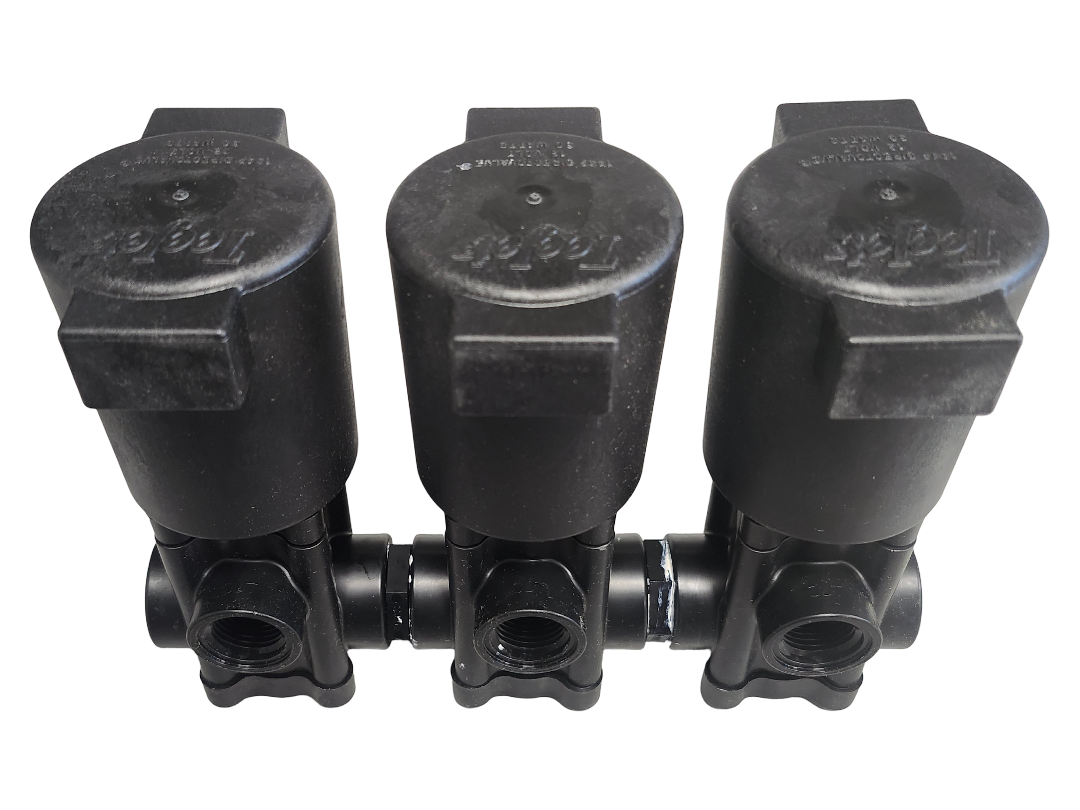

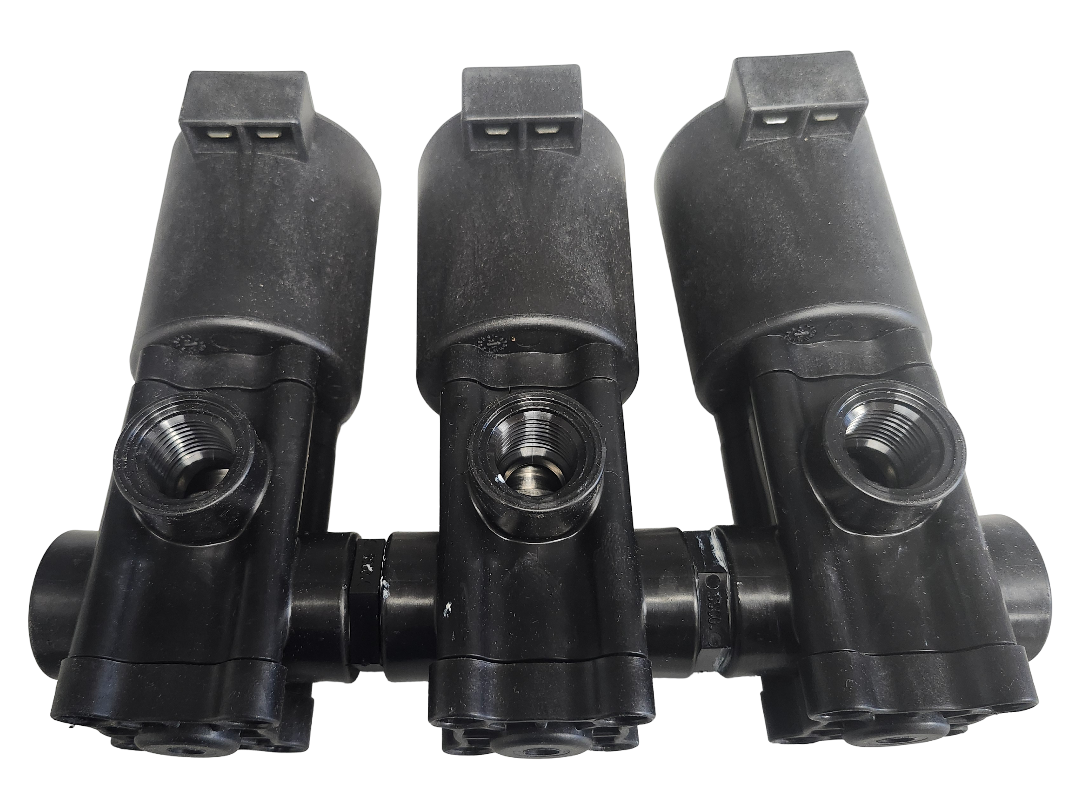

TeeJet DirectoValve Bank of 3 Electronic Controlled Solenoid Valves - AA144P-3

The M144P high-pressure solenoid-operated directovalve was specifically designed to provide a remote on-off boom control for agricultural and turf sprayers. It is powered by the rig's 12-volt D.C. electrical system and is direct-acting, with large internal flow chambers, thereby making it suitable for wettable powder applications. The unit is compatible with the Spraying Systems' sprayer controls.

Features include:
• Bank of 3
• Operating pressure range 0 to 100 psi (0 to 7.0 bar)
• Two 3/4" NPT inlet connections to provide continuous bypass flow.
• 1/2" NPT outlet to spray line.
• Large flow capacities only 5 p.s.i. (0.35 bar) pressure drop with 10 g.p.m. flow.
• Mounting slot for 6 mm hex bolt as
• Nylon encapsulated 12 VDC coil with
Recessed 1/4" quick connect terminals
Power requirement 2.5 amp.
• Excellent corrosion resistance.
• Polypropylene valve body.
• Internal metal parts are stainless steel.
• Chemical-resistant Viton seat washer and diaphragms.
• Solenoid requires no adjustment.
