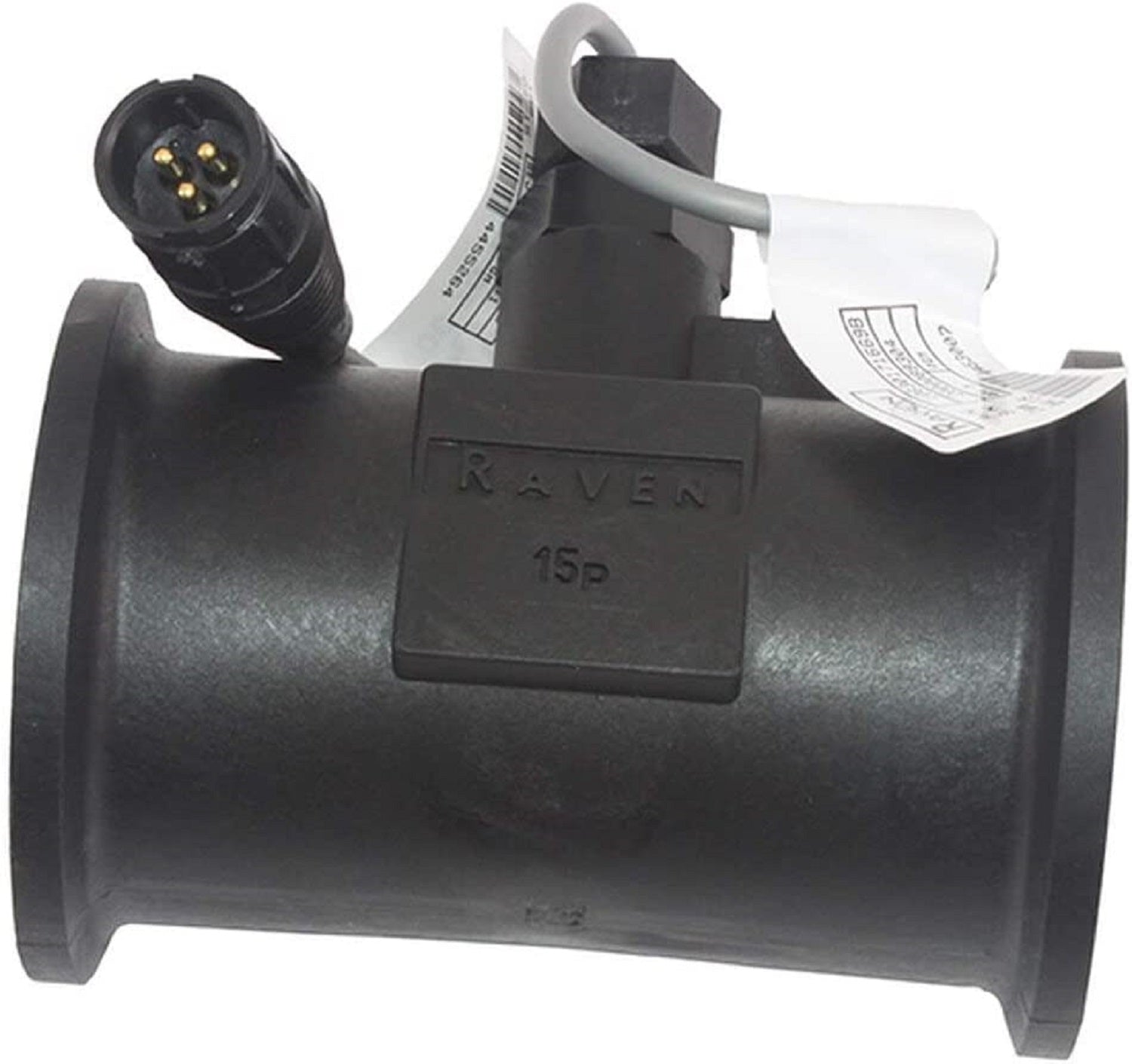

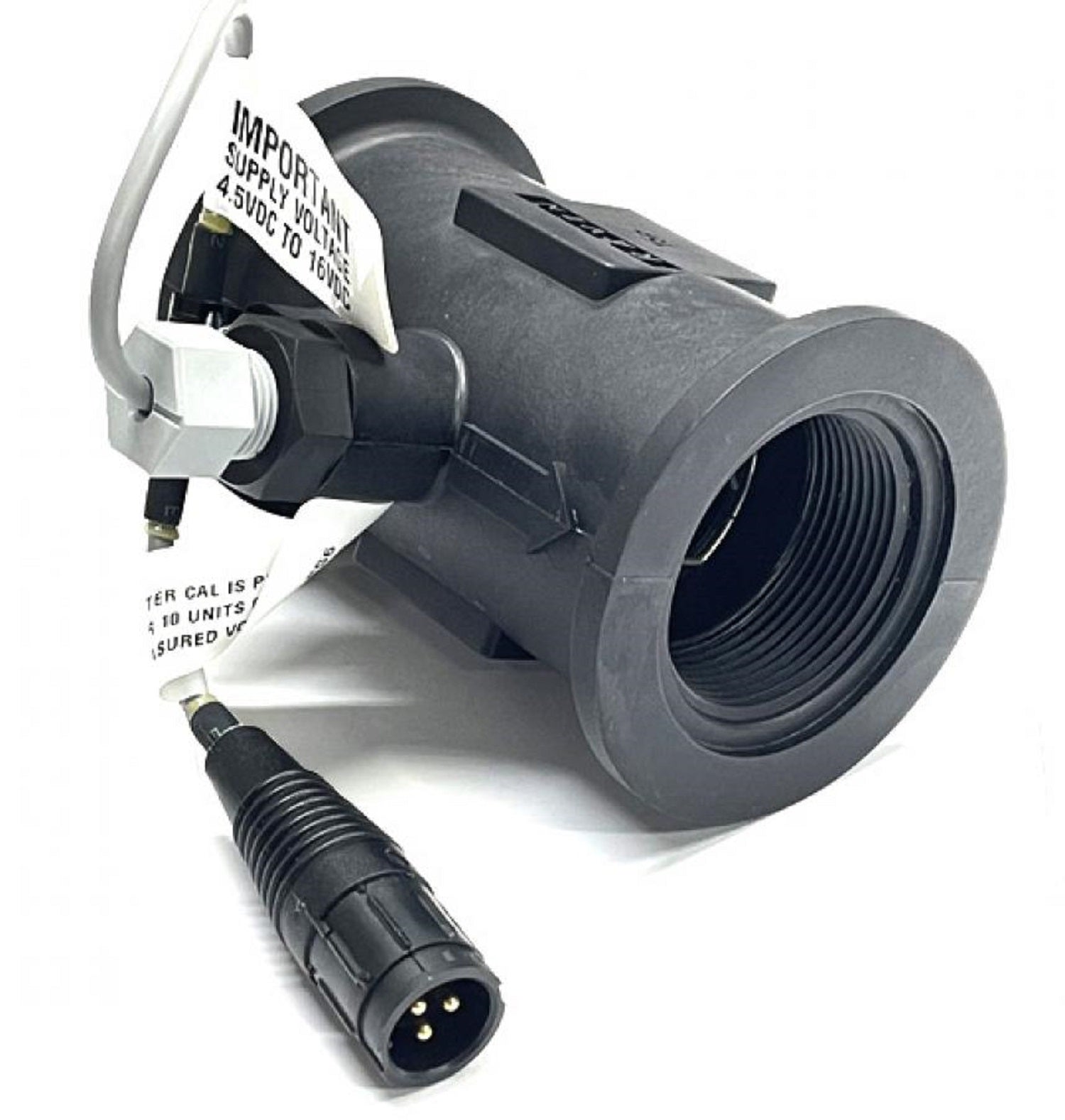

Raven Flowmeter RFM-15 Flanged High Pulse (M200/1.5" FPT) - 063-0172-058

063-0172-058 Raven Flowmeter RFM-15 Flanged HP (M200/1.5" FPT)

LIQUID FLOW SENSOR: Made to measure the flow of a range of liquids flowing at various rates, this flow sensor is an ideal device for the farming industry. It can be used for personal and professional agricultural applications.
ROBUST CONSTRUCTION: The polypropylene construction of this fluid volume meter ensures a robust structure. It offers resistance against various abrasive factors, ensuring reliable performance.
ERGONOMIC DESIGN: WITH A 50:1 turn down ration, the flow gauge ensures accuracy and precision in measuring the volume of fluid flowing. With FNTP ports or M200 flanged, it ensures hassle-free usage.
APPLICATIONS: The polypropylene flow rate sensor is compatible to be used with most chemicals and liquids. The turbine mechanism makes this device easy to install and operate.
PRODUCT SPECIFICATIONS: With 1-1/2 in. FNPT ports, the Raven Flow Meter features 72 pulses/gal, 0.3-15 GPM rated capacity. It can work at 175 PSI pressure, 5V DC voltage, and 10mA supply current. It weighs 0.45 kg.

(REPLACES 063-0172-040)
