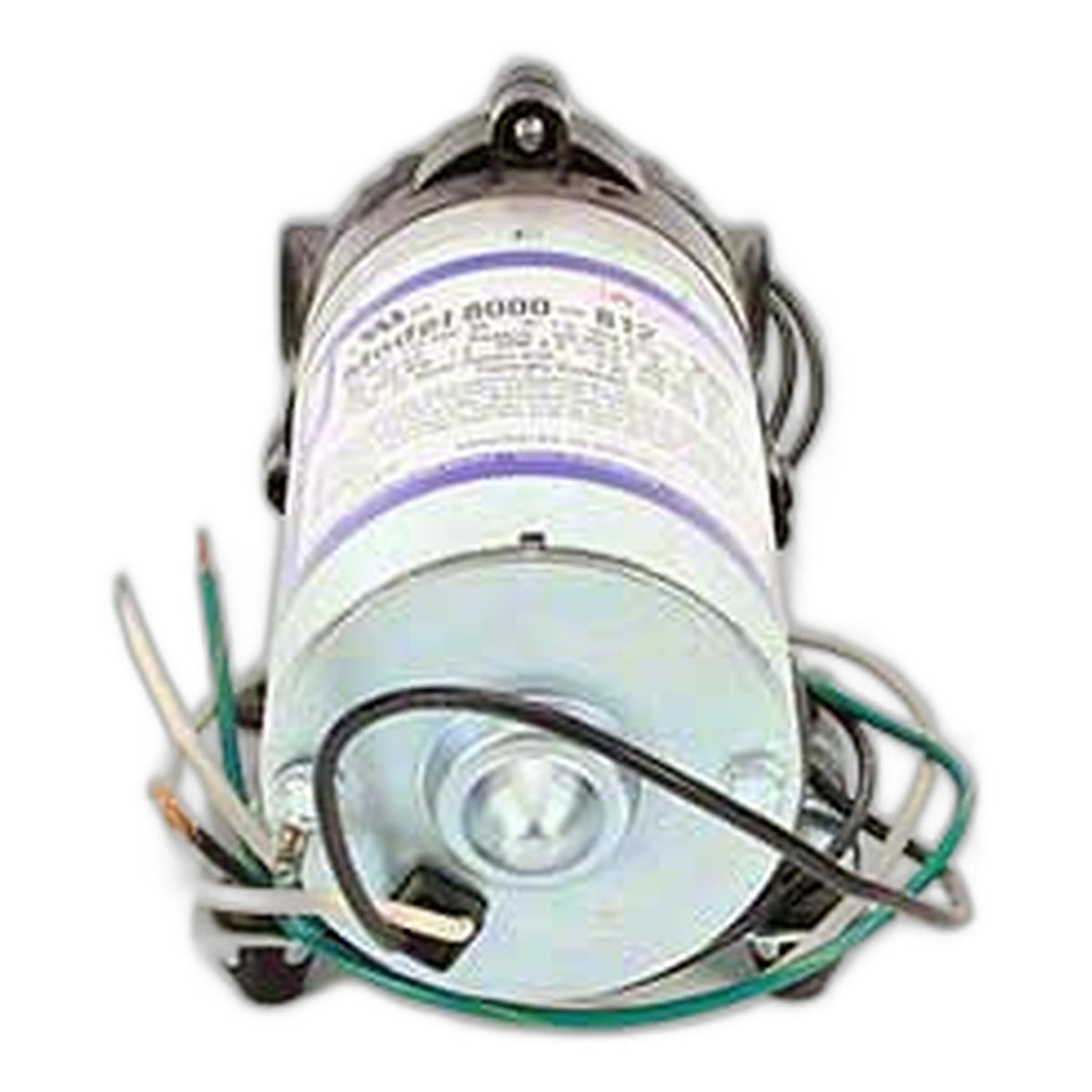

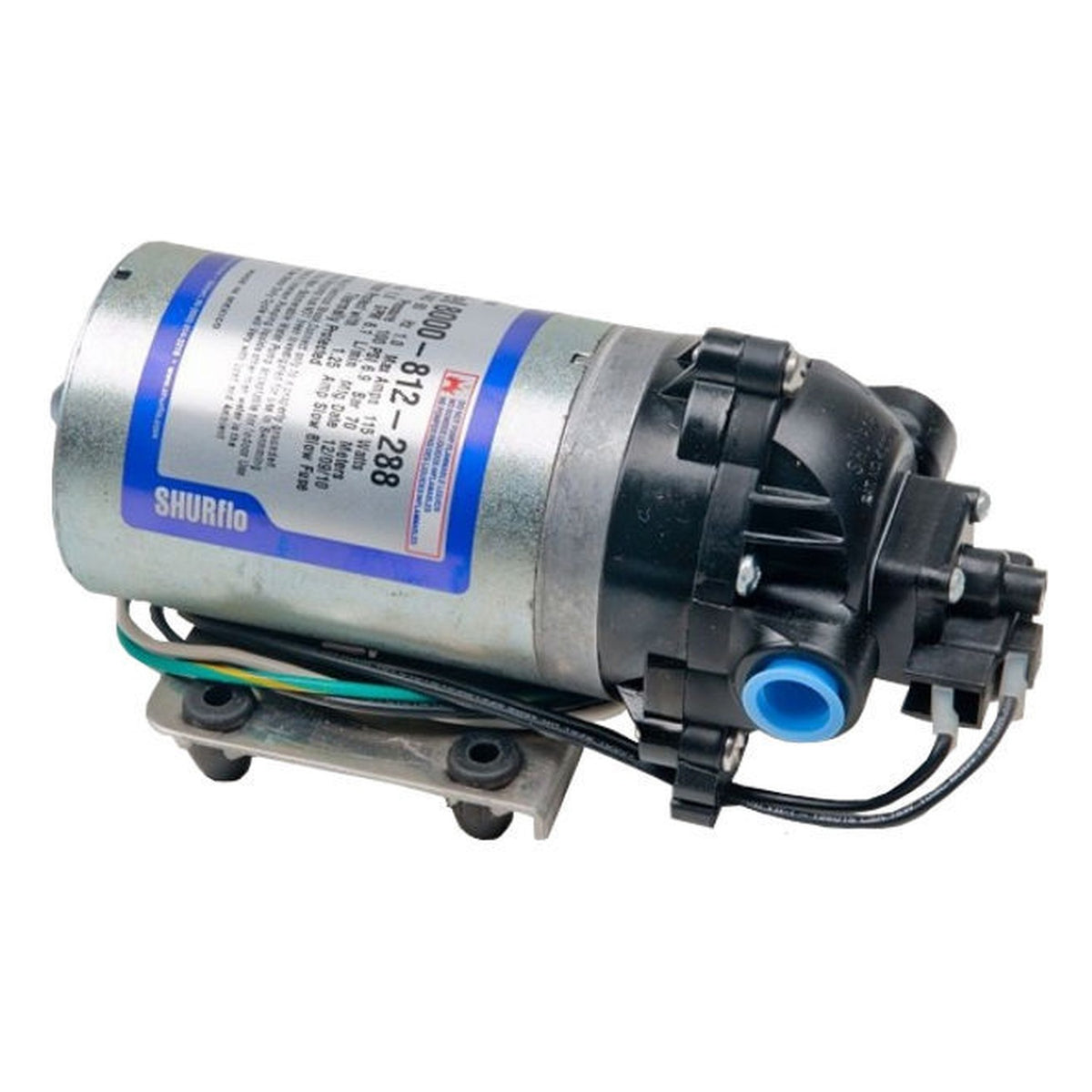

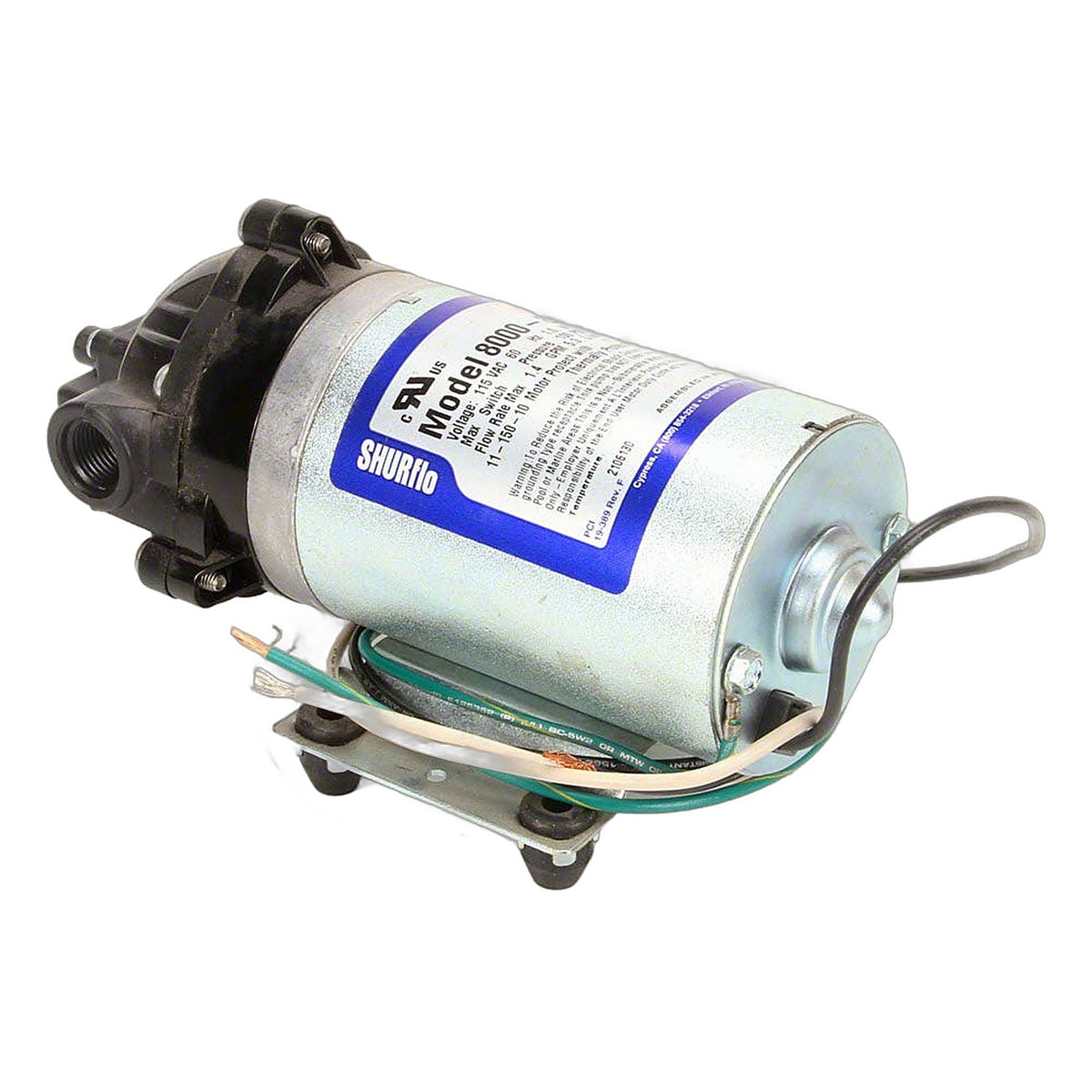

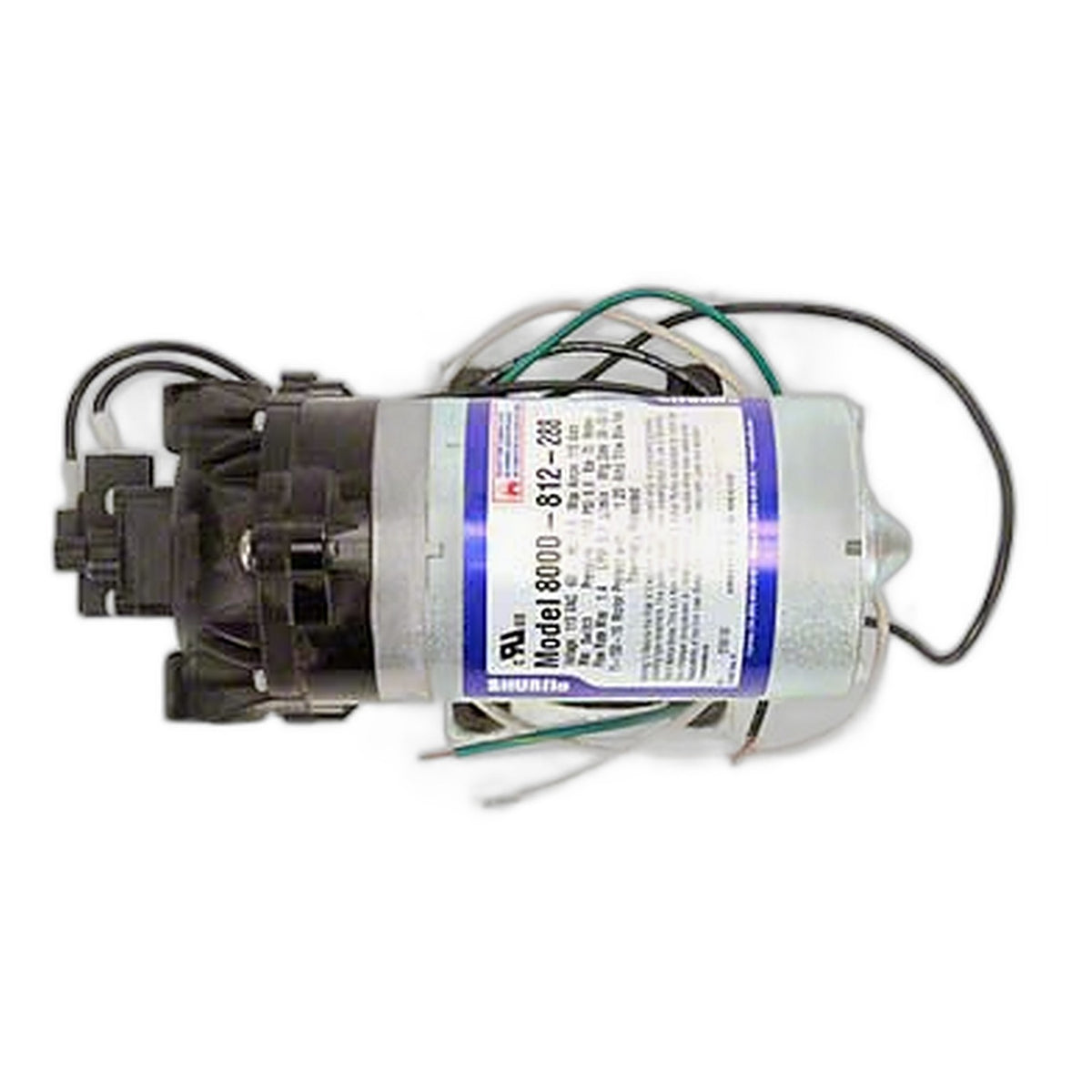

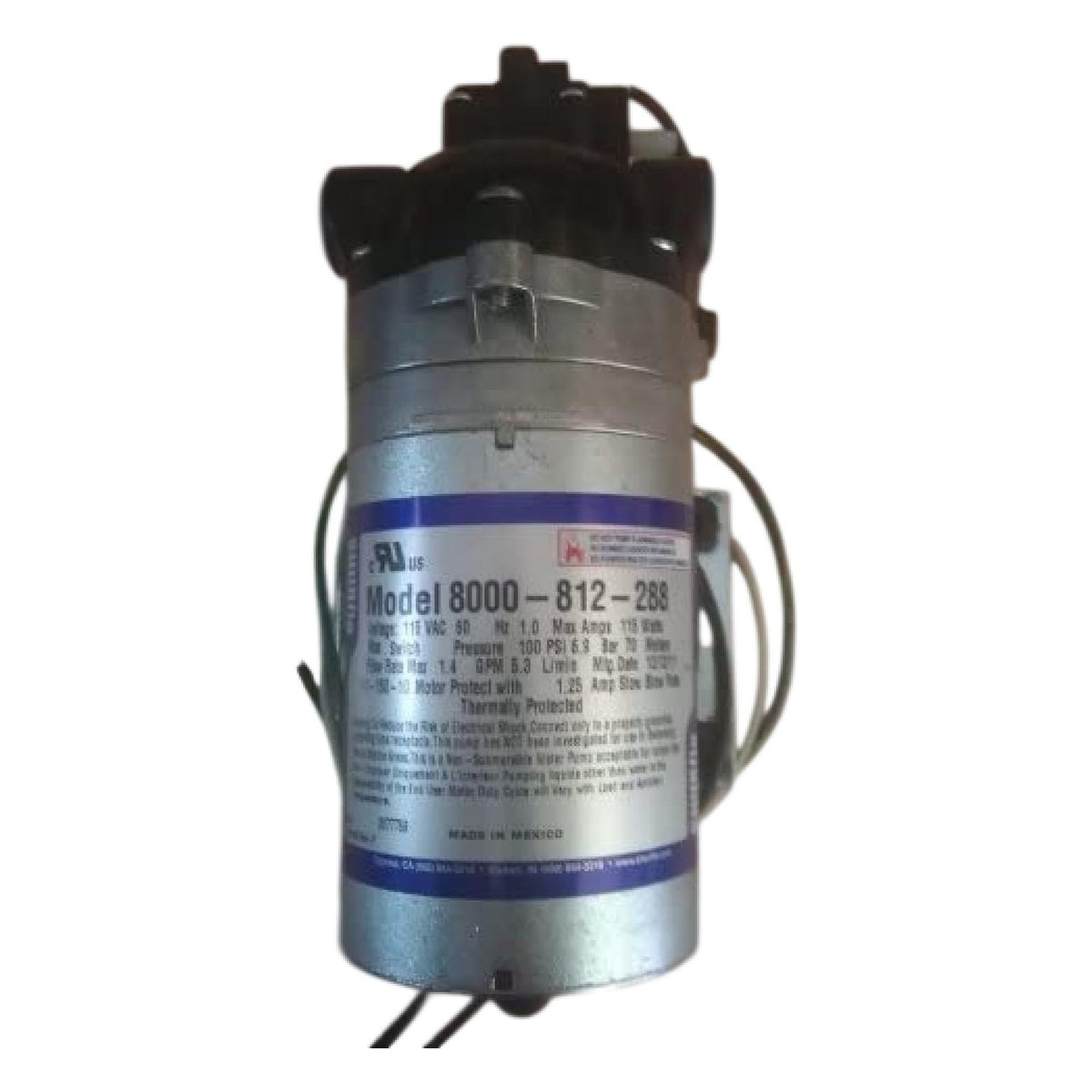

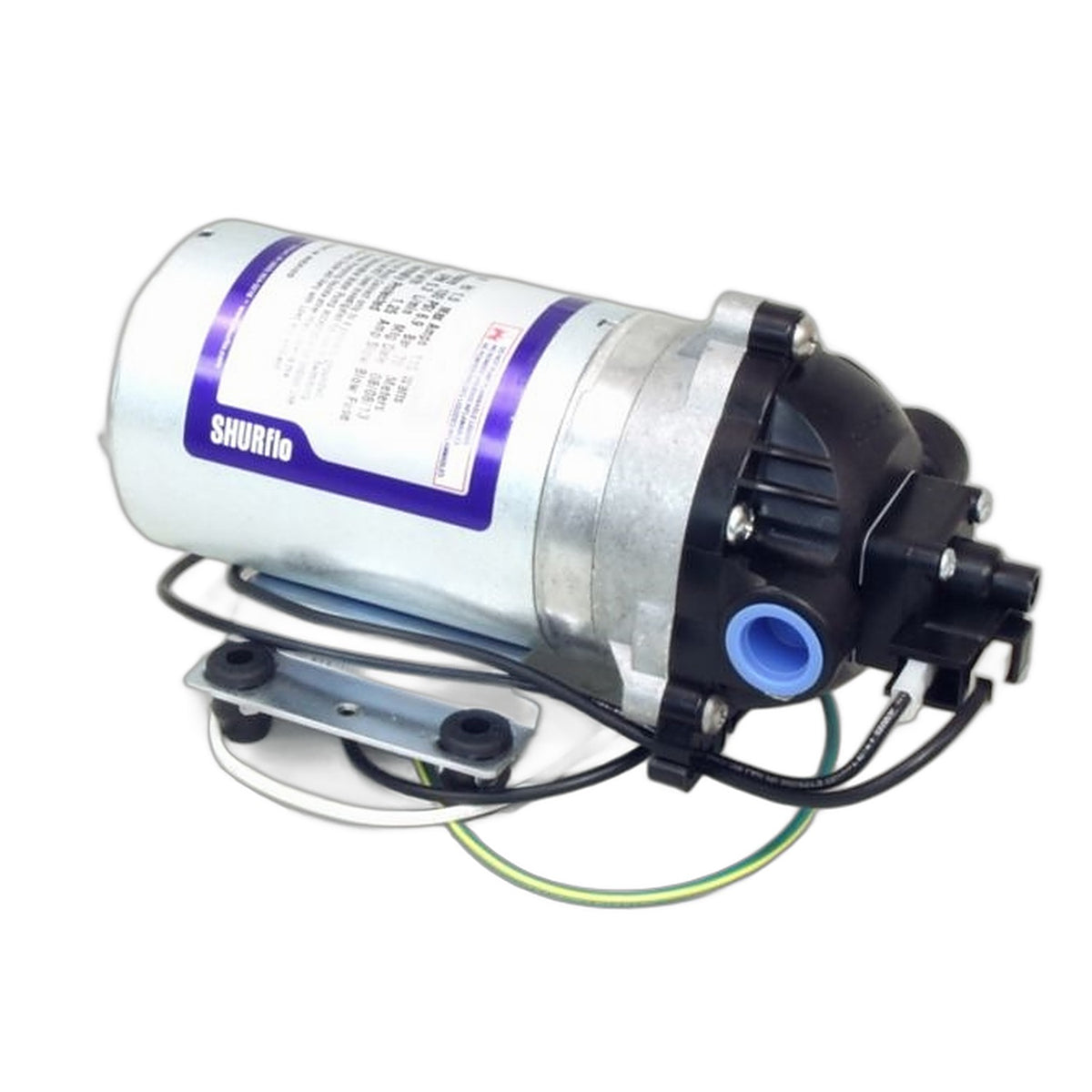

Shurflo Pressure Switch Diaphragm Pump 115V Max 1.3 GPM 100 PSI - 8000-812-288

Genuine Shurflo (Pentair) 8000 Series automatic demand diaphragm pump for soil extraction applications. This is an original Shurflo pump, not a copy or house brand.

Powered by 115V AC, this positive-displacement, 3-chamber pump delivers 1.3 GPM open flow. The adjustable pressure switch is factory set to shut off at 100 PSI and turn on at 85 PSI ±5 PSI. An internal bypass is set at 80 PSI.

The permanent-magnet motor includes thermal protection. Nylon construction, Viton valves, and a Santoprene main diaphragm provide the pump's fluid-handling components. This model is rated for intermittent duty.

Specifications

• Model: 8000-812-288
• Series: Shurflo 8000
• Pump design: Positive displacement, 3-chamber diaphragm
• Power: 115 VAC nominal
• Open flow: 1.3 GPM (4.9 L/min)
• Factory pressure settings: 100 PSI shutoff / 85 PSI ±5 PSI turn-on
• Pressure switch shutoff adjustment range: 80–100 PSI
• Internal bypass setting: 80 PSI
• Self-priming: Up to 7 ft vertically
• Maximum inlet pressure: 30 PSI (2.1 bar)
• Maximum liquid temperature: 180°F (82°C)
• Duty rating: Intermittent
• Typical application: Soil extraction

Construction and Electrical

• Plastic components: Nylon
• Valves: Viton
• Main diaphragm: Santoprene
• Pressure switch diaphragm: Viton
• Fasteners: Zinc-plated steel
• Motor: Thermally protected permanent magnet
• Motor part number: 11-150-10
• Recognition: UL/CSA recognized component

Connections, Dimensions and Mounting

• Inlet and outlet: 3/8-inch–18 female NPT
• Pump dimensions: 8.38 in L × 4.00 in W × 4.24 in H (213 × 102 × 108 mm)
• Mounting: Integral feet with four 0.188-inch (4.8 mm) mounting holes
• Installation position: Can be mounted in any position
• Net weight: 4.9 lb (2.2 kg)

The 1.3 GPM rating is measured at open flow, not at the 100 PSI shutoff pressure. Verify compatibility with the liquid being pumped before use.
