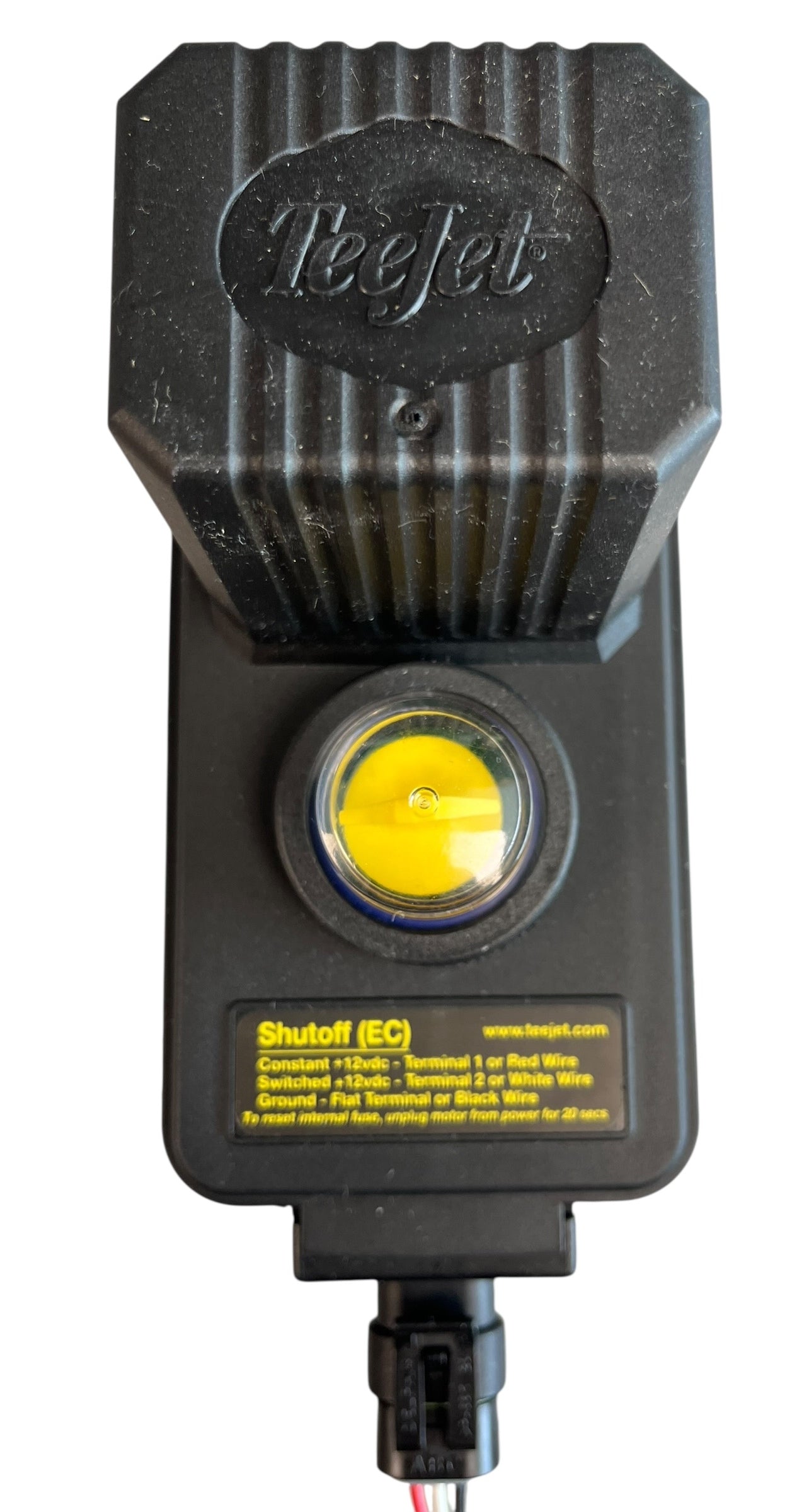

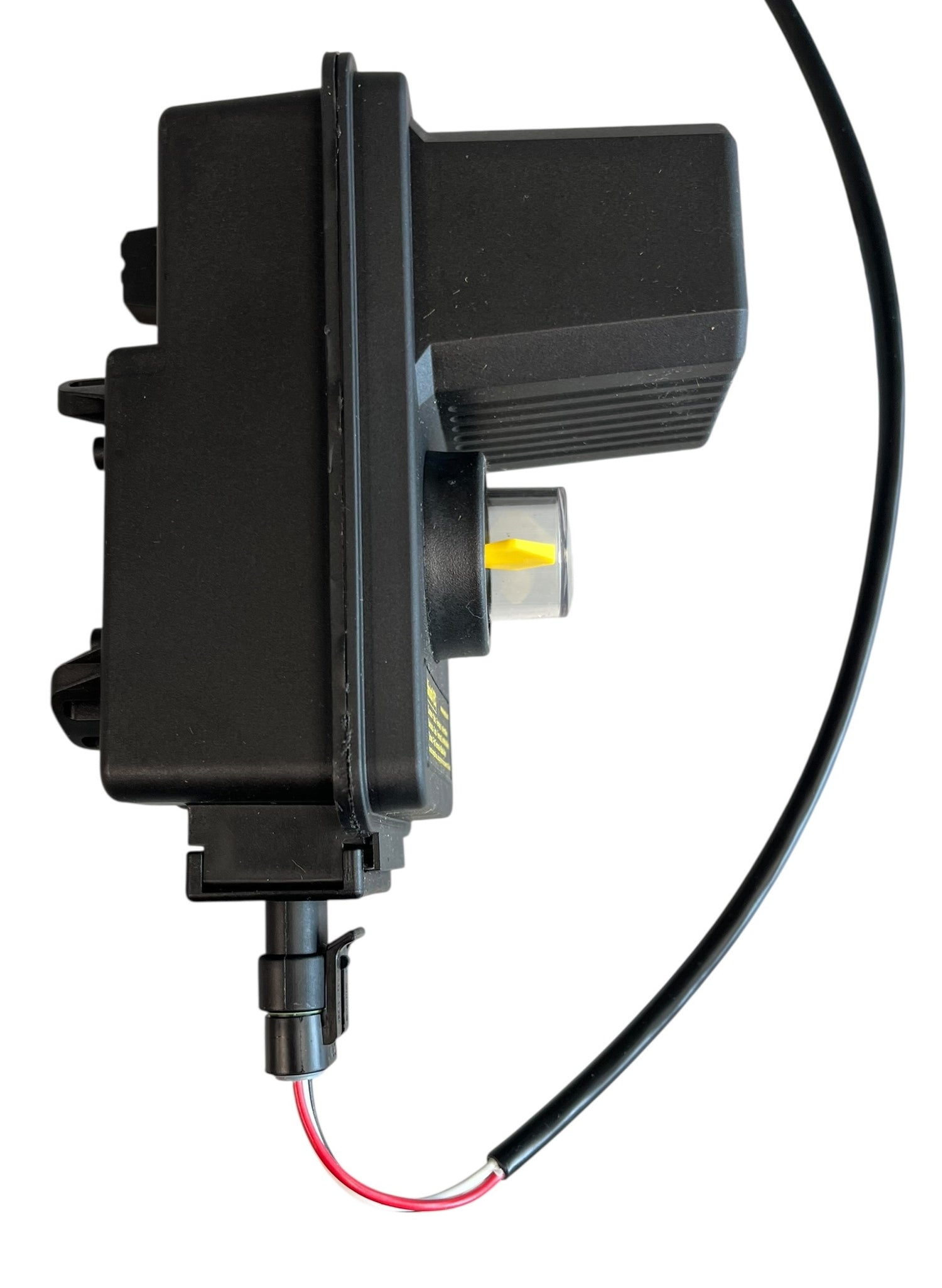

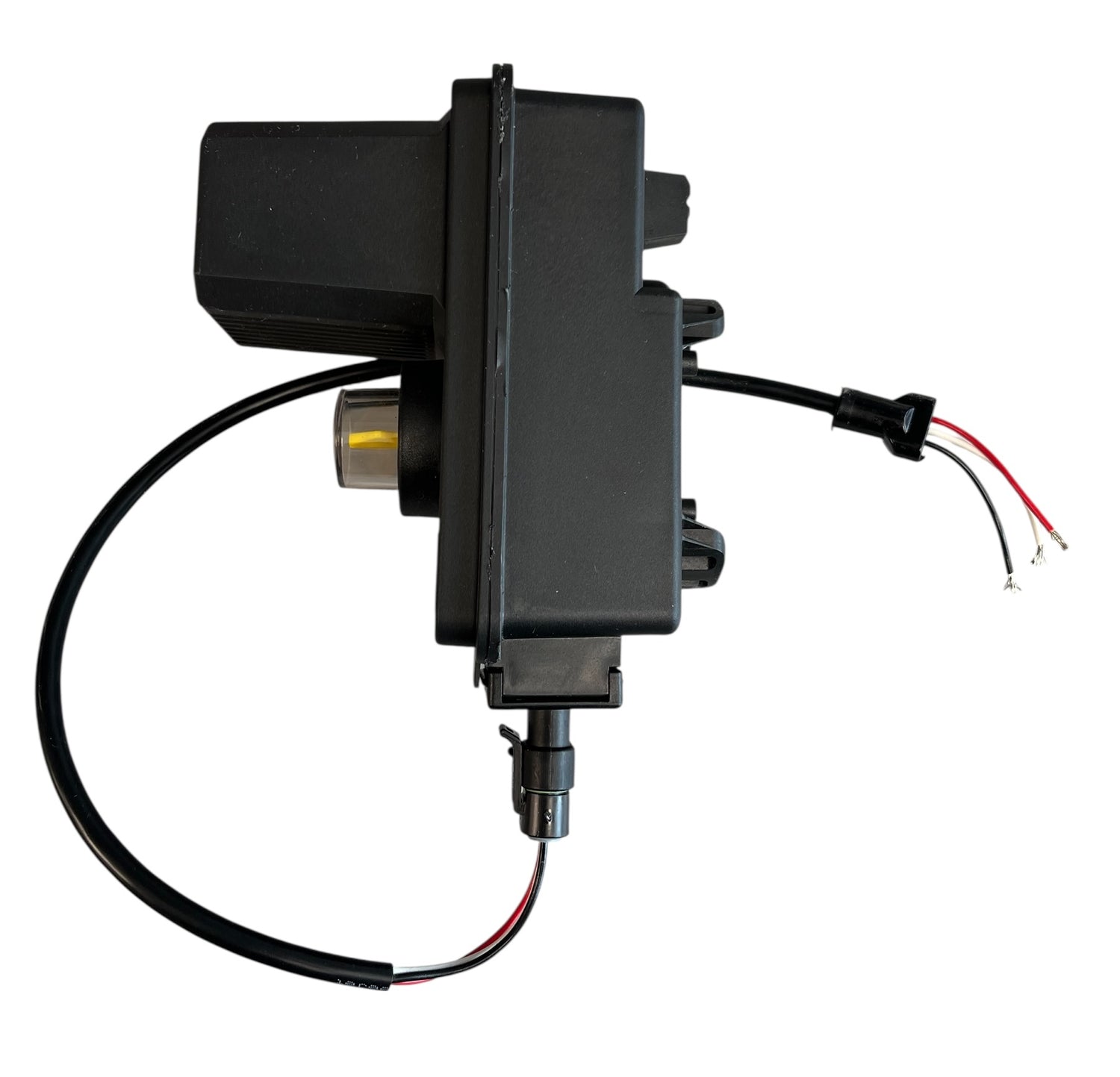

TeeJet DirectoValve BEC Positive Switch Replacement Motor - 50515-25CP05

TeeJet 344B Series BEC Positive Switch Replacement Motor - 50515-25CP05
Compatible with 346B, 356 AND 490 Series Electric Ball Valves
BEC Positive Switch Motor
Current Draw (AMPS) for 346B: 1.75, for 356, 490: 2.2

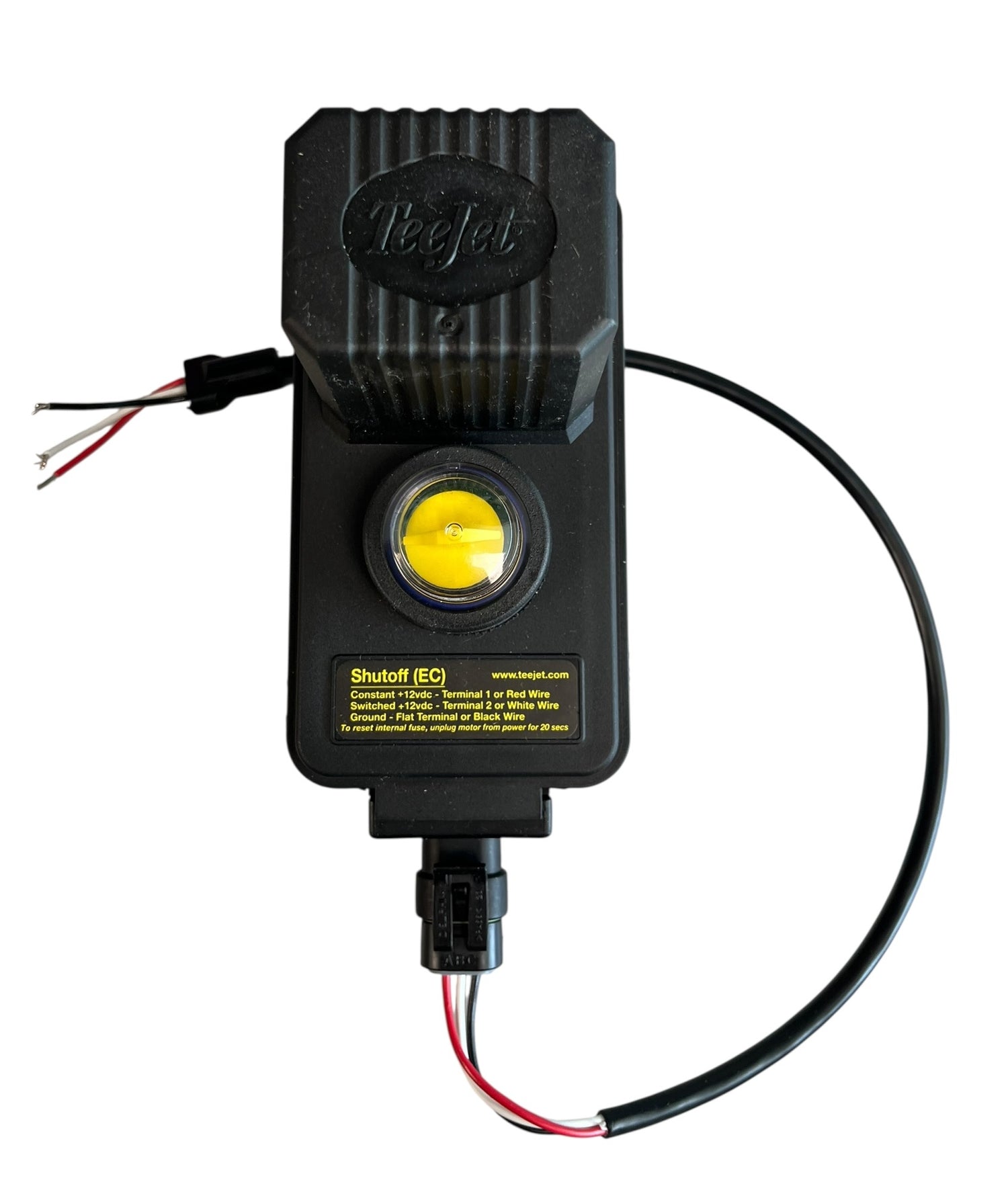

1.5 (0.5 meter) cable
Internal fuse protects the valve and your electrical system, and it resets automatically by disconnecting power to the motor for 20 seconds
Direct coupled visual indicator to verify position/operation. Yellow oval indicates 22 RPM motor, yellow diamond indicates 25 RPM motor
Cover fits snugly over the motor cavity to reduce air space and eliminate condensation. It's sealed and sonically welded to comply with the IP67 rating for submersion under water
Double-wall construction of the gearbox increases strength and maintains permanent lubrication of the durable, all-metal gears
Motor head assembly is easily detached by pulling a retaining pin allowing manual operation or easy replacement of the motor
