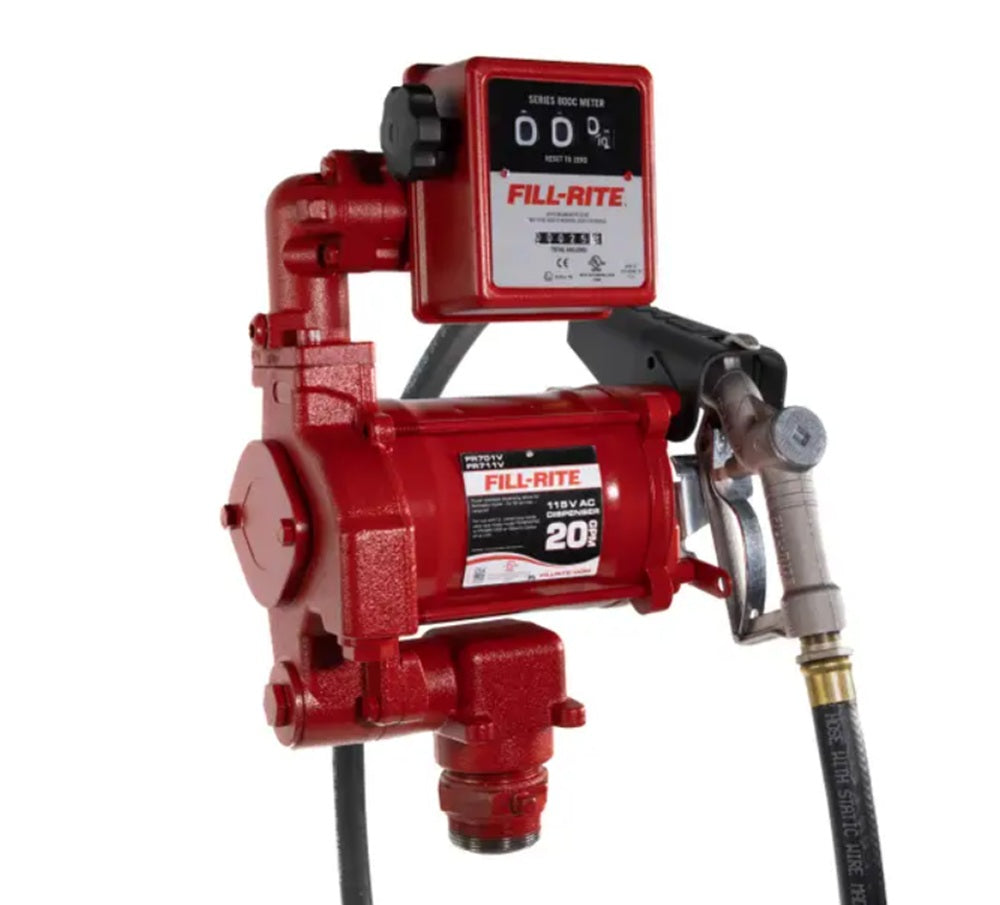

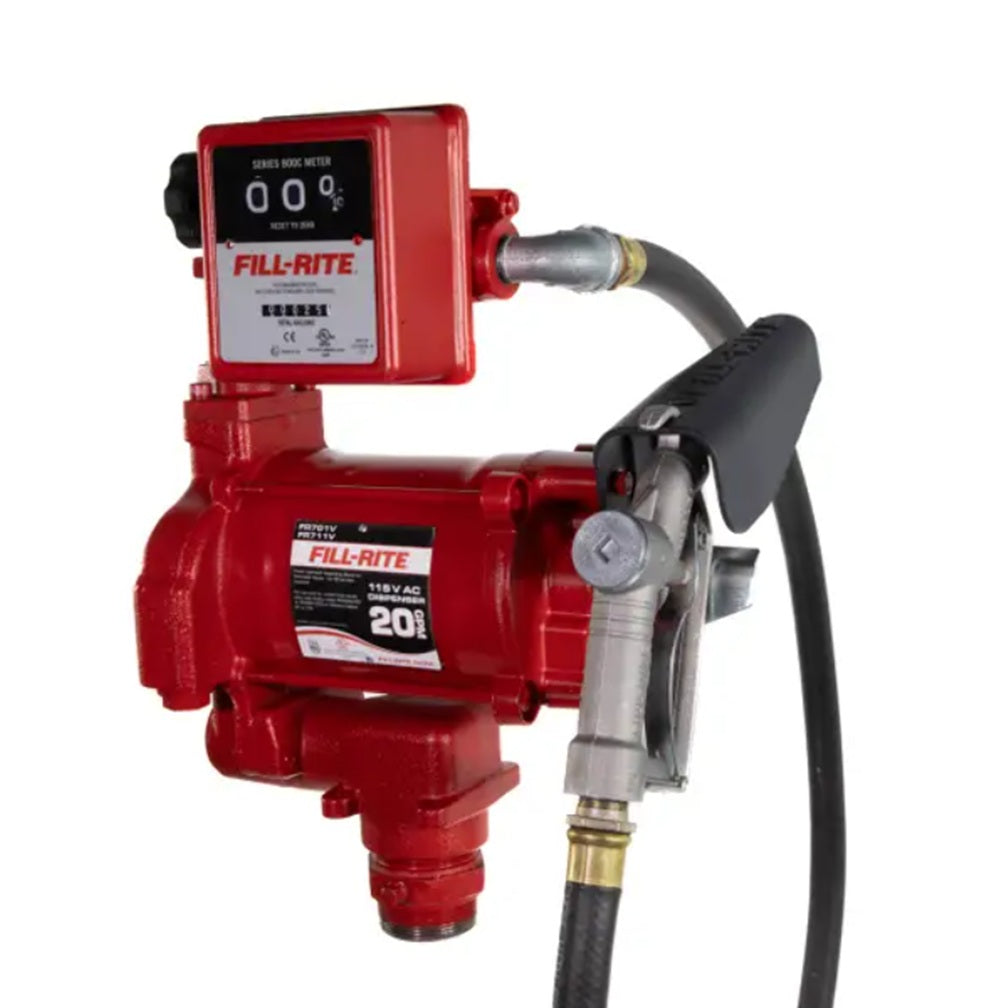

Fill Rite 20 GPM 115 Volt Cast Iron Fuel Transfer Pump with Meter, Hose, And 3/4" Nozzle, 1/3 HP - FR701V

Fill-Rite Cast Iron Fuel Transfer Pump With Meter, Hose And Nozzle 115 V AC - FR701V

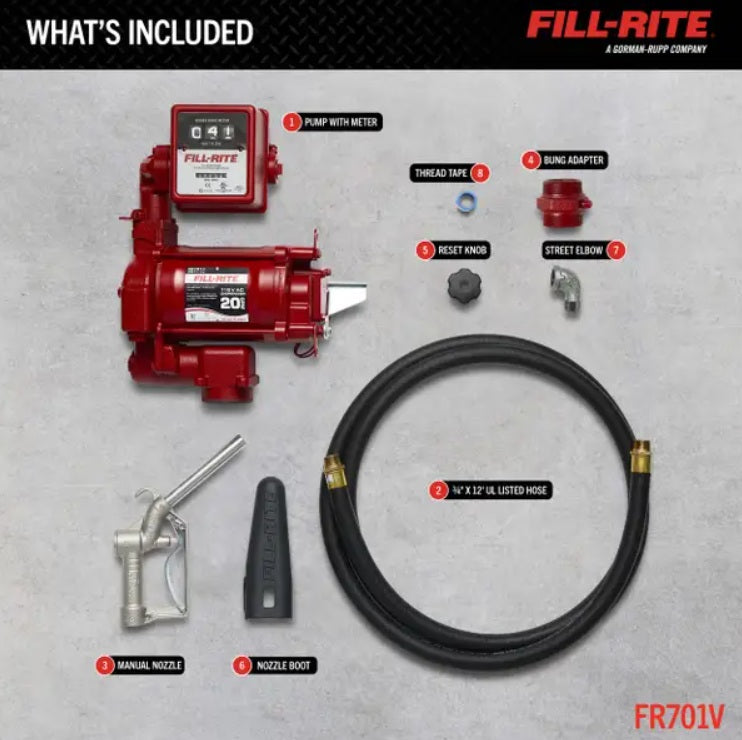

Pump and accessory bundle complete with meter, hose, nozzle and installation components
Construction: Cast-Iron
Additional Accessories: Nozzle Boot, Meter Reset Knob, PTFE Taper Roll, 3/4" NPT Street Elbow, Locking Nut, Fastener
Nozzle: 3/4" Cast Aluminum Manual Nozzle
Discharge Hose: 3/4" X 12' UL Listed Hose with Static Ground Wire
Max Flowrate: 20 GPM / 75 LPM
Power Type: 115V AC
Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Stoddard Solvents
Inlet Size Thread: 1.25" FNPT
Outlet Size Thread: 0.75" FNPT
Mounting Size / Thread / Type: 2" / NPT / Bung Mount
Duty Cycle (min): 30 min on / 30 min off
Motor Power (HP): 0.33
Max Current (A): 5.5 A
Thermal Protection Switch: Yes
Self-Priming: Yes
Suction Lift (ft.): 15'
Dry Vacuum (in. Hg): 12
Discharge Head (ft): 53'
Strainer Mesh Size (Micron): 40x40x.010"
Max Discharge Pressure (PSI): 23
Viscosity Range (cSt): 0.38 - 2.4
Accuracy (+/-%): 1%
Display Digits: 3
Display Type: Mechanical

• Cast-Iron Construction — heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
• High Performance — Fill-Rite’s trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling large equipment with fuel tanks sized at 20-80 gallons

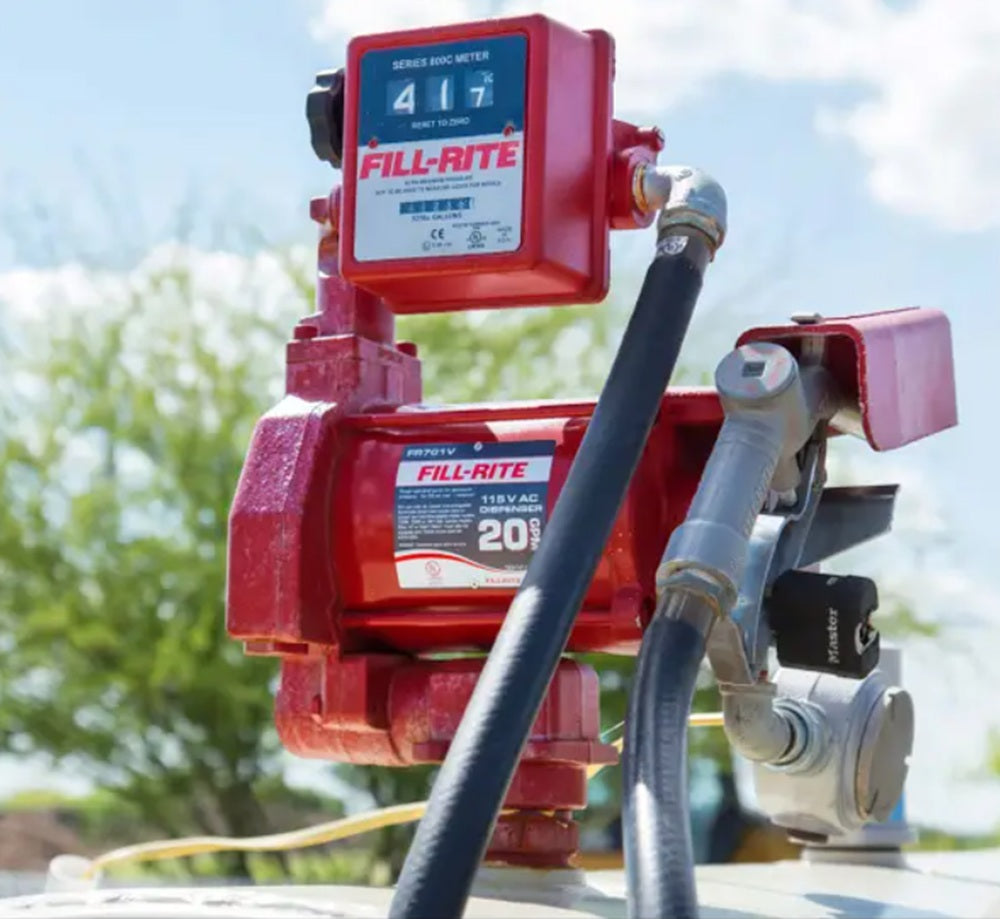

• Stationary Tanks — powered by a 115V AC motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks
• Reliable Technology — rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
• Long Life — thermally-protected motor prevents overheating, ensuring your pump performs for years without worry
• Equipment Safeguard — built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
• Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your investment
