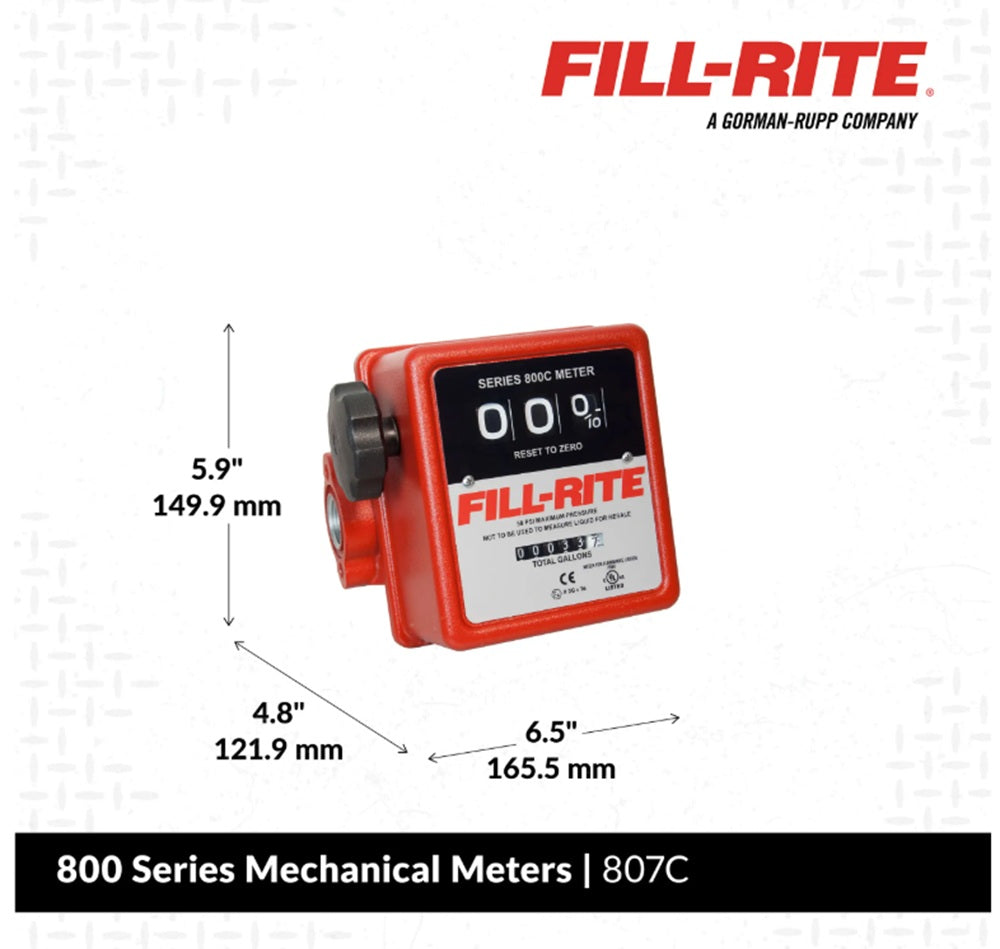

Fill Rite 5 to 20 GPM 3 Digit Cast Aluminum Mechanical Fuel Transfer Meter 3/4" FPT (Gallons) - 807C

Fill-Rite Cast Iron Mechanical Fuel Transfer Meter 5-20 GPM 3 Digit 3/4" FPT - 807C
3-digit mechanical fuel transfer meter
Additional Accessories: Meter Reset Knob
Flowrate Range (GPM): 5-20 GPM
Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Hexane
Inlet Size / Connection / Thread: 0.75" / Female / NPT
Outlet Size / Connection / Thread: 0.75" / Female / NPT
Operating Temperature Range (°F): -15 - 150°F / -26 - 66°C
Max Operating Pressure (PSI): 50
Accuracy (+/- %): 1 %
Repeatability (+/- %): 0.38 %
Display Type: Mechanical
Display Digits: 3
Power Source: Mechanical
Totalizer: Yes
Pulse Output: No

Versatile Technology - designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters
Cast-Aluminum Construction - built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
Extreme Accuracy - measures fuel within +/- 1% accuracy, ensuring your record-keeping is precise as possible
Low-Volume Applications - 3-digit counter registers flow rates between 5-20 GPM and up to 99.9 gallons per batch, perfect for equipment with small fuel tanks
Lifetime Tracking - 5-digit non-resettable counter tracks total volume transferred over lifetime of meter
Fluid Compatibility - designed for daily use with diesel, gasoline, kerosene, mineral spirits, heptane, hexane
