Hypro Hydraulic Centrifugal Pump 82 GPM 84 PSI Polypropylene HM4C - 9303P-HM4C

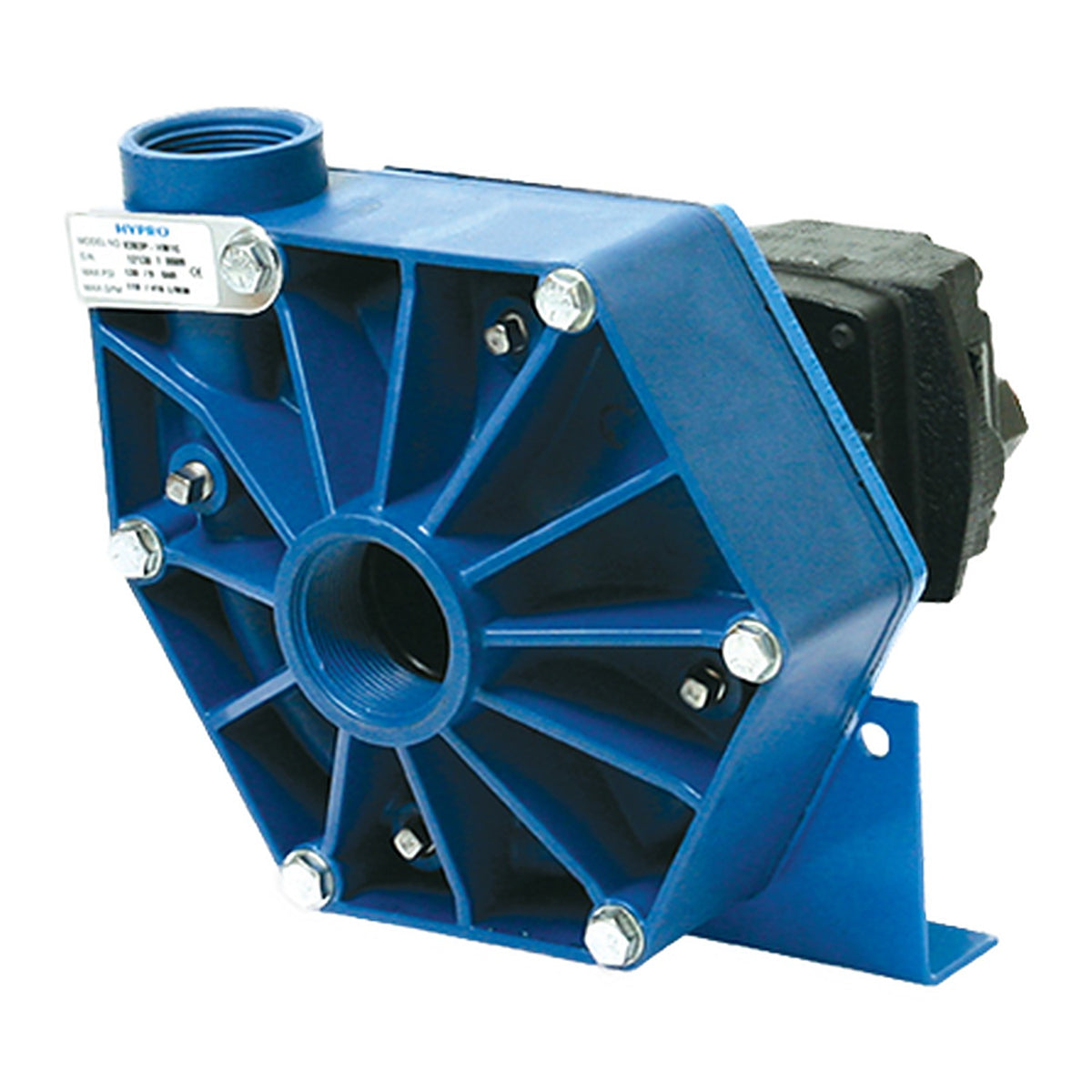

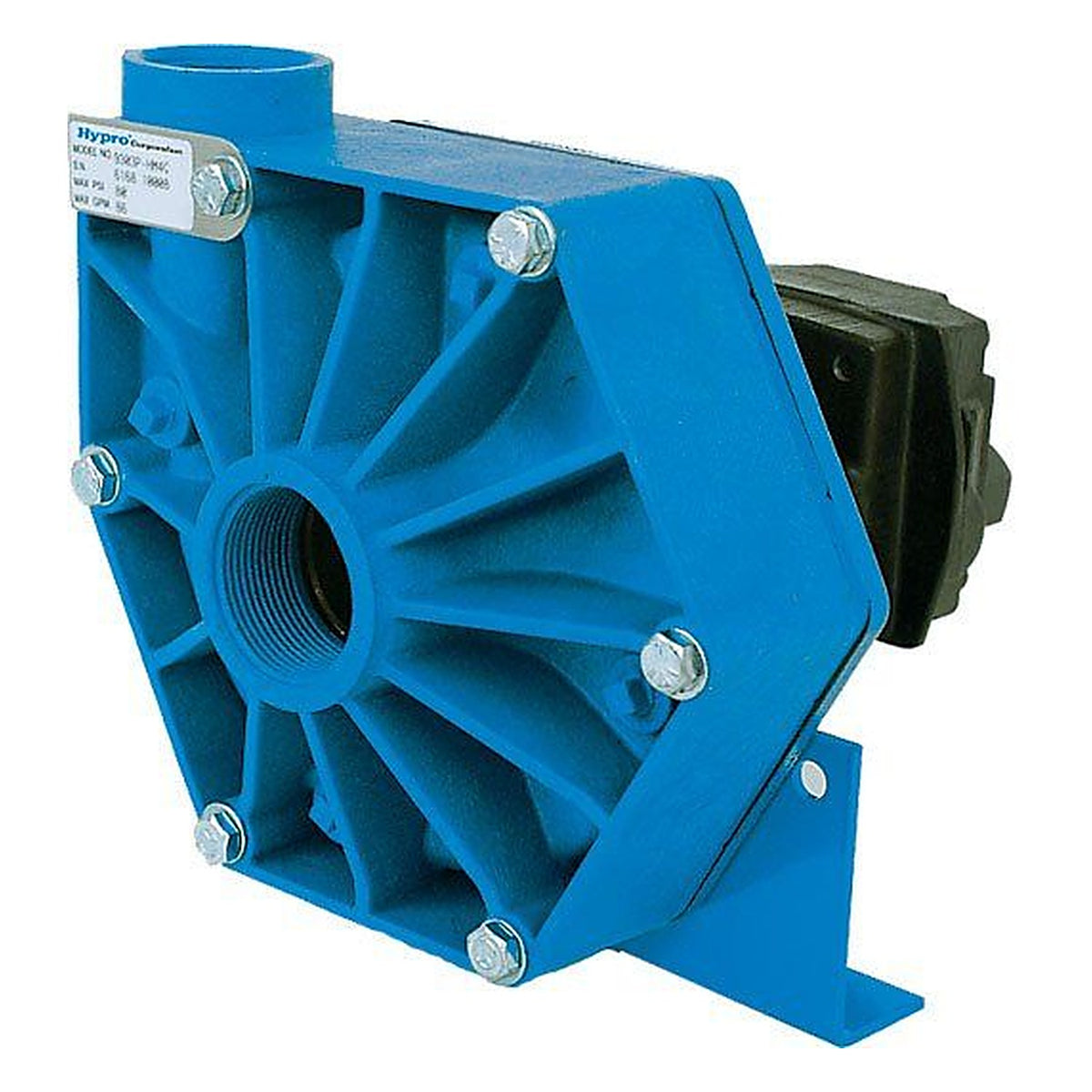

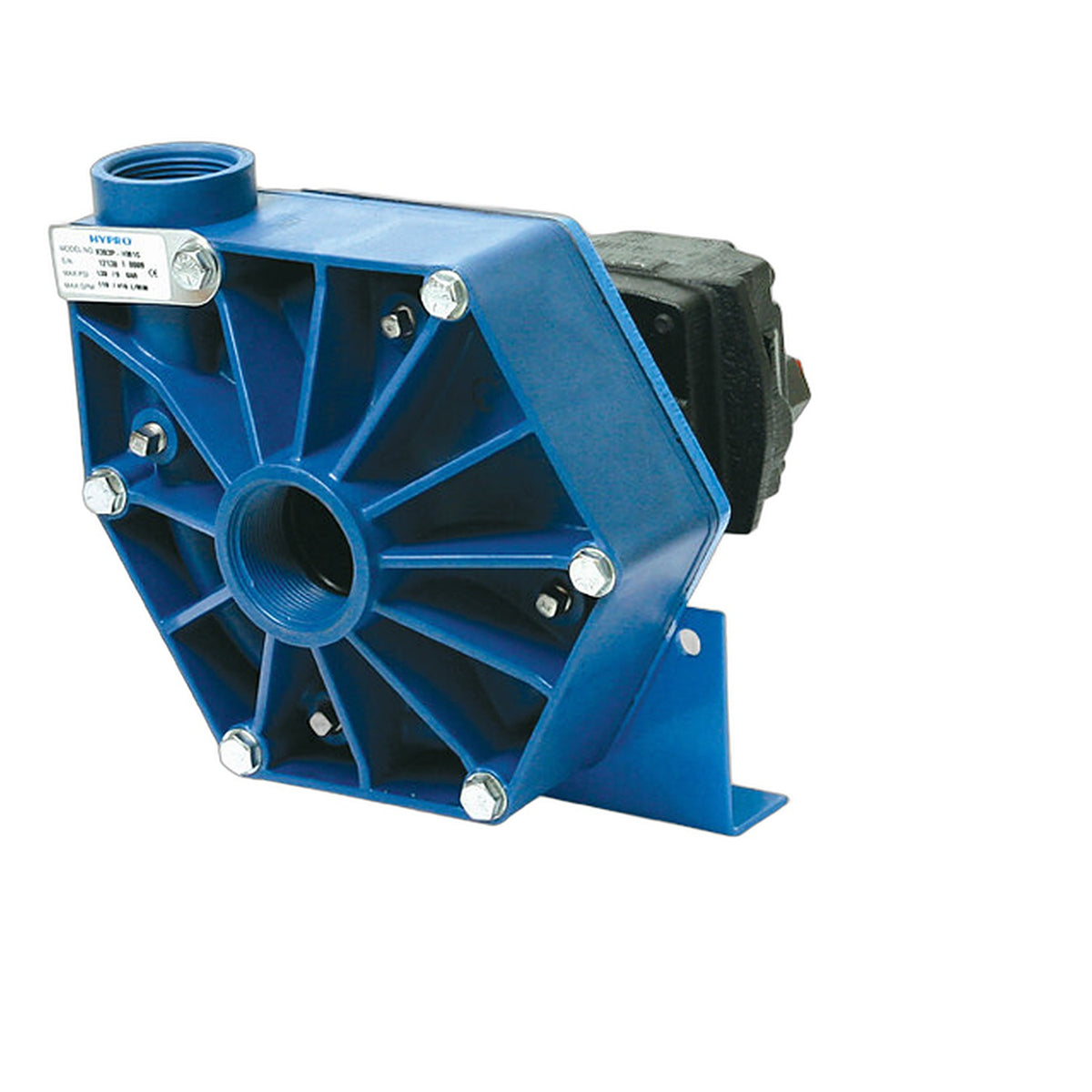

Genuine Hypro 9303P-HM4C Hydraulic-Driven Polypropylene Centrifugal Pump

Genuine Hypro (Pentair) 9303P Series centrifugal pump with an HM4C internal-gear gerotor hydraulic motor. Its close-coupled design integrates with the tractor or sprayer's hydraulic system, leaving the PTO available for other equipment.

Designed for agricultural and industrial spraying and liquid transfer, this pump features a polypropylene housing and impeller. Applications include water, compatible insecticides, herbicides, wettable powders, emulsives, and liquid fertilizers. Verify compatibility with the specific chemical, concentration, and operating temperature before use, particularly with acids or other highly corrosive liquids.

Specifications

Model: 9303P-HM4C
Drive: HM4C internal-gear gerotor hydraulic motor
Hydraulic system compatibility: Open-center, closed-center, and load-sensing systems
Maximum pump flow: 82 GPM (310 L/min)
Maximum pump pressure: 84 PSI
Maximum hydraulic flow: 7 GPM (26.5 L/min)
Maximum motor pressure: 3,000 PSI (207 bar)
Maximum fluid temperature: 140°F (60°C)
Net weight: 21 lb (9.5 kg)

Construction
Pump housing: Polypropylene
Impeller: Polypropylene
Standard pump seal: Viton/ceramic
Optional pump seal: Life Guard silicon carbide
Hydraulic motor seal option: Double-lip Teflon seal with case drain

Connections
Pump inlet: 1-1/2-inch NPT
Pump outlet: 1-1/4-inch NPT
Hydraulic inlet: 1/2-inch NPT
Hydraulic outlet: 3/4-inch NPT
