Simpson Farm Grain Applicator Kit With 115 Volt Pump, Fittings, and Nozzles - GA5

Simpson Farm Grain Applicator Kit With 115 V Pump, Fittings, And Nozzles - GA5
Applicator for various grain products
Treats up to 12,000 bushel per hour

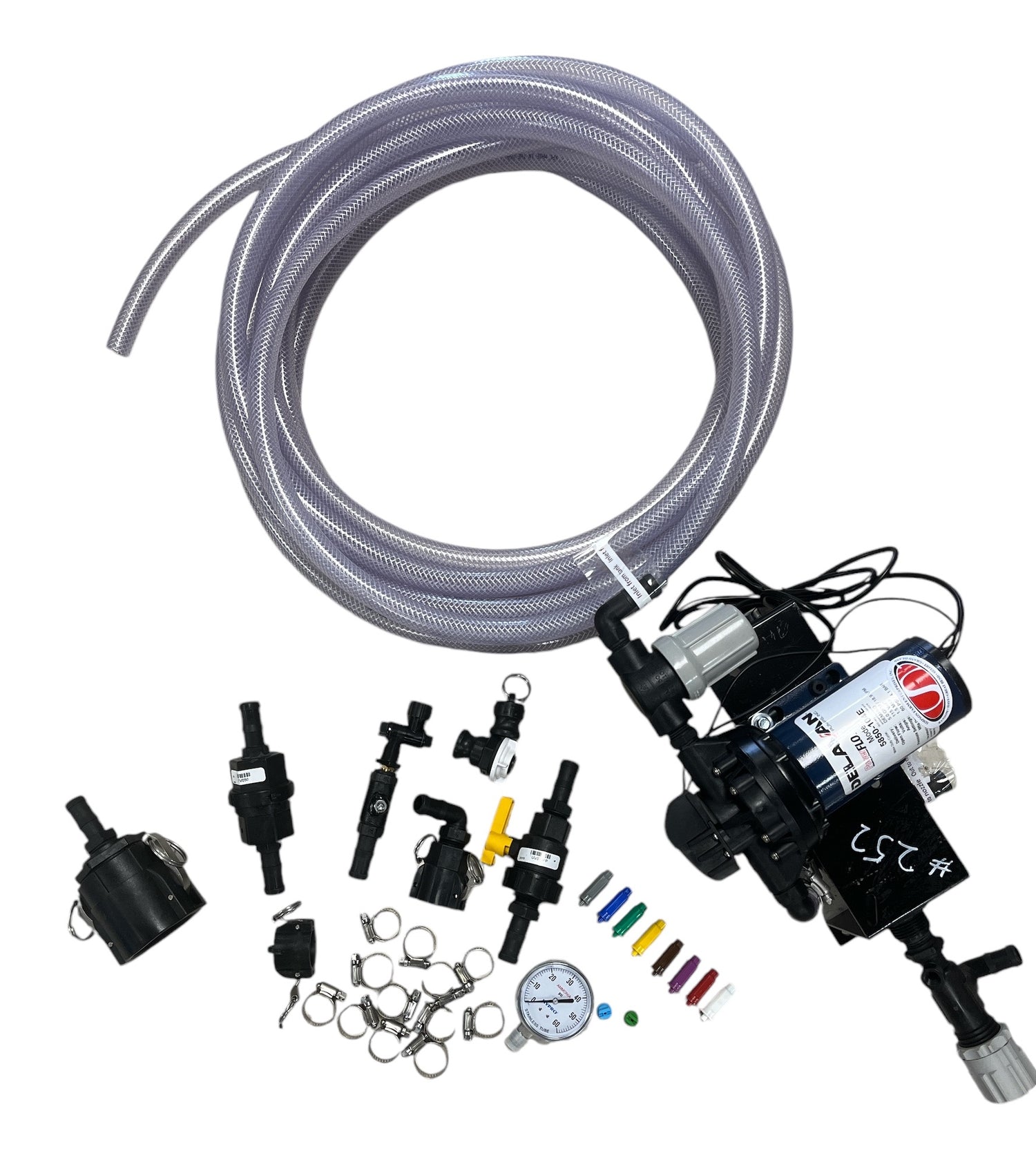

Includes:

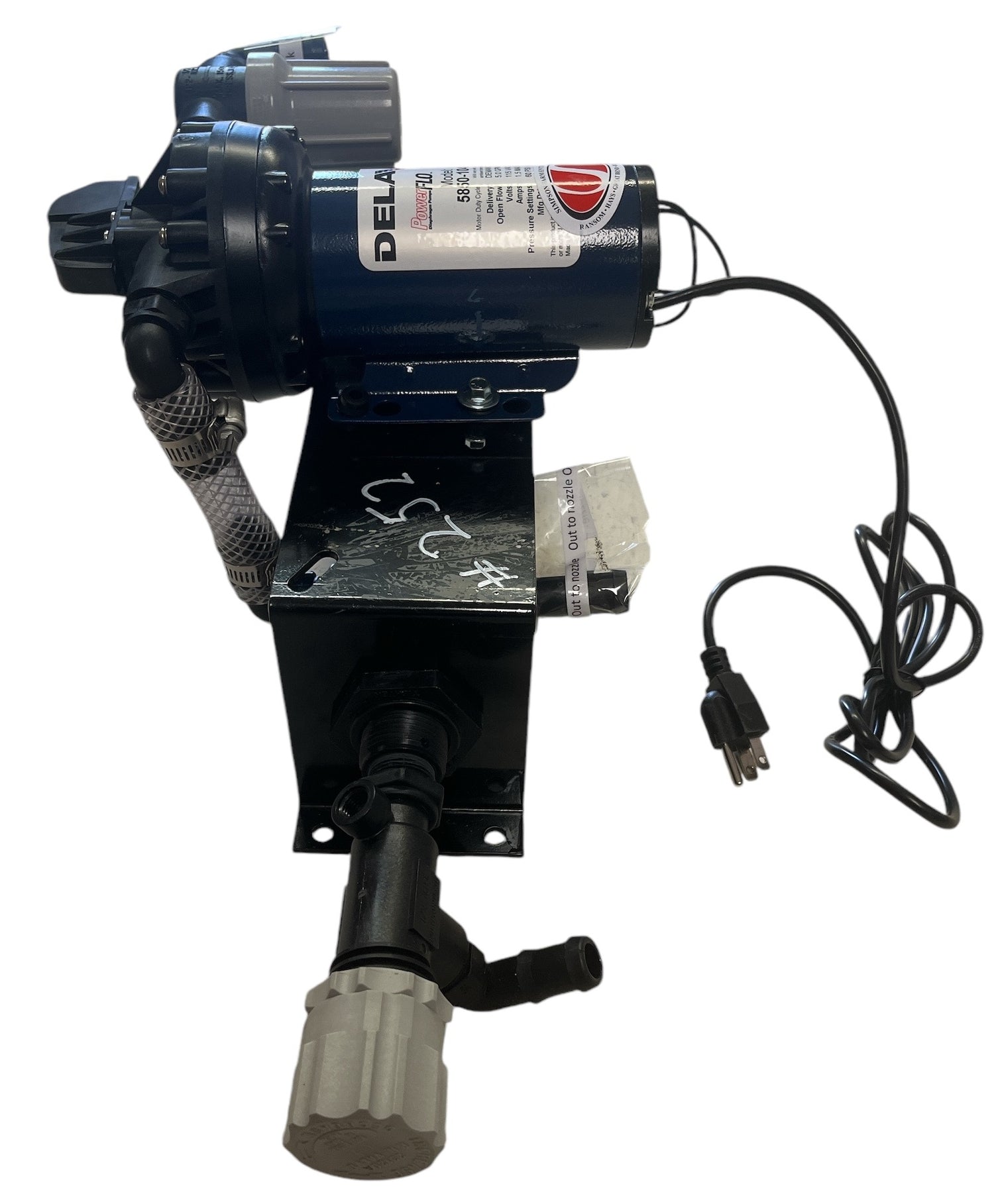

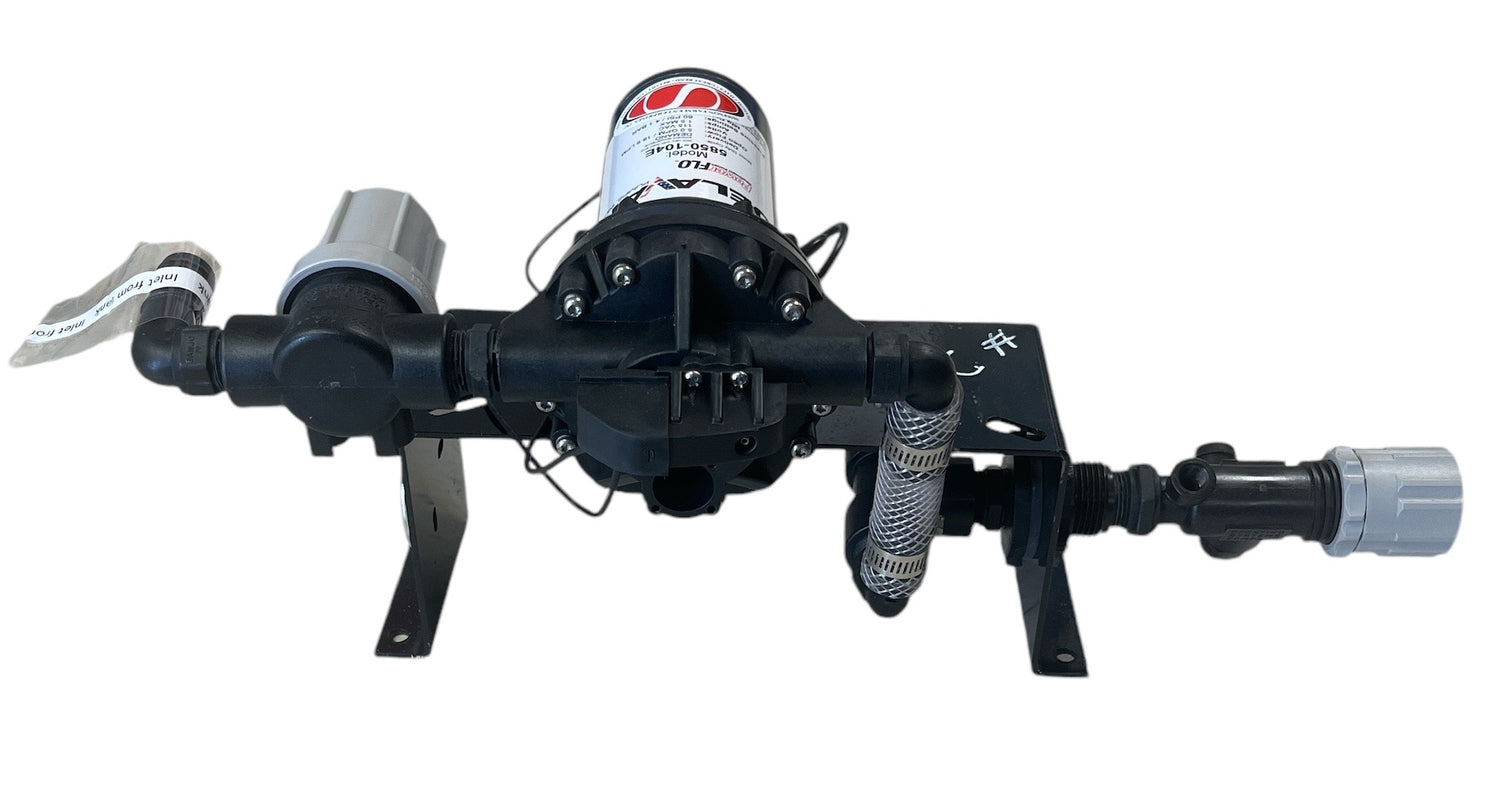

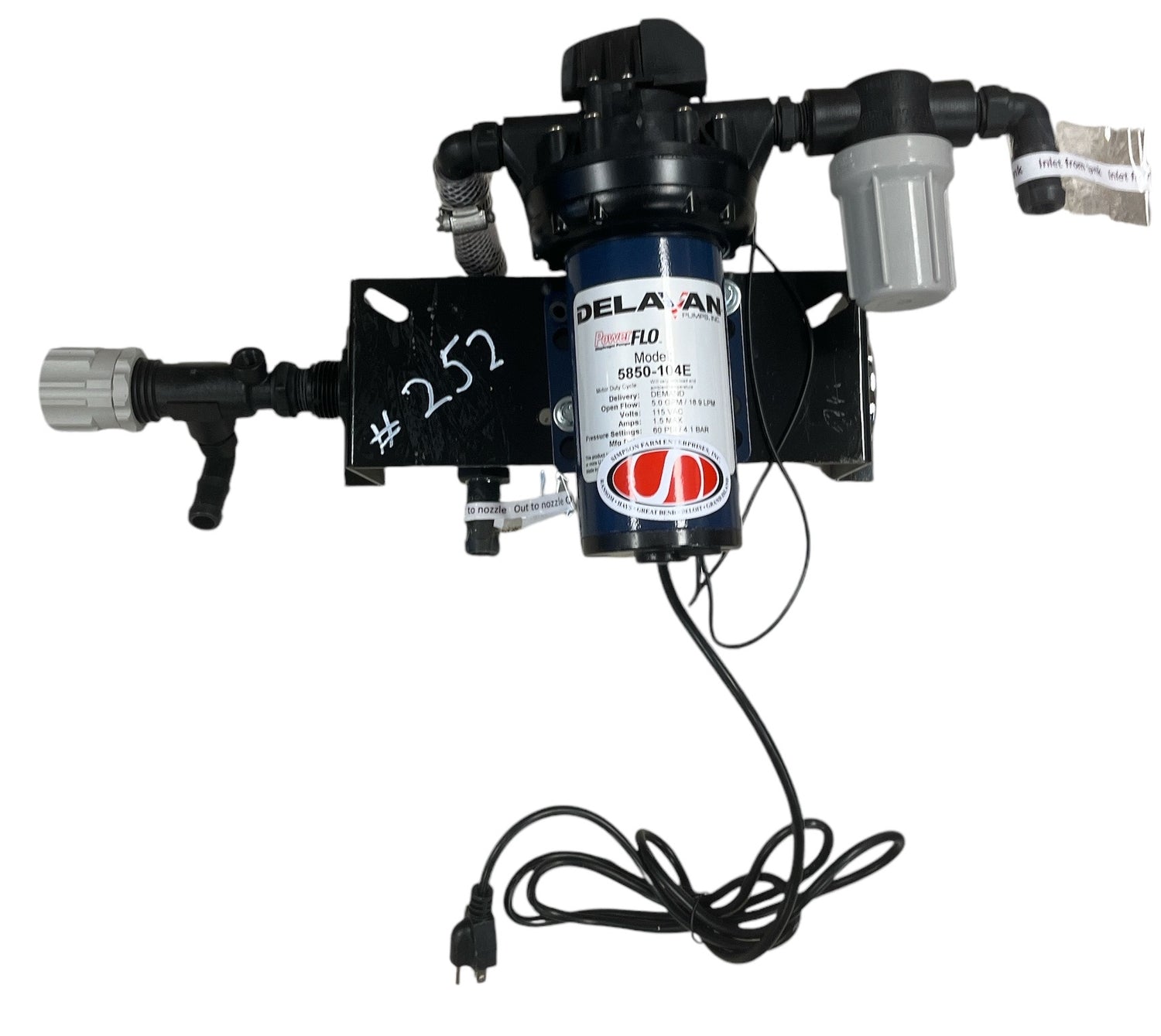

115 V Delavan Pump (5050-104E)
Pressure Regulator (TeeJet Spraying Systems 23120)

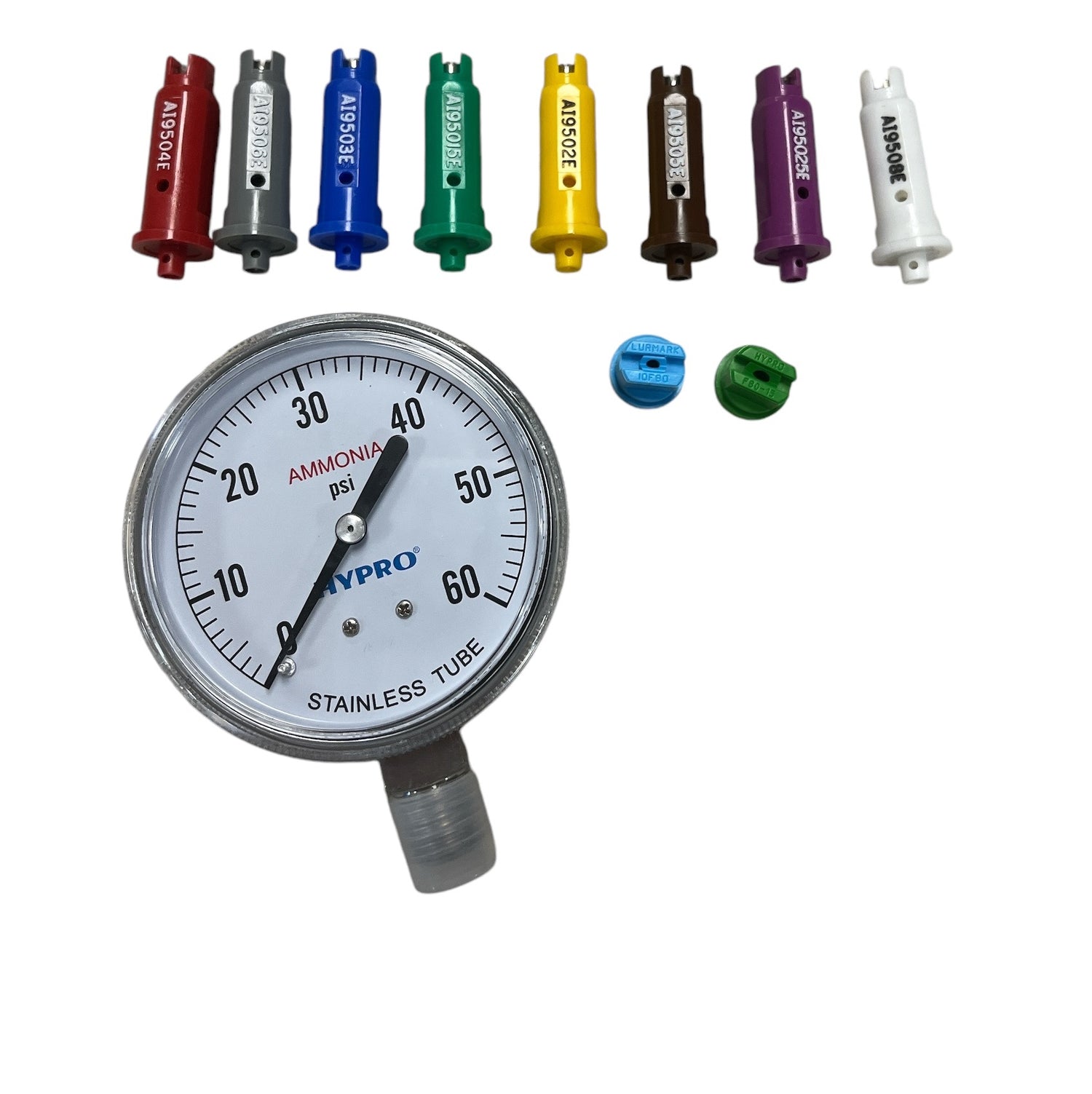

Pressure Gauge (Hypro ASG60)

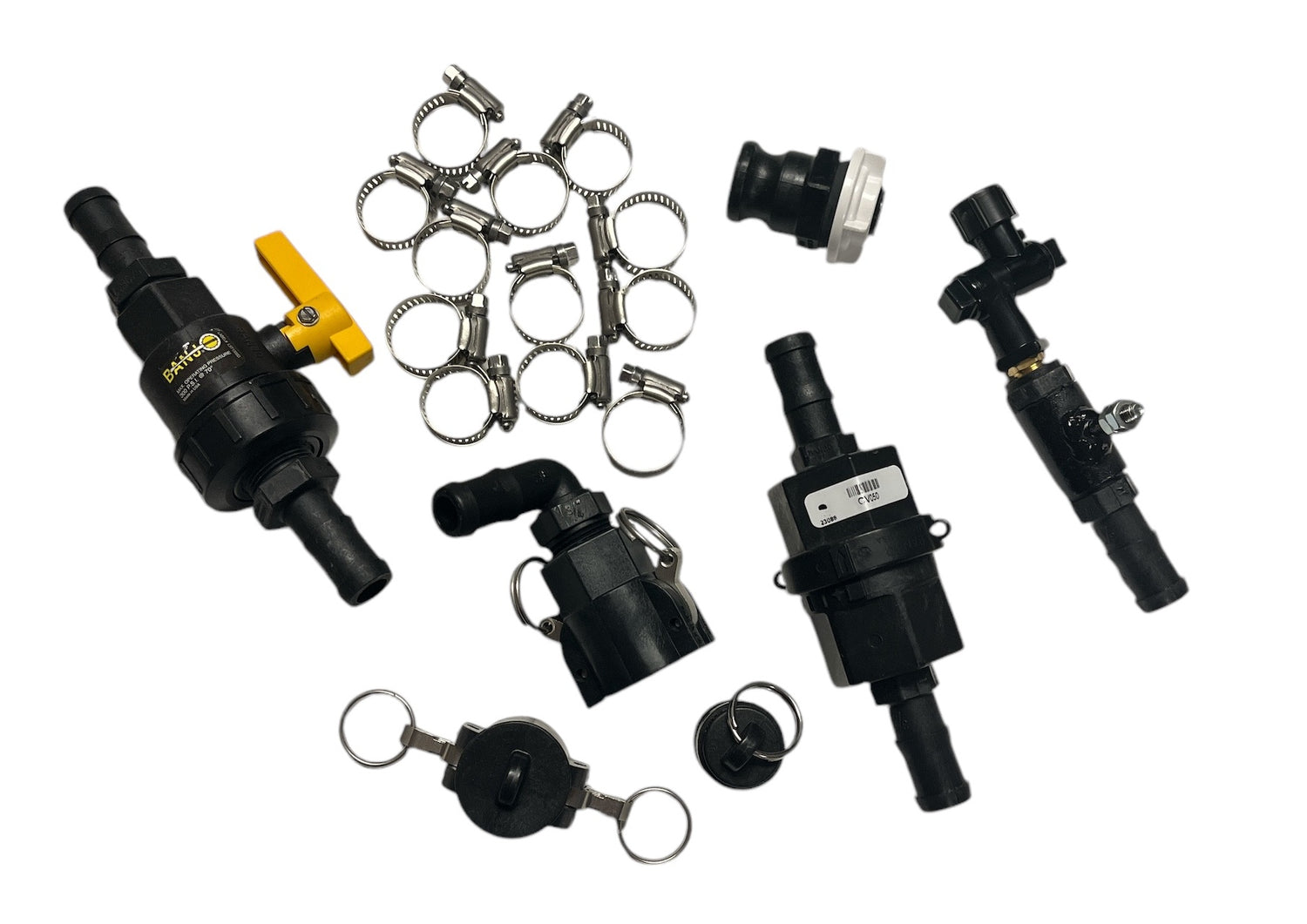

Banjo Plumbing Fittings
TeeJet Nozzles
Banjo Shut-Off Valve
Hose
Clamps

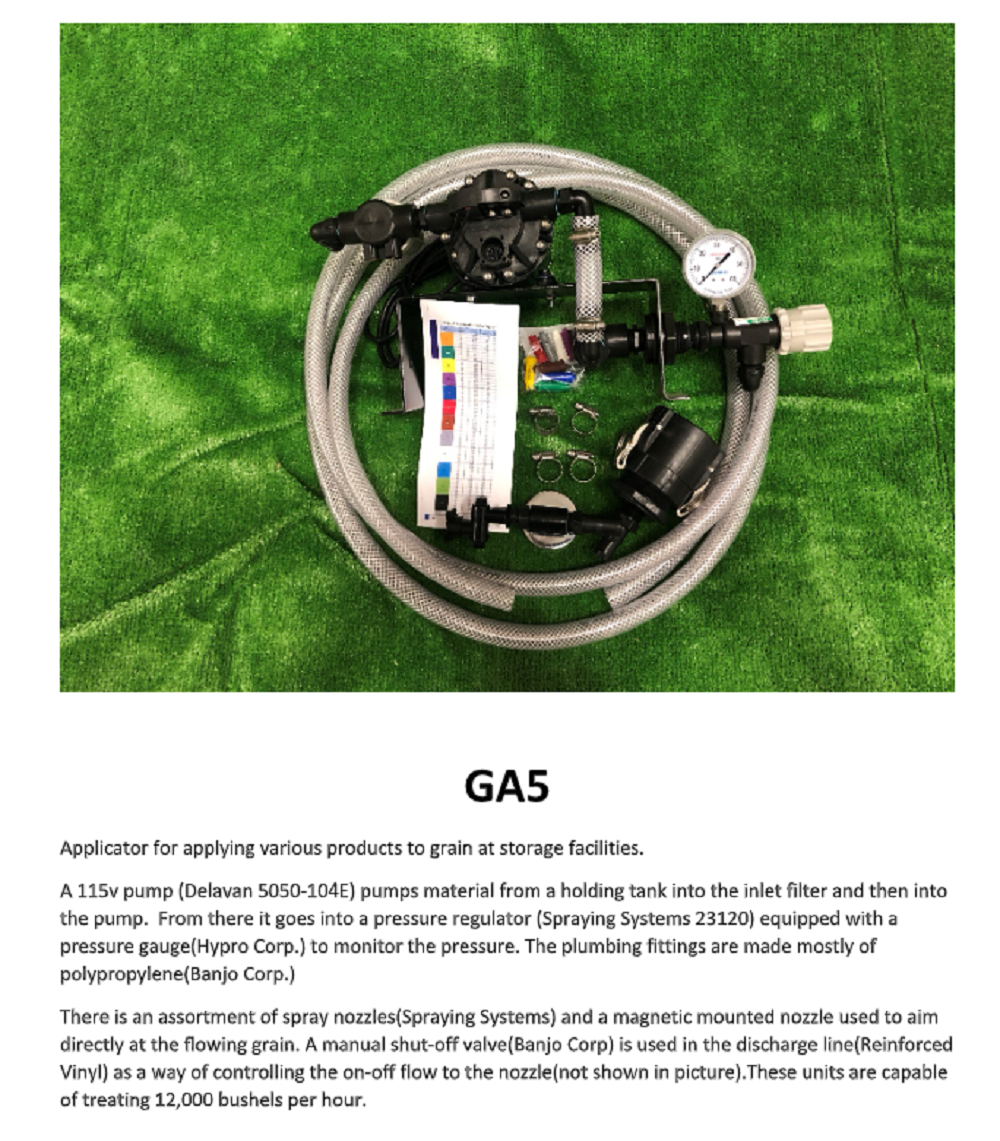

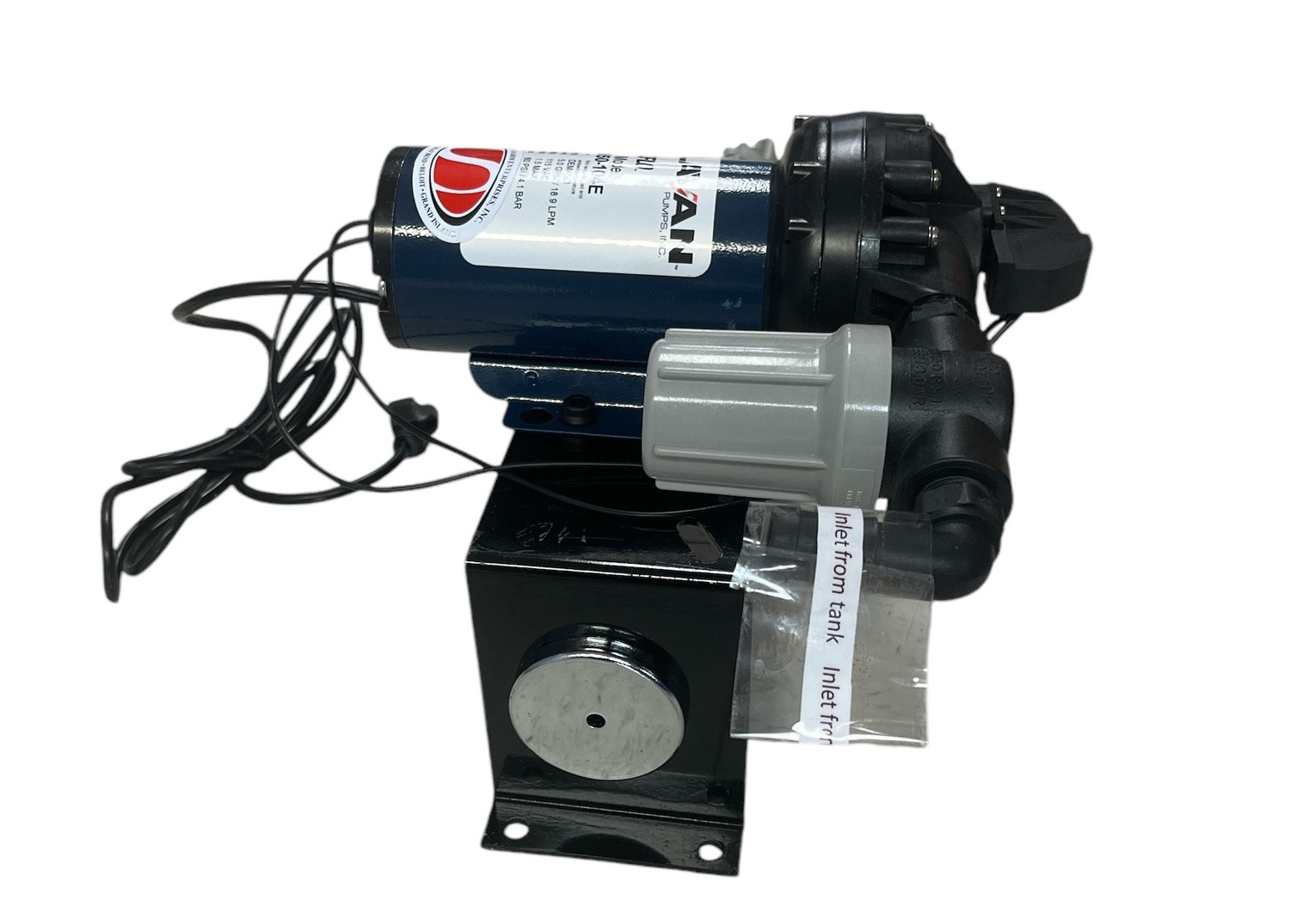

A 115v pump (Delavan 5050-104E) pumps material from a holding tank into the inlet filter and then into
the pump. From there it goes into a pressure regulator (Spraying Systems 23120) equipped with a
pressure gauge (Hypro Corp.) to monitor the pressure. The plumbing fittings are made mostly of
polypropylene (Banjo Corp.)

There is an assortment of spray nozzles (Spraying Systems) and a magnetic mounted nozzle used to aim
directly at the flowing grain. A manual shut-off valve (Banjo Corp) is used in the discharge line (Reinforced
Vinyl) as a way of controlling the on-off flow to the nozzle (not shown in picture). These units are capable
of treating 12,000 bushels per hour.
